Description

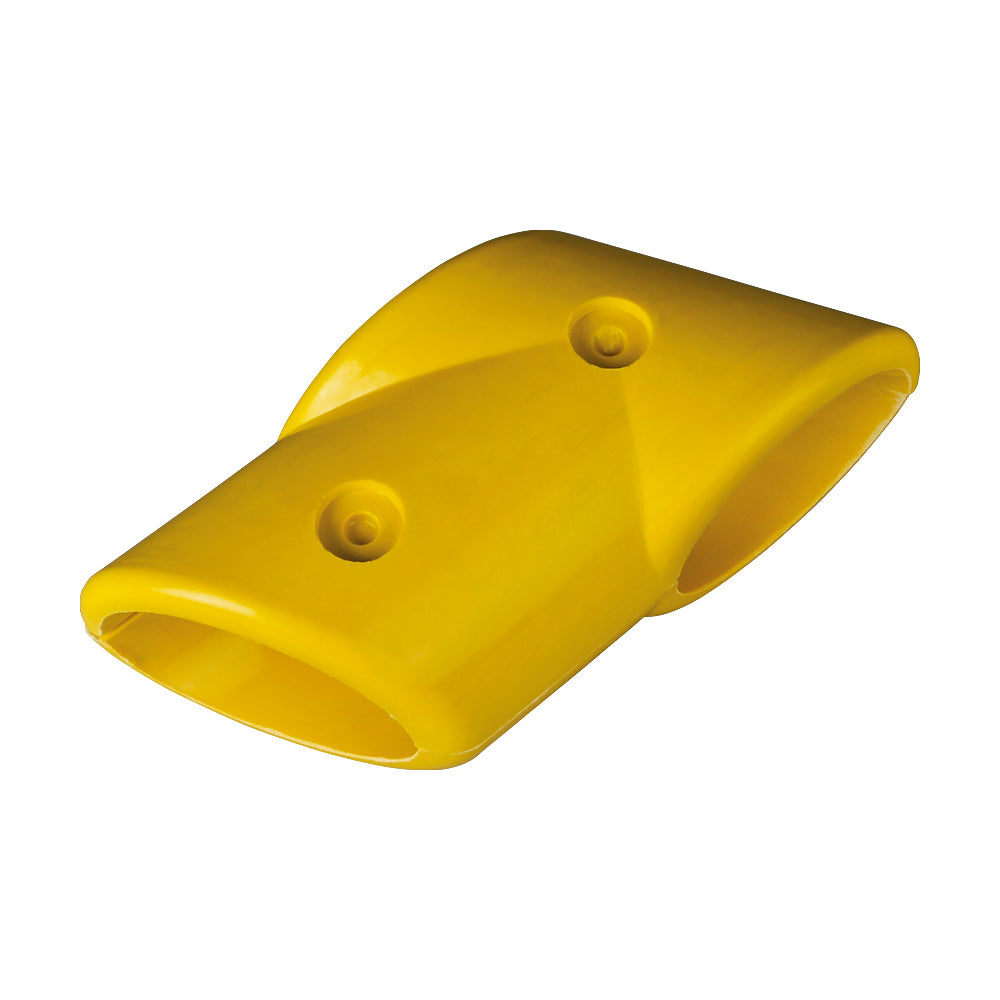

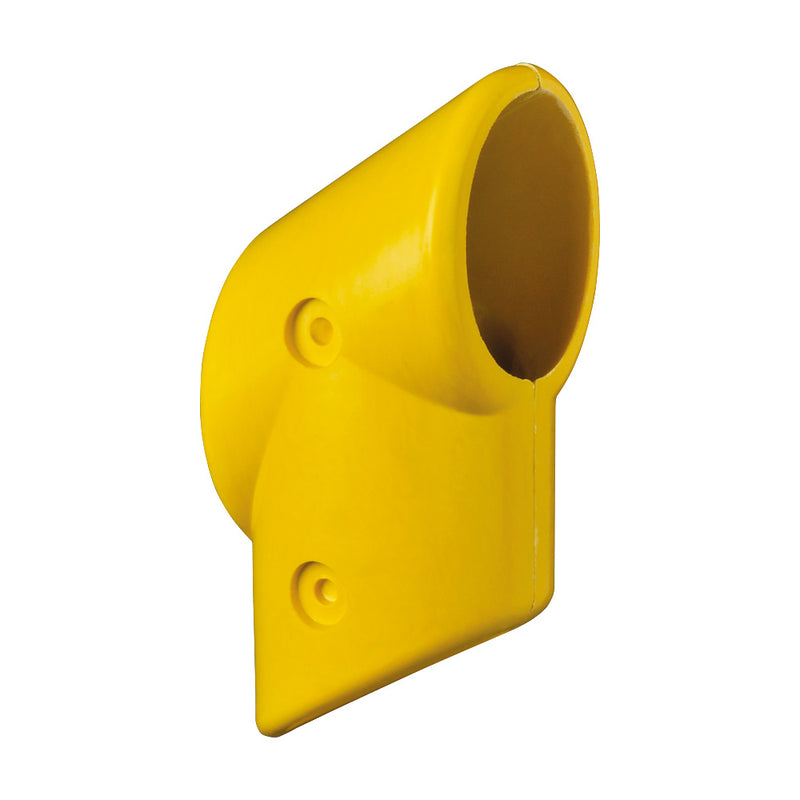

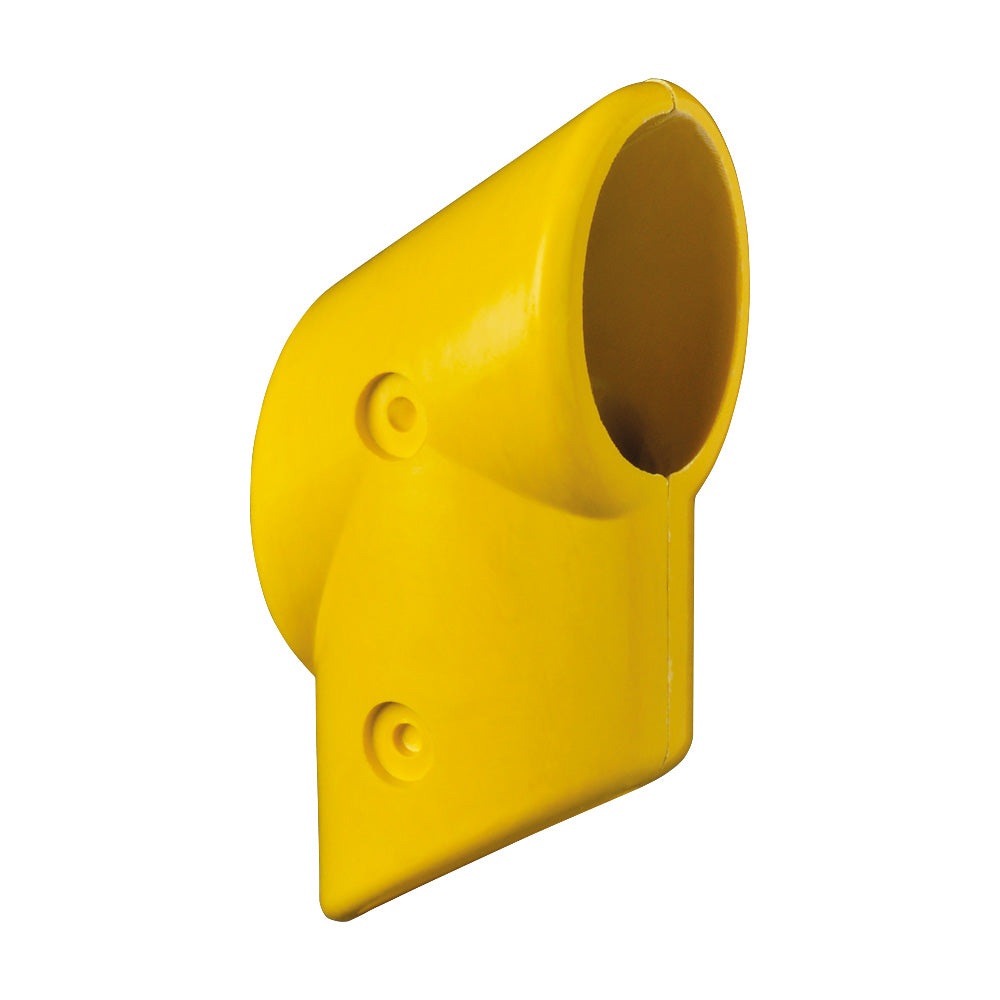

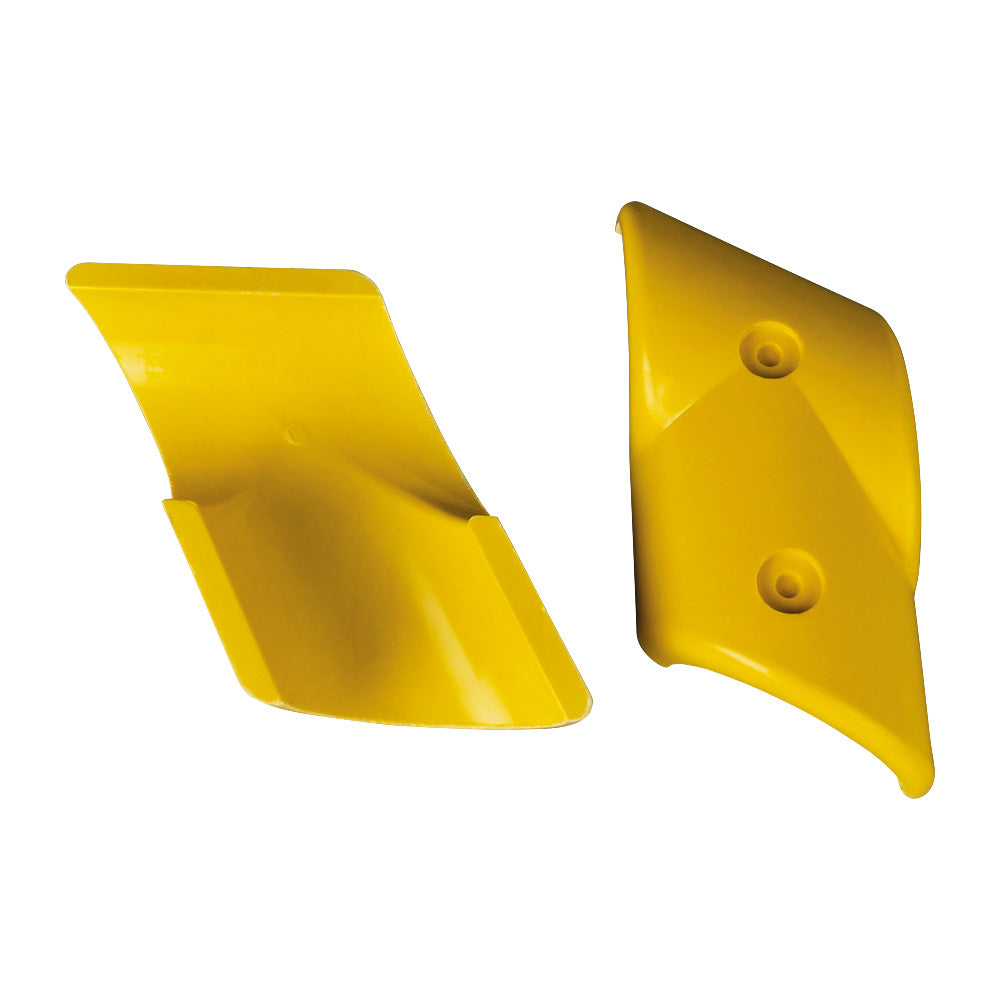

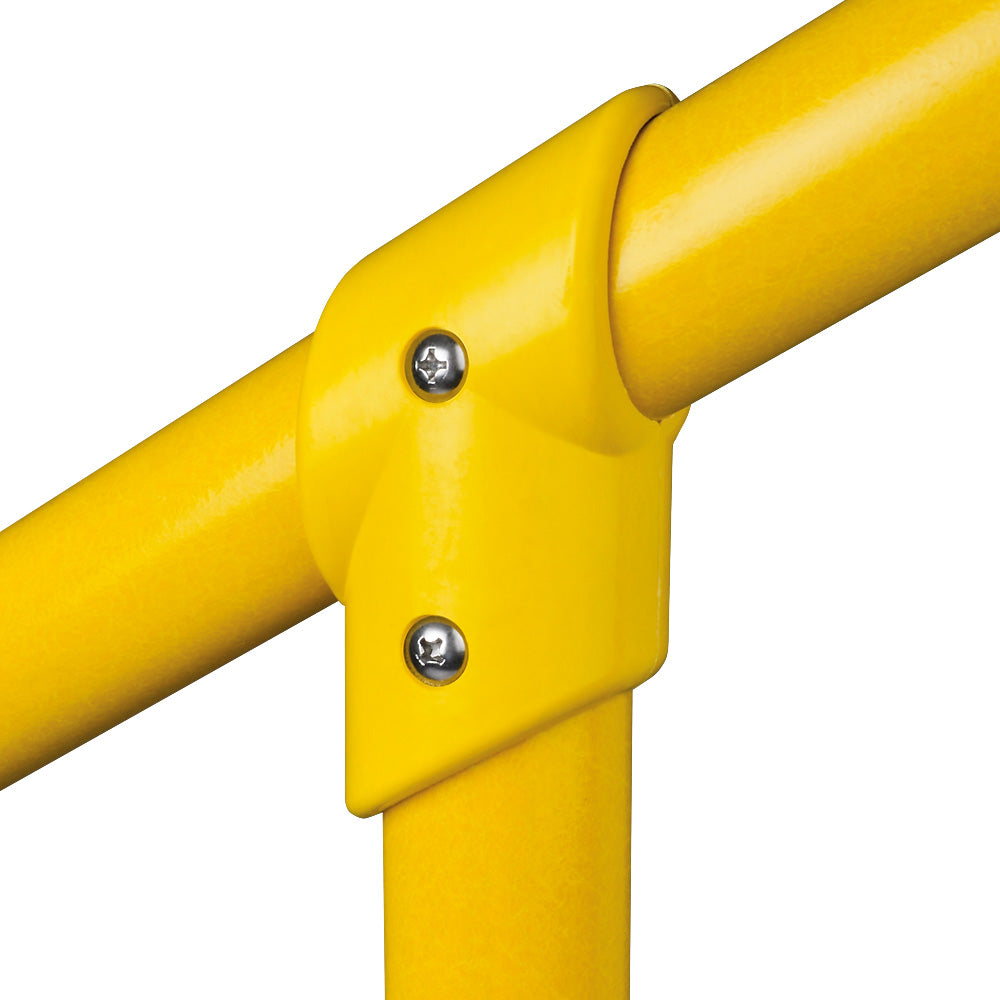

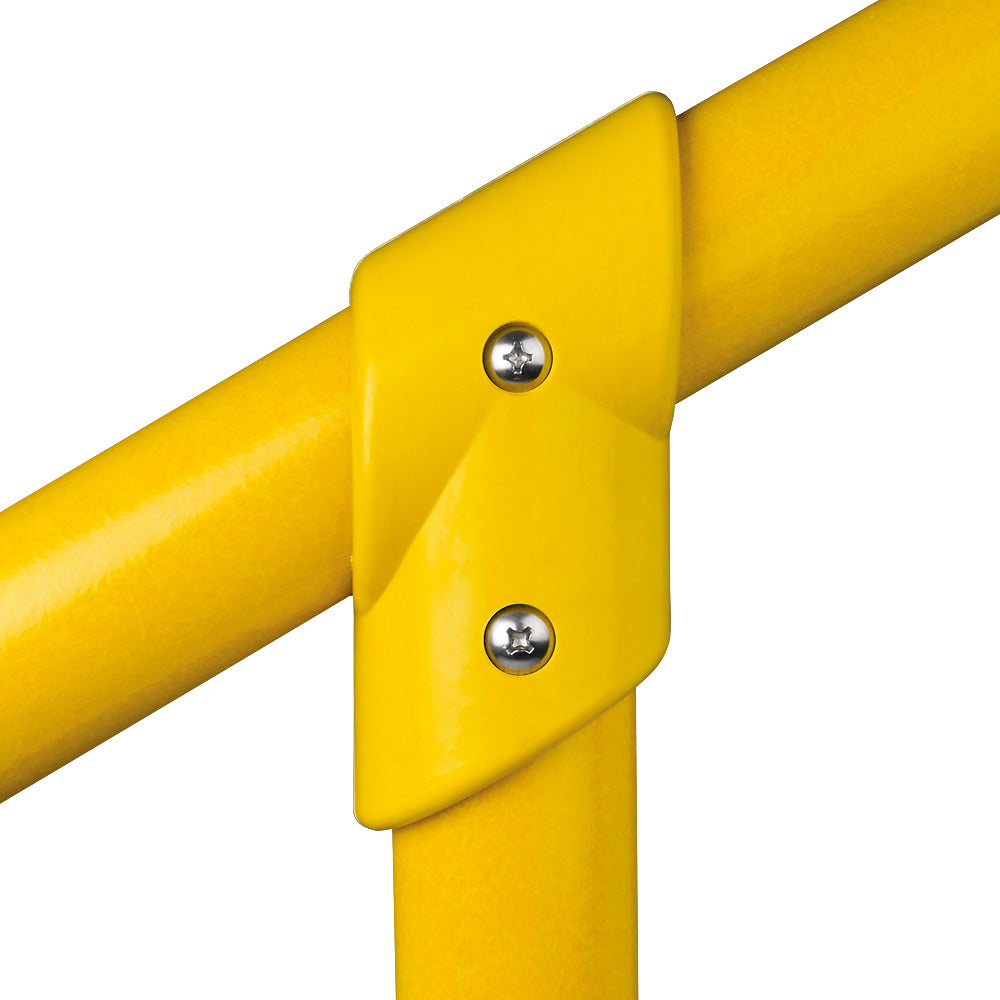

GRP Handrail Fitting 60° Short Tee.

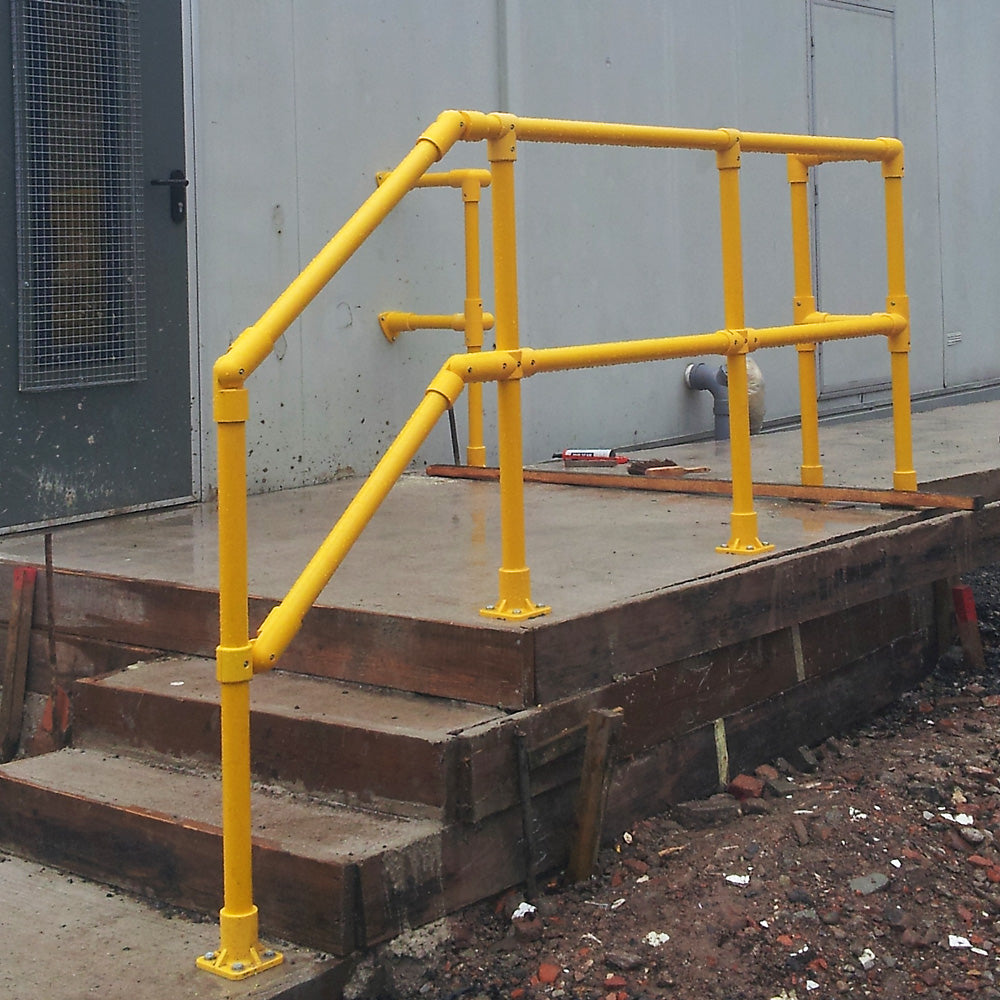

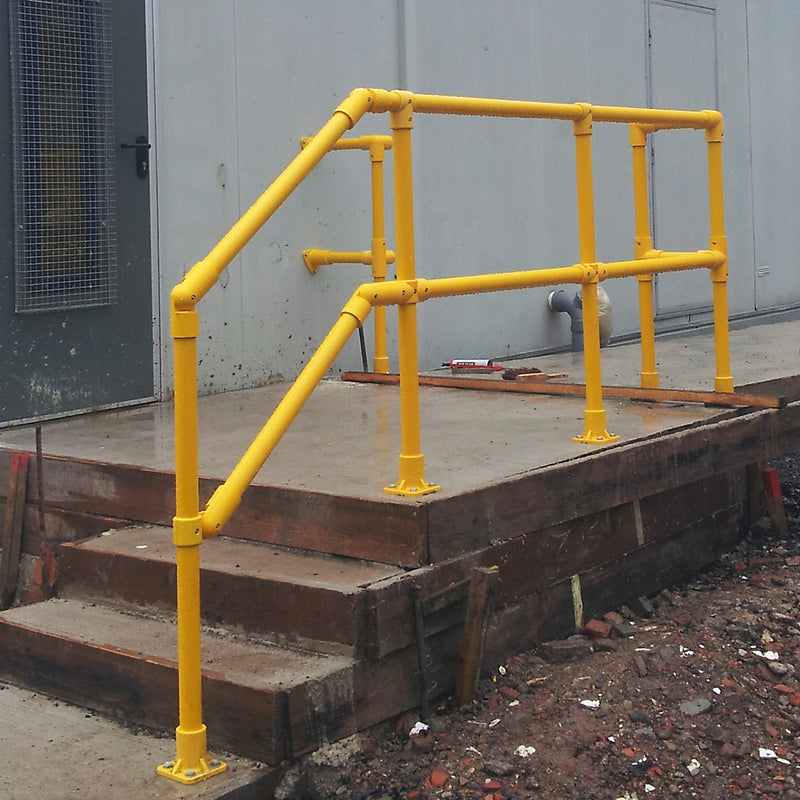

Used to make a connection of the handrail tube to the stanchion post at 30Deg – standard angle (slope) for stairs. Can also be used to join the stanchion post at the end of stairs to the knee rail tube.
The stanchion post must be cut to 60Deg angle to enable the tube to fully insert and be fixed into position. It is not recommended to use this fitting to join lengths of handrail tube, use the tubular spigot joint.
This item requires 2 x FH300 fixings, sold separately.
Specifications
weight: 0.25 kg
length: 155.0mm
width: 64.0mm
depth: 53.0mm
material: GRP
suit tube: 50mm
