Description

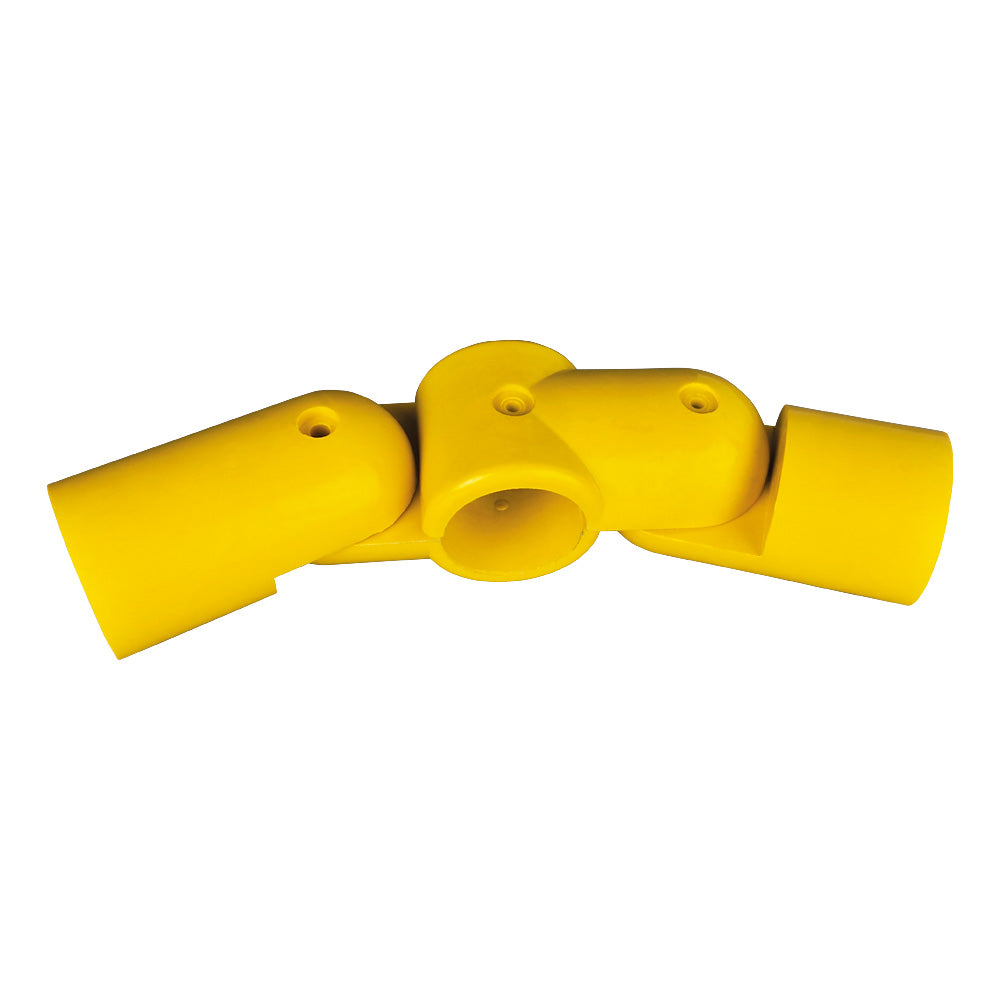

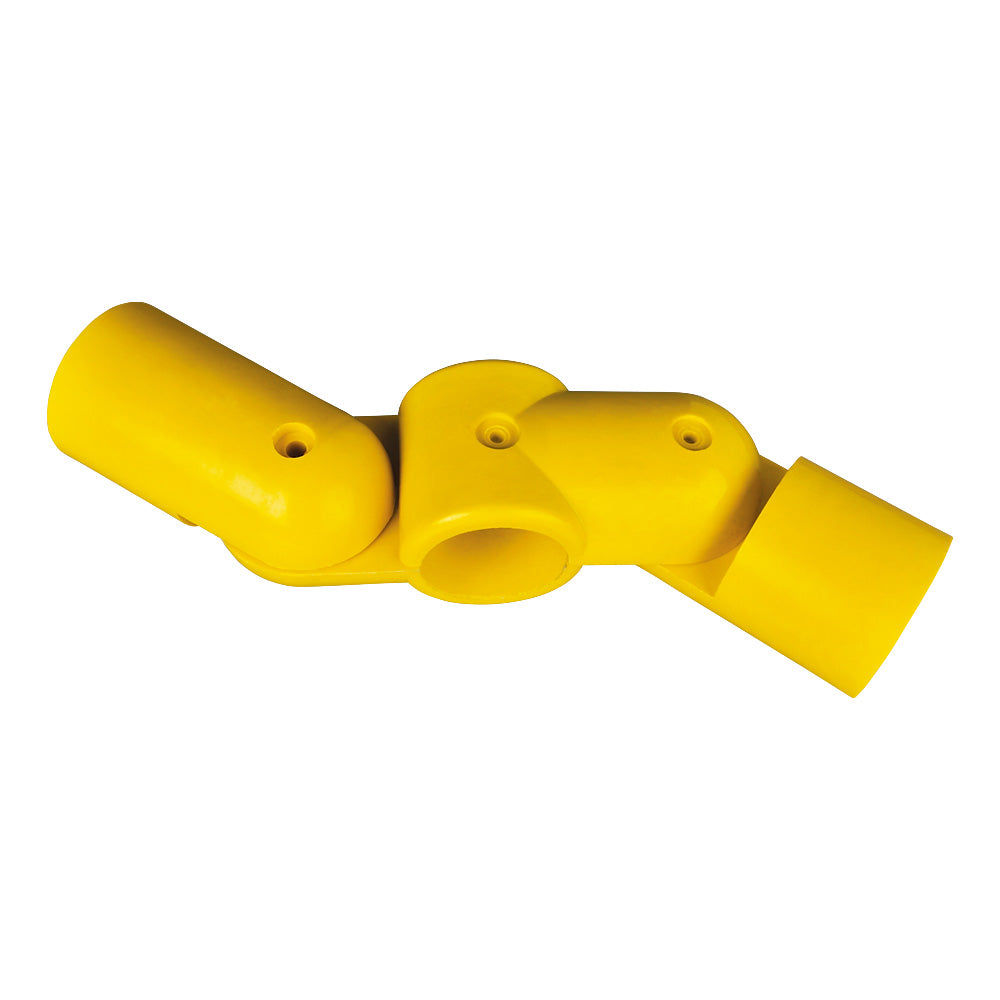

GRP Handrail Fitting Universal 4 Way.

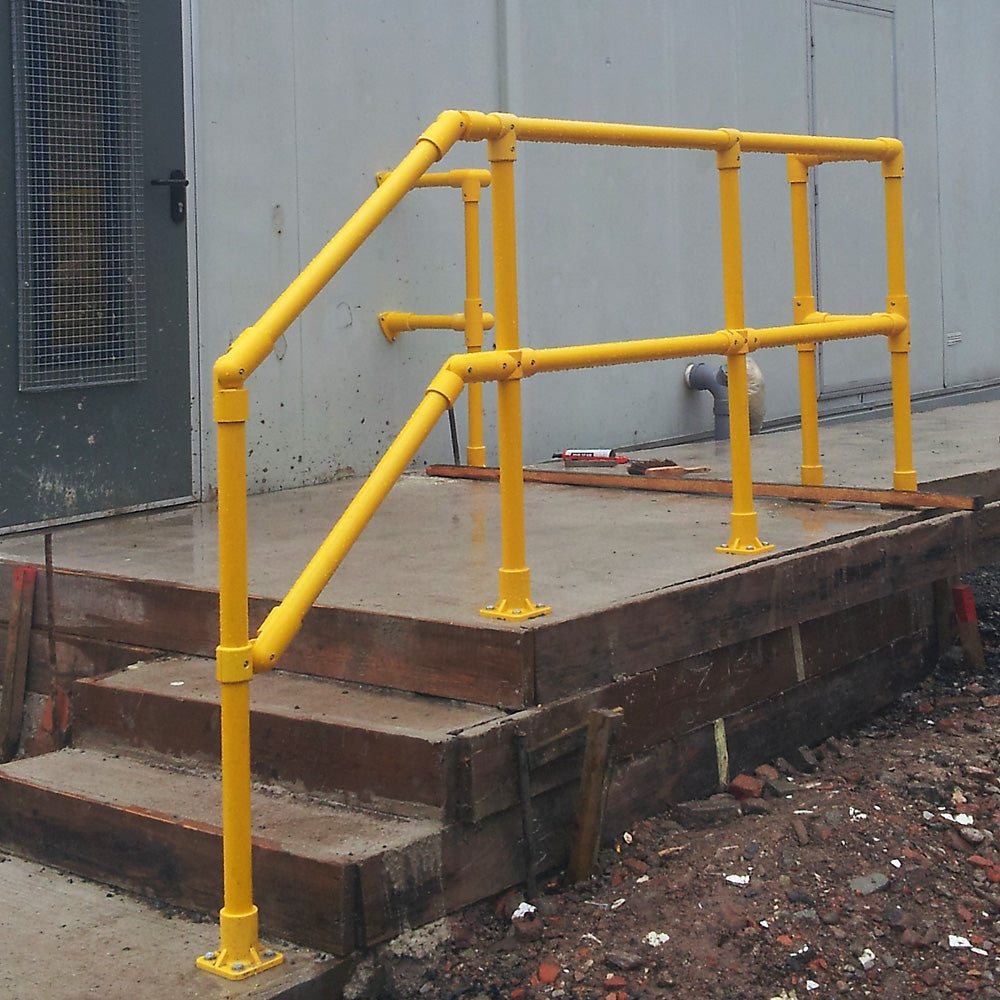

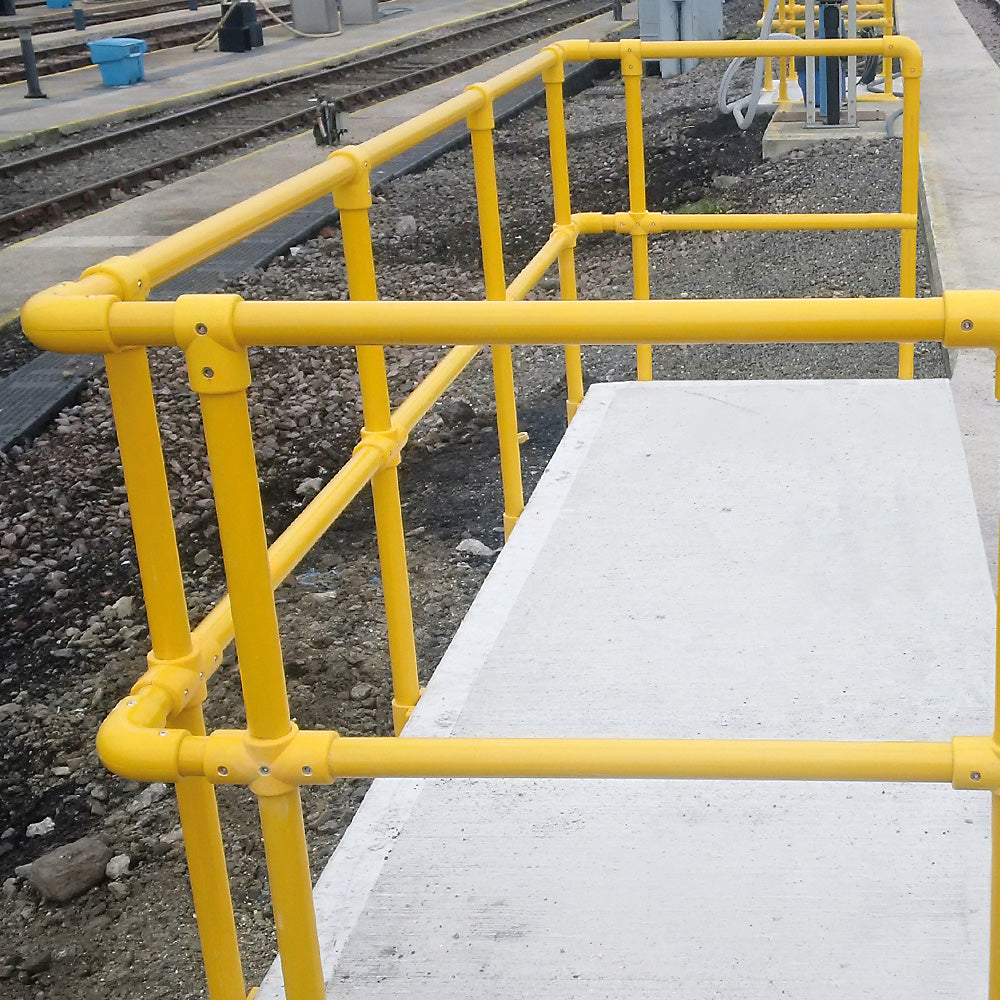

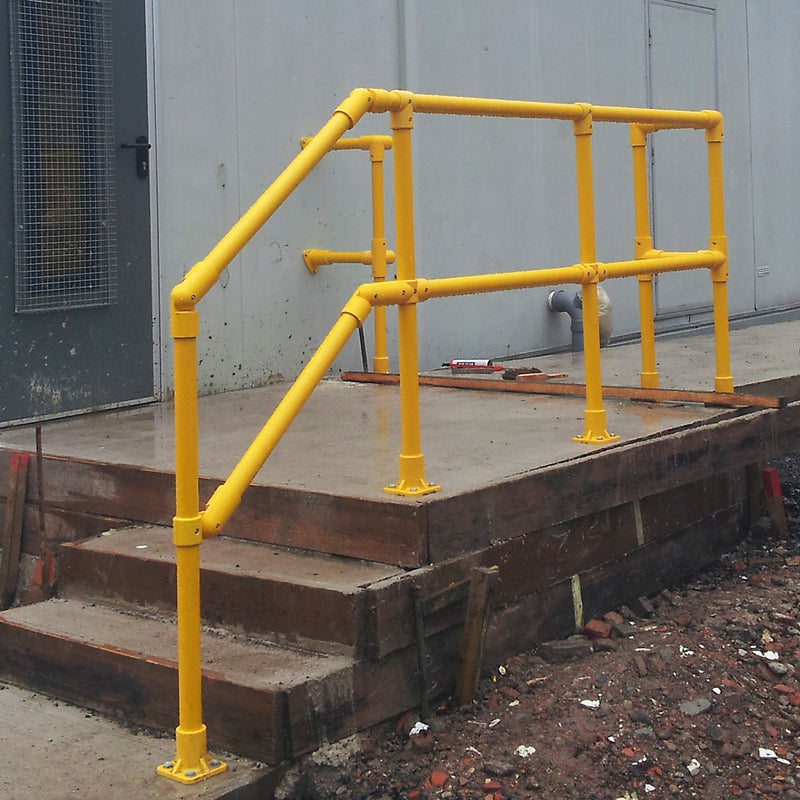

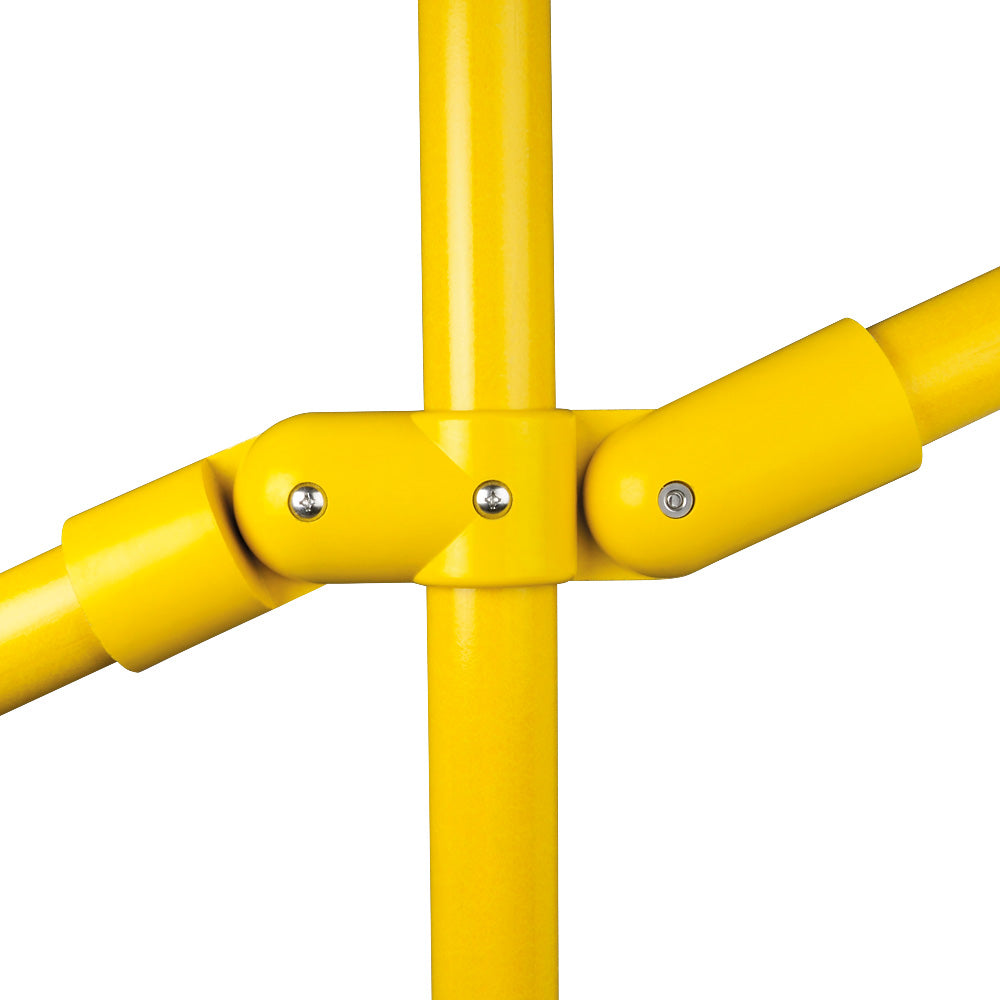

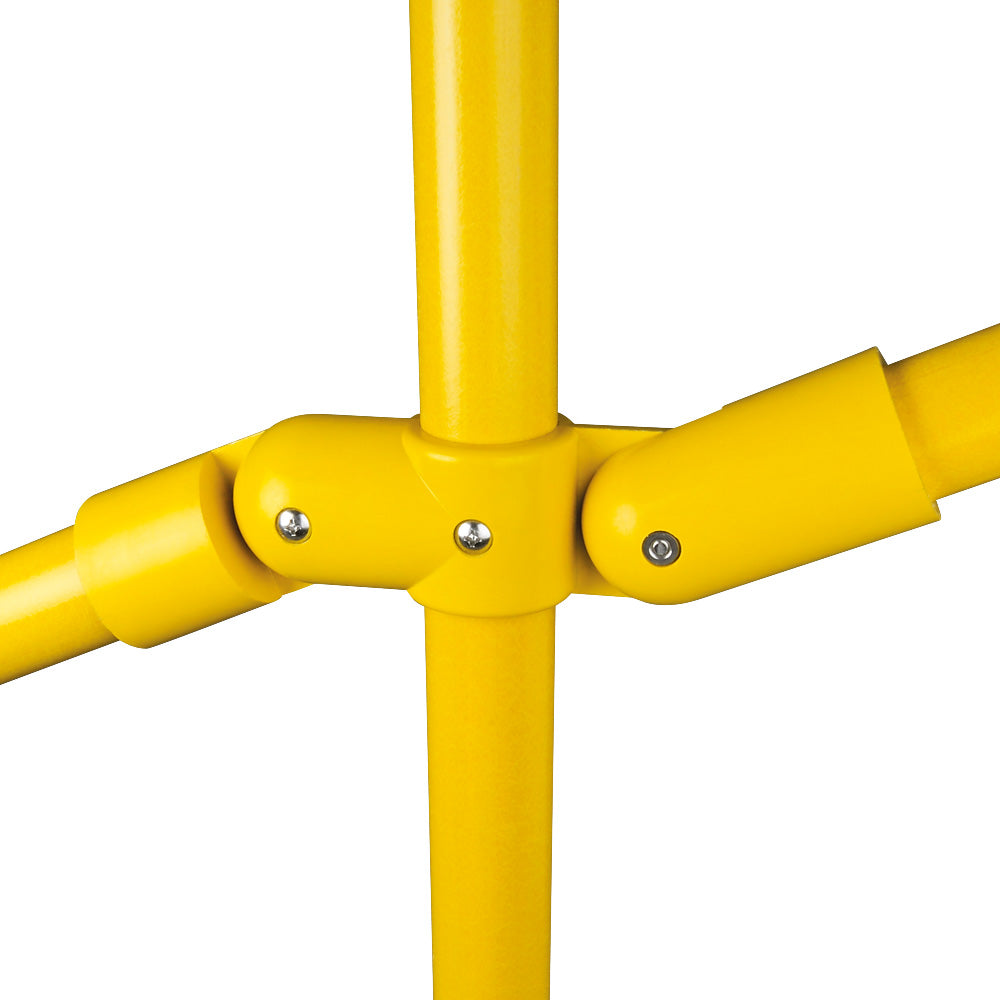

A very versatile fitting that is used as a variable angle connection between knee rail and stanchion post for ramps and stairs at the full range of slopes. It can also be used with the handrail where a change in angle is required e.g. stair to landing.

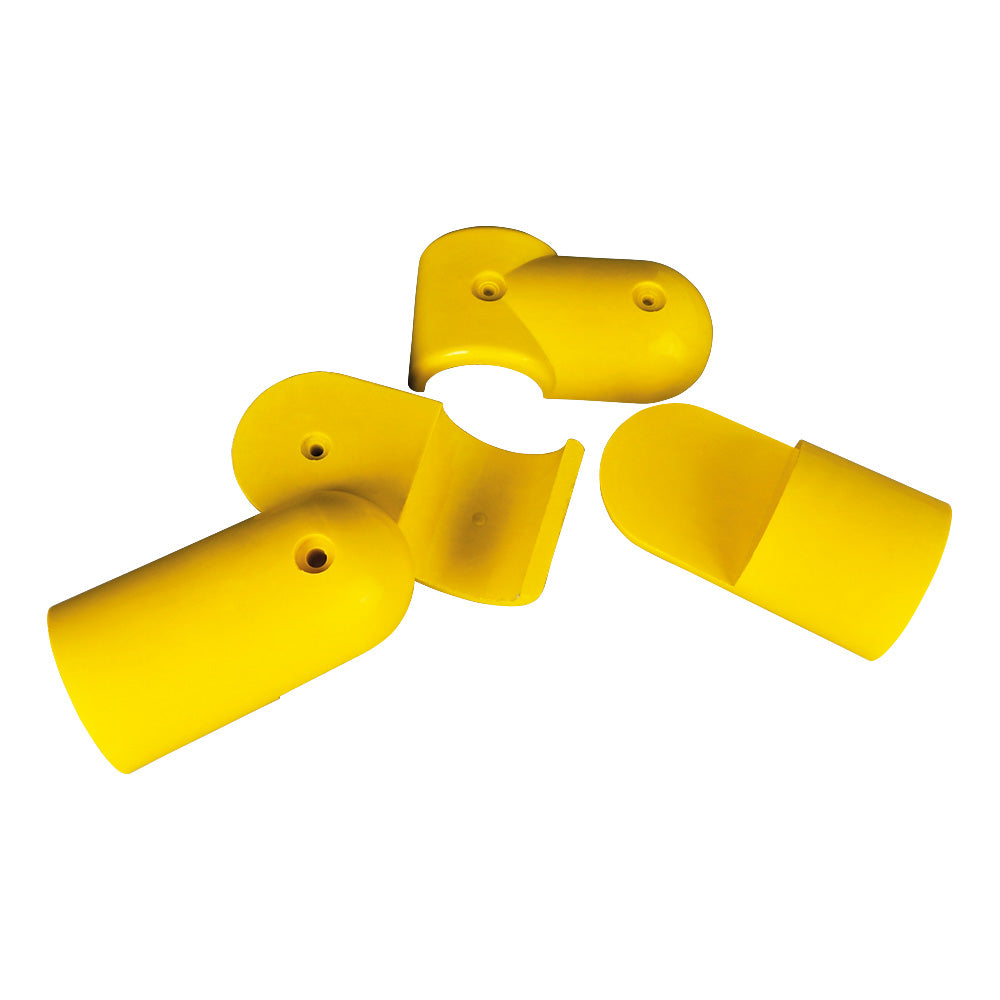

The fitting is made up of 4 parts, a pair of universal connectors plus the universal joint pair, a bolt is required to join universal joint connector to the tube. The universal connector can either be adhesive bonded to the tubes or bolted.
This item requires 2 x FH300 fixings, sold separately.
Specifications
weight: 1.03 kg
length: 390.0mm
width: 390.0mm
depth: 50.0mm
material: GRP
suit tube: 50mm
