Description
Locinox Ground Mounting Kit For Interio Gate Closer

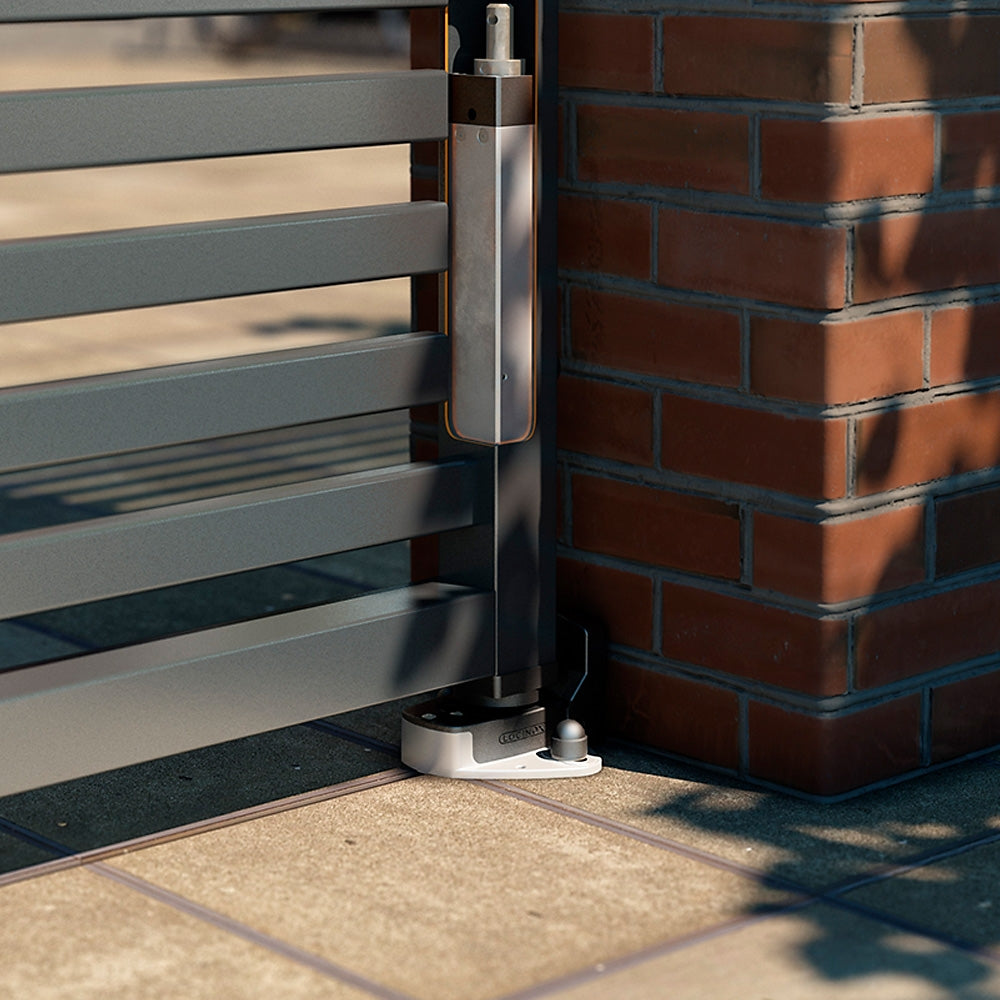

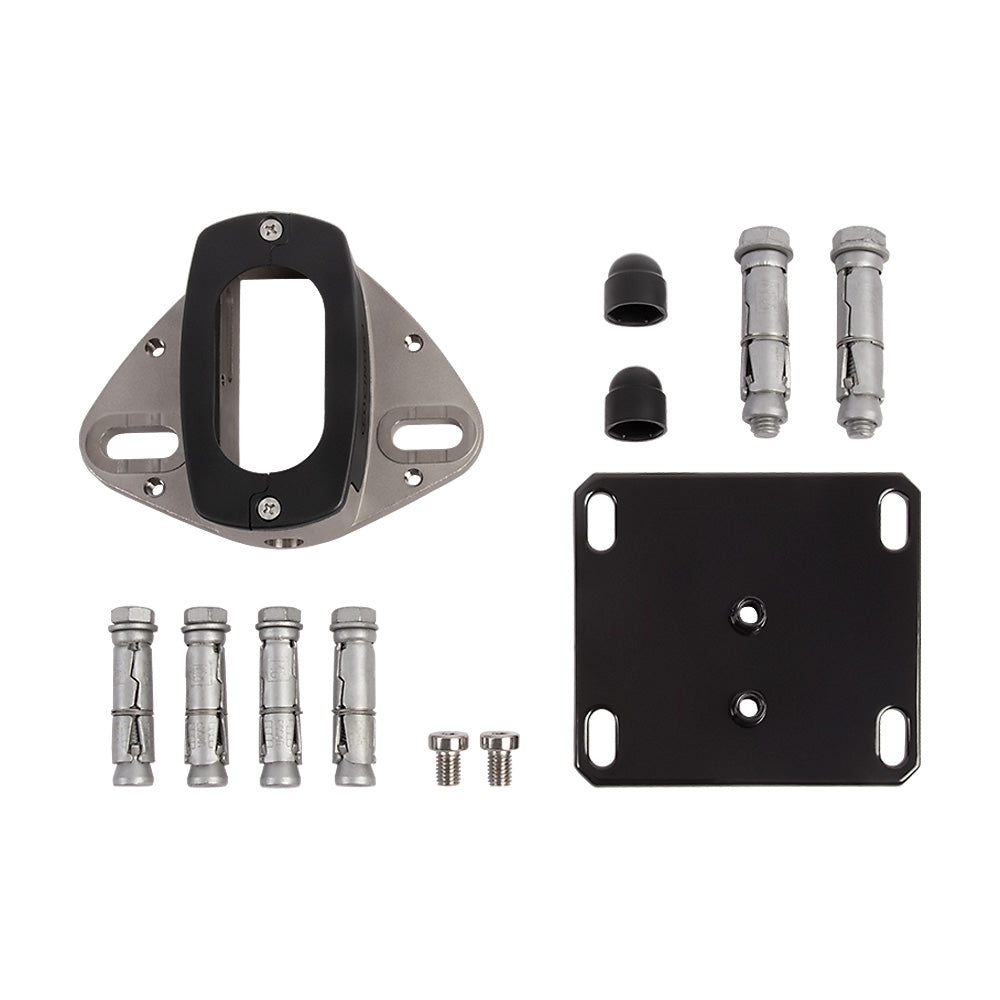

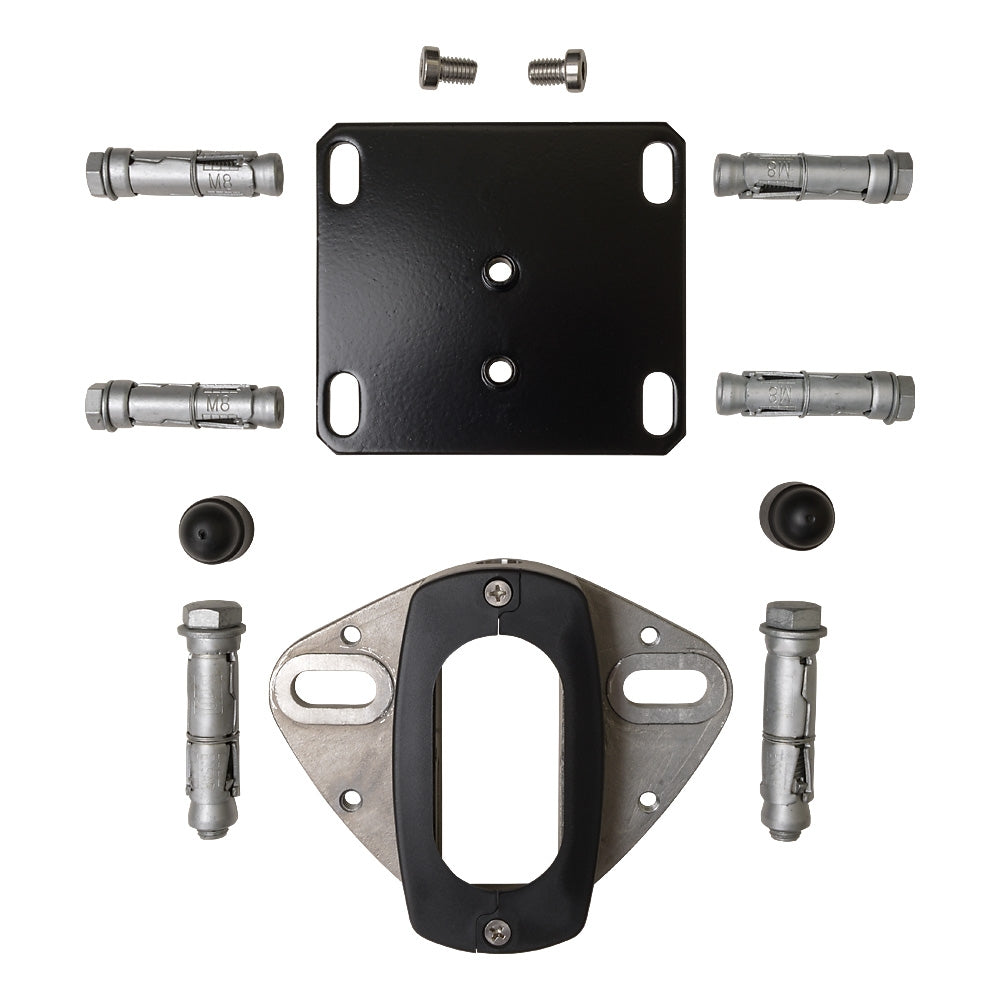

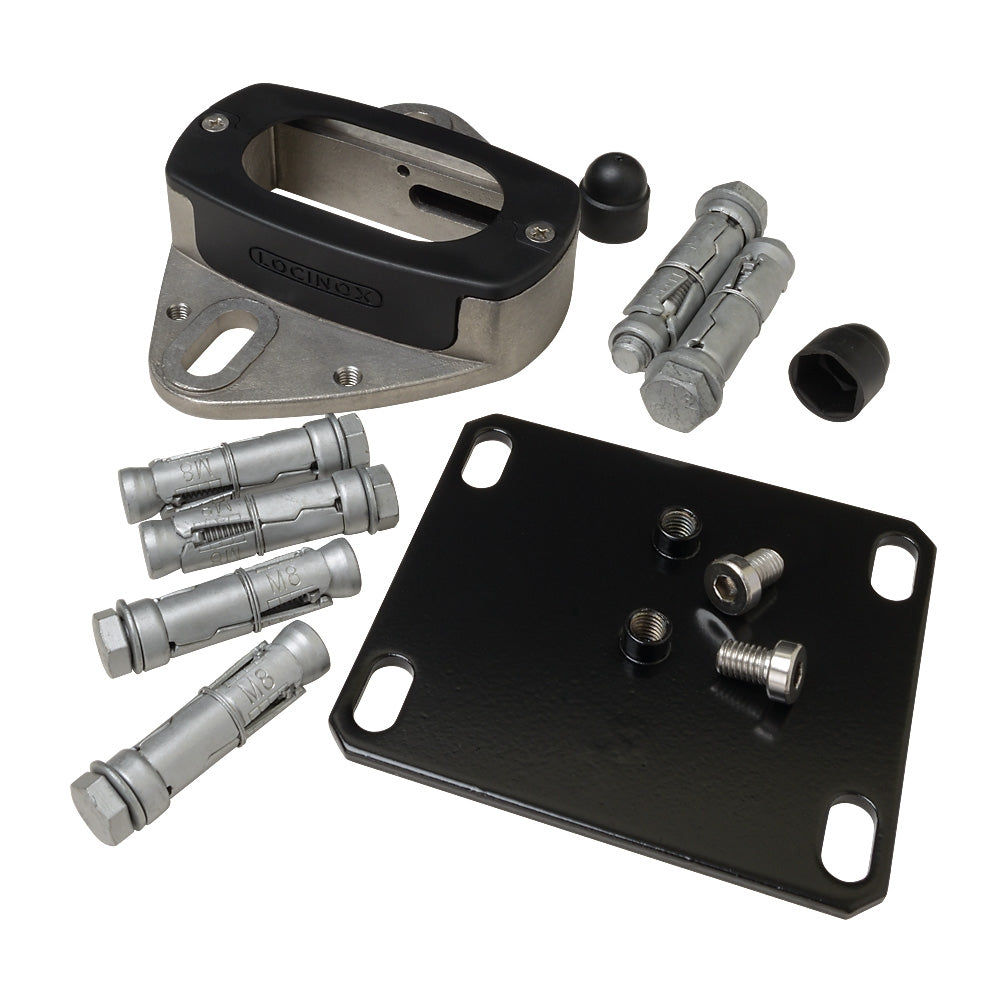

Optional set to fix the Interio gate closer directly on the ground. This set consists of a ground hinge and a wall panel. Including all fixations.
- Wall plate made of hot-dip galvanized metal with RAL9005 powder coating
- Bottom hinge fixation block made of aluminium
- Anchor bolts included
- Distance between gate and wall: min. 29 mm - max. 54 mm
- Depth adjustment: 15 mm
- Height adjustment: 10 mm
- Minimal opening under the gate: 22,5 mm
- Only compatible with Interio gate closer
Specifications
weight: 1.31 kg
length: 100.0mm
width: 95.0mm
depth: 70.0mm
Product Documentation
LOCINTG Product Dimensions
