Save 17%
Product Code: SSHB103
Price:
£4.95 Ex VAT
£5.94 Incl VAT
£5.95 Ex VAT
£7.14 Incl VAT
Stock:
100+ in stock

Express Delivery - £9.95 ex VAT - Usually delivered next business day delivery when ordered before 12pm to most of UK. View full delivery terms.

Collection available at DC Iron Newcastle upon Tyne

Usually ready in 1 hour

Description

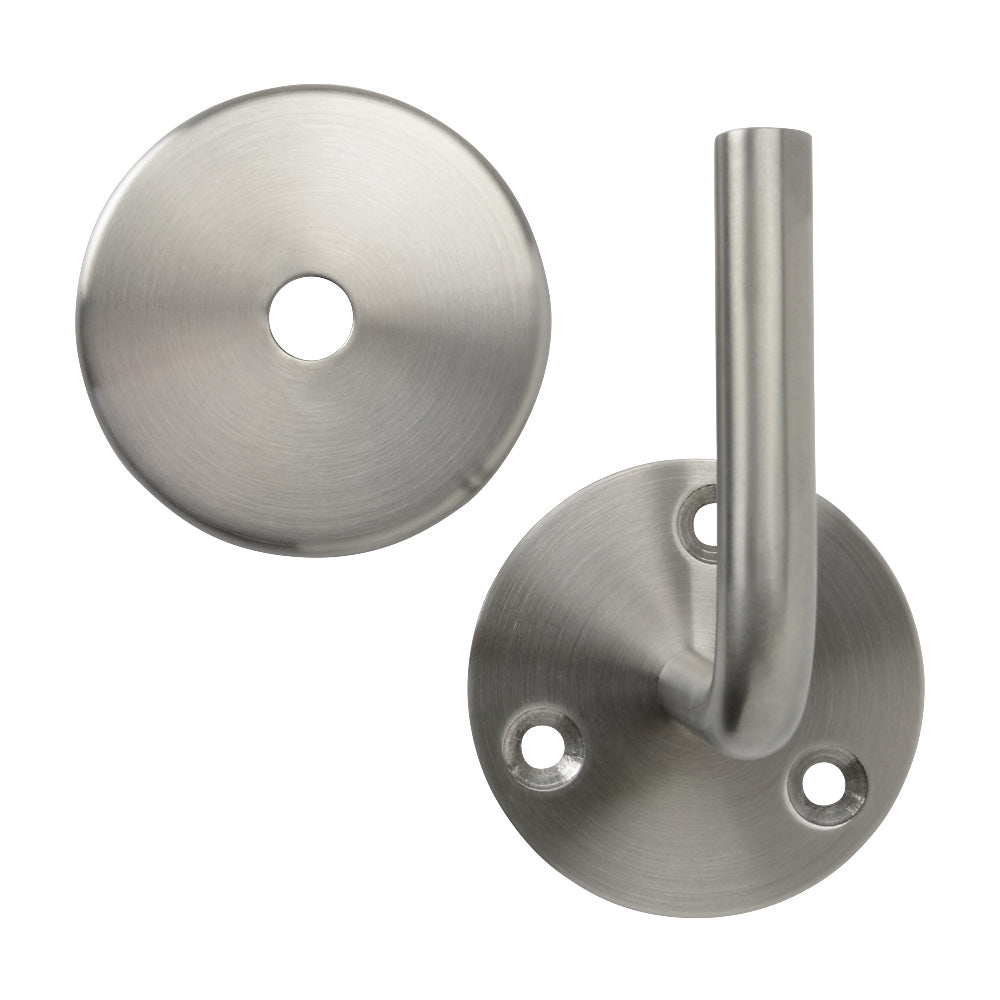

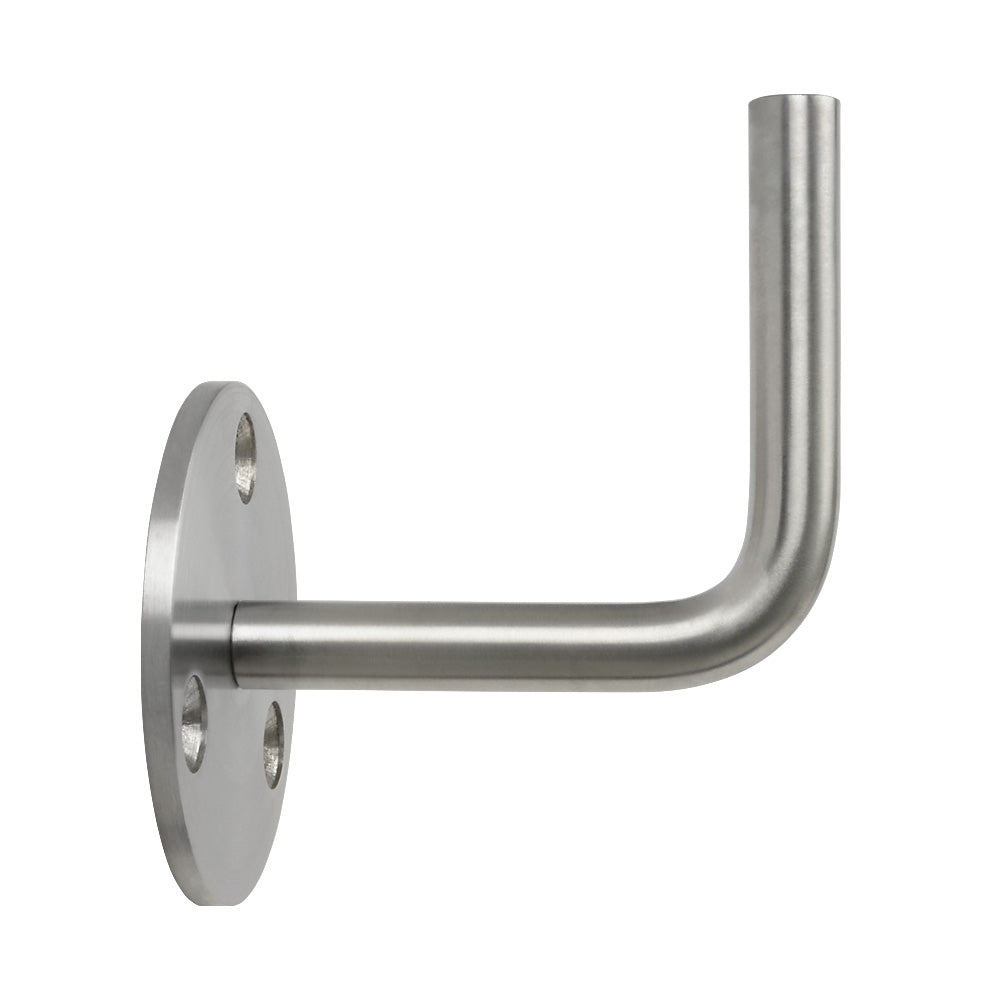

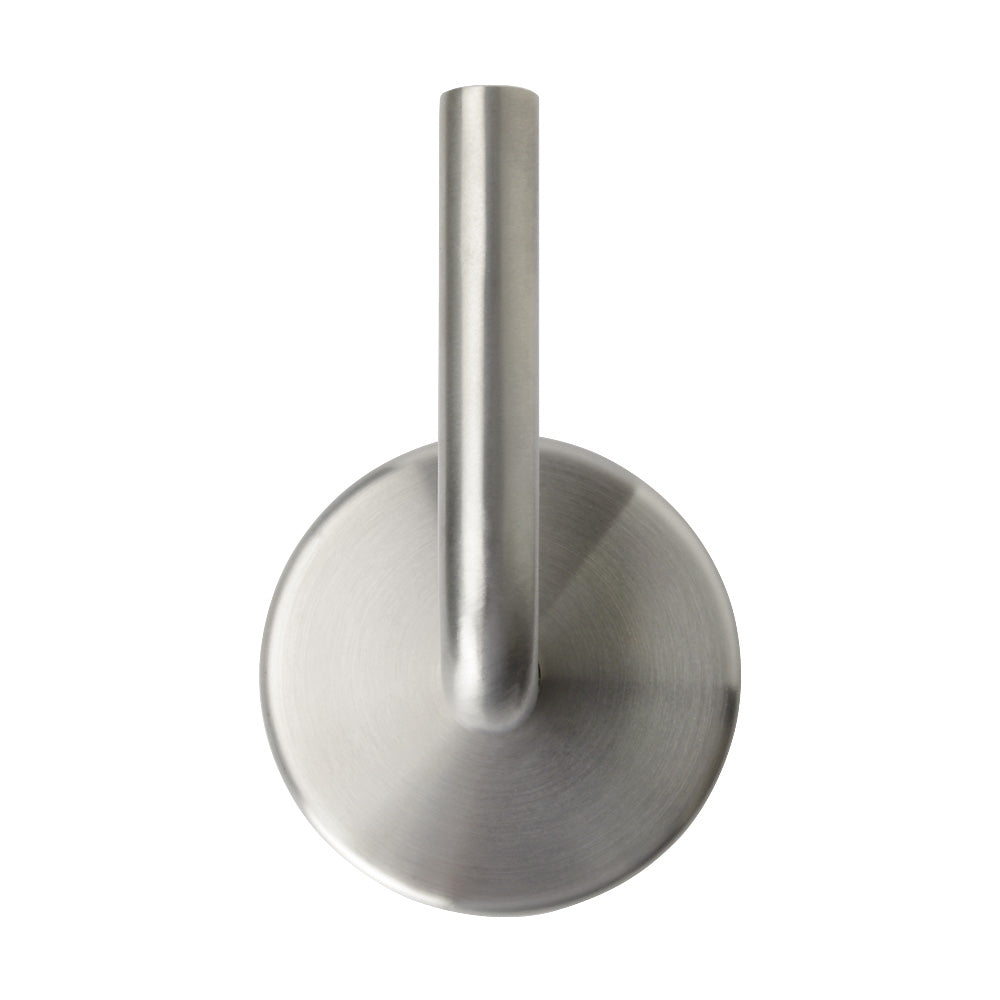

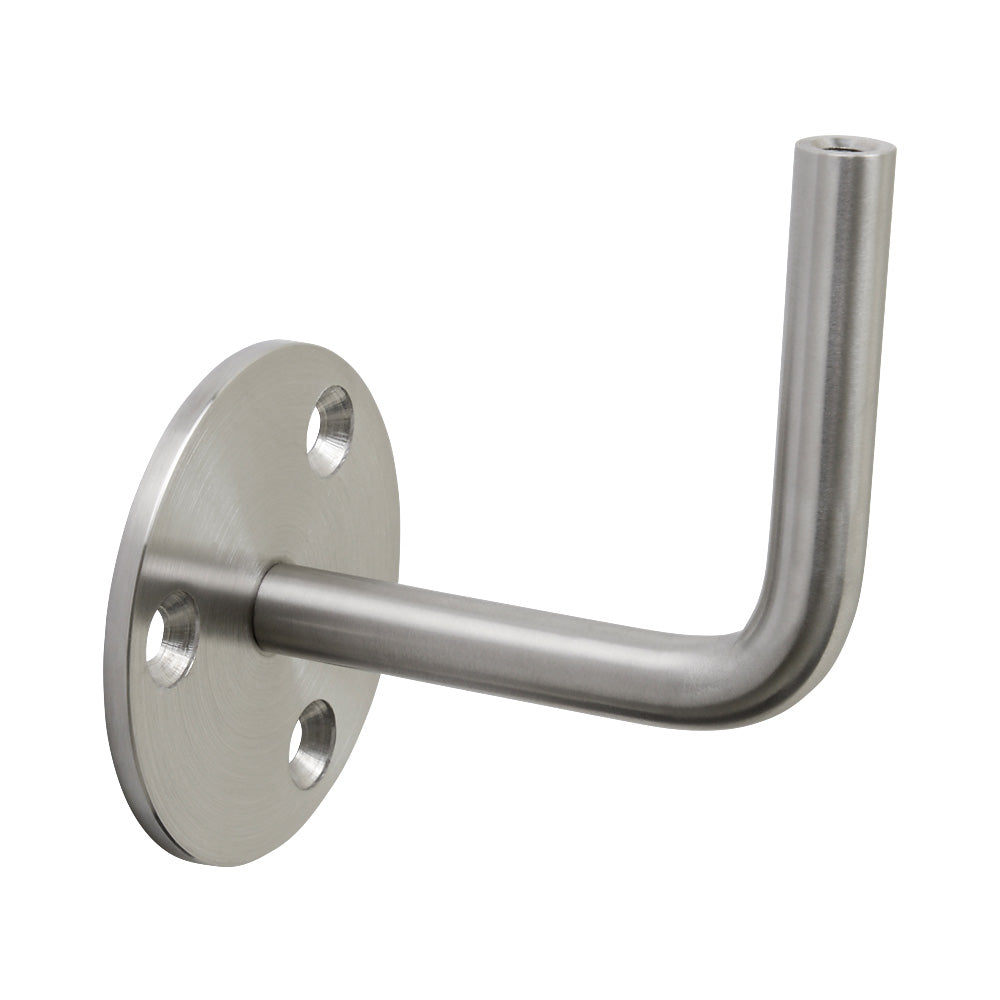

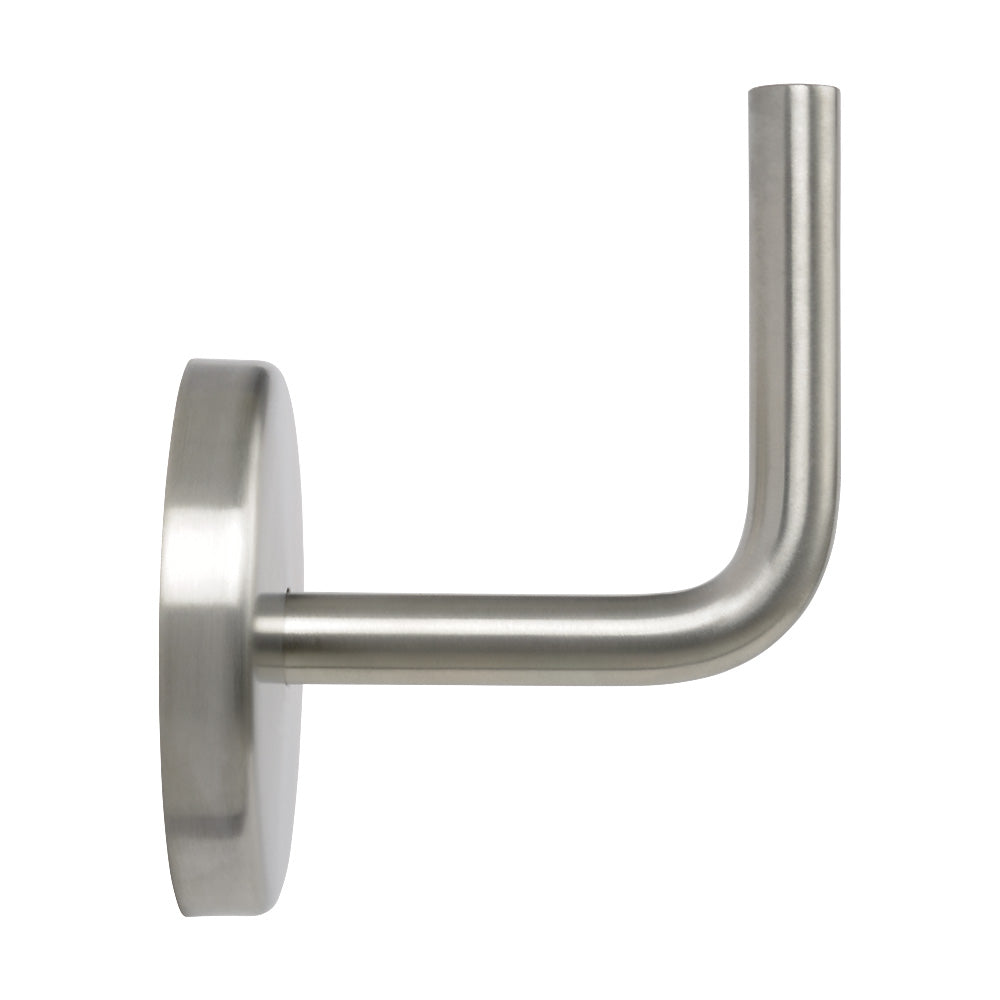

Handrail Bracket With M6 Thread and Cover Plate

70mm Dia Back Plate

85mm Projection

75mm Stem height

3 Counter sunk holes

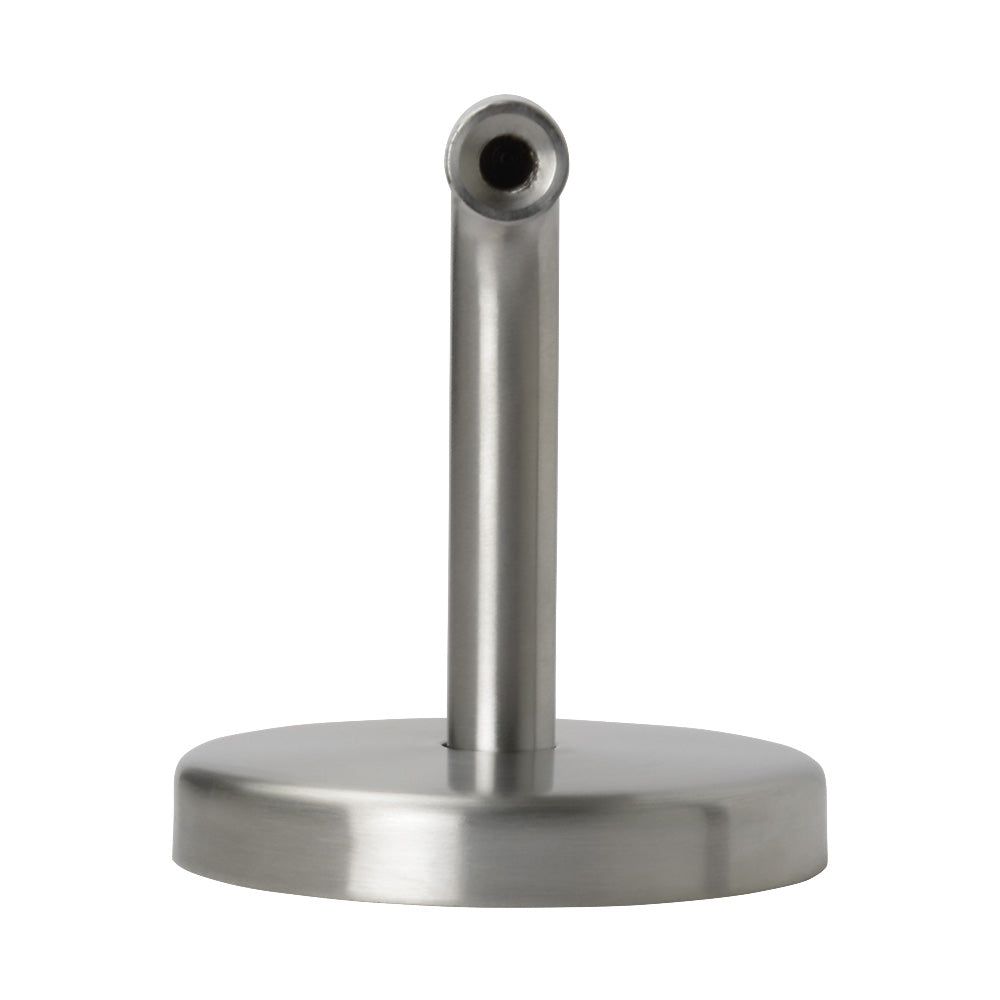

M6 thread in stem for connecting to handrail support plate. Or stem can be welded to handrail.

316 Stainless Steel

Satin Finish

Specifications

weight: 0.33 kg
length: 85.0mm
width: 70.0mm
depth: 12.0mm
material: 316 Stainless Steel
material finish: Satin
projection: 85mm

Product Documentation

SSHB103 Product Dimensions Stainless Steel Care Maintenance

This product is on page 150 of Catalogue 28

View catalogue page Request a catalogue
