DEA Ghost 200 Underground Gate Automation Kit

Product Code: 200/1

Sale price£950.00 Ex VAT
Sale price£1,140.00 Incl VAT
2 in stock

£9.95 ex VAT next business day delivery when ordered before 2pm to most of UK. FREE on orders over over £300 ex VAT. View full delivery terms.

Collection available at DC Iron Newcastle upon Tyne

Usually ready in 1 hour


Underground Electromechanical Operator for Swing Gates Kit.

The Ghost is an underground electromechanical operator suitable for residential and commercial swing gate applications. The powerful 400W irreversible motor locks the gate firmly against mechanical stops in both open and closed positions. (The stop can be located
inside the foundation box casing). There is an Emergency manual release system which is used in the event of power failure, it is supplied with one key with each underground box. Also with the underground gate system an 180 degree opening is also possible.

Ample drainage from the foundation boxes must be available to guarantee motor warranty.

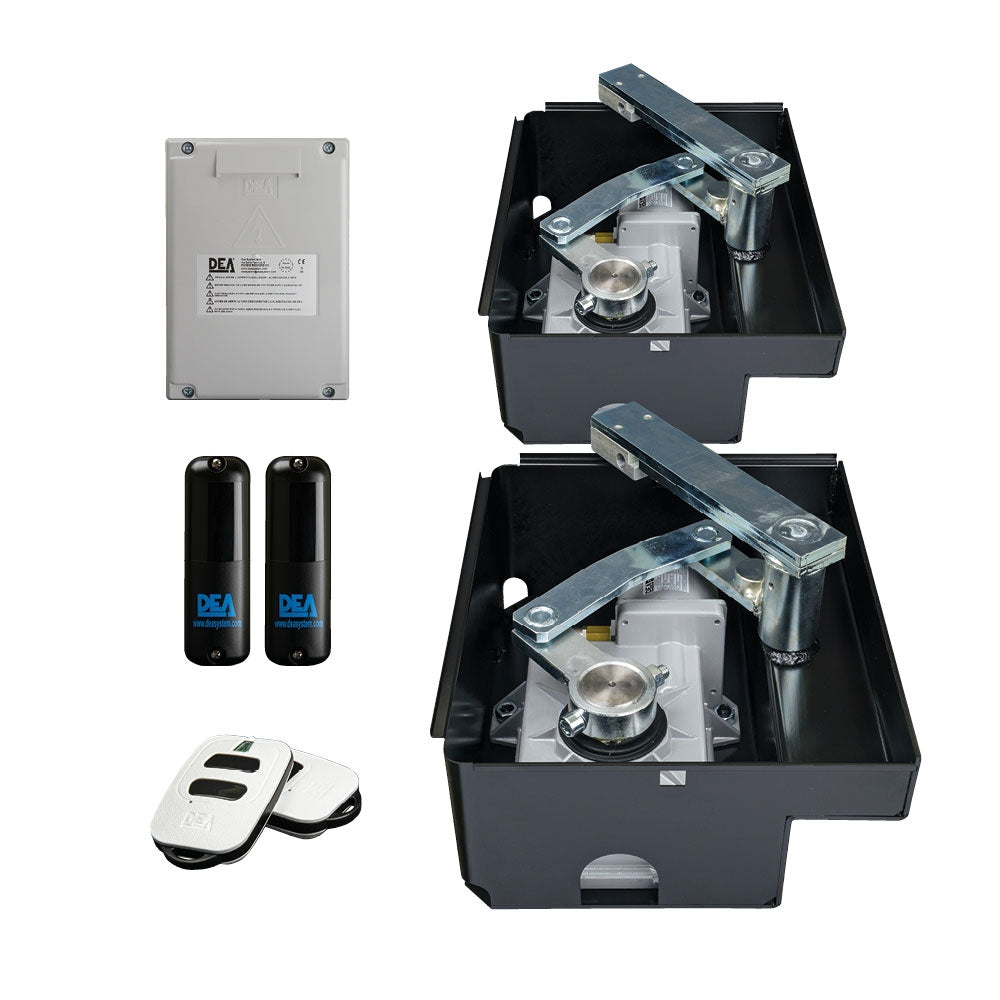

The Ghost 200 Kit Includes:

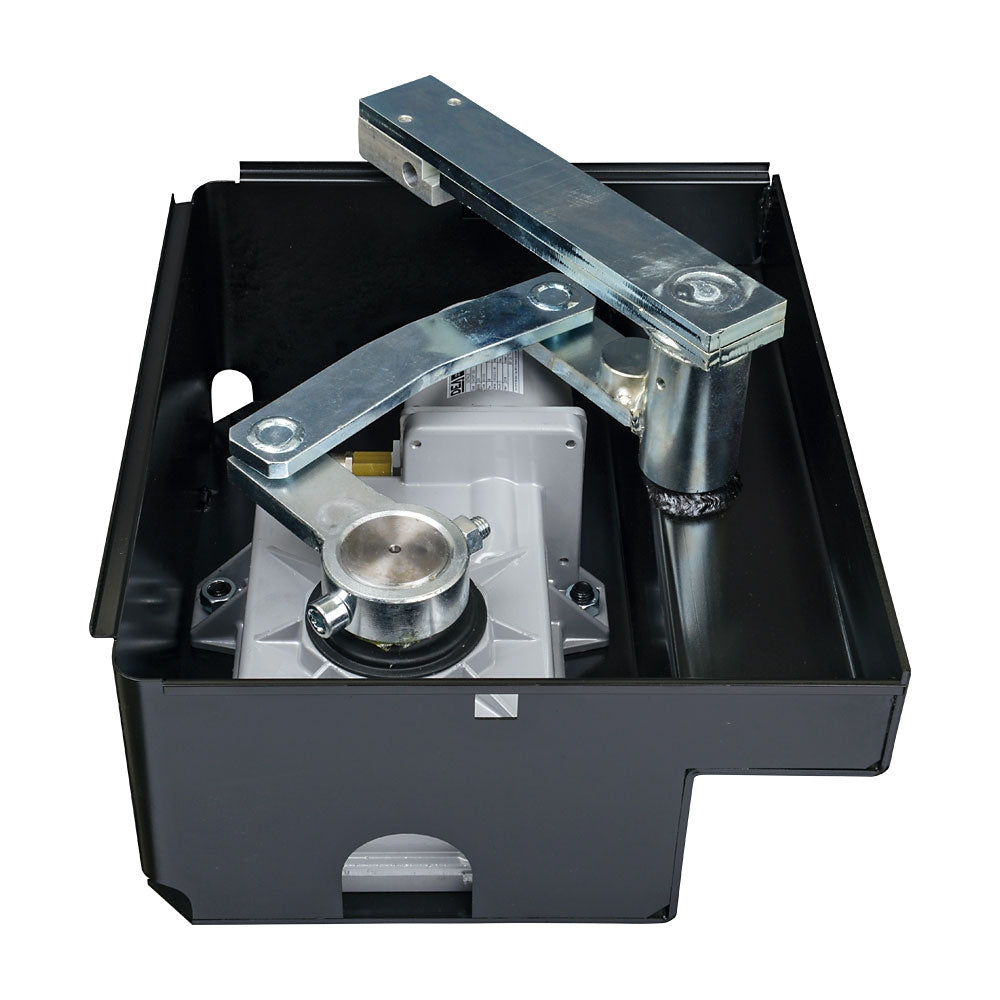

• 2 x Ghost motors

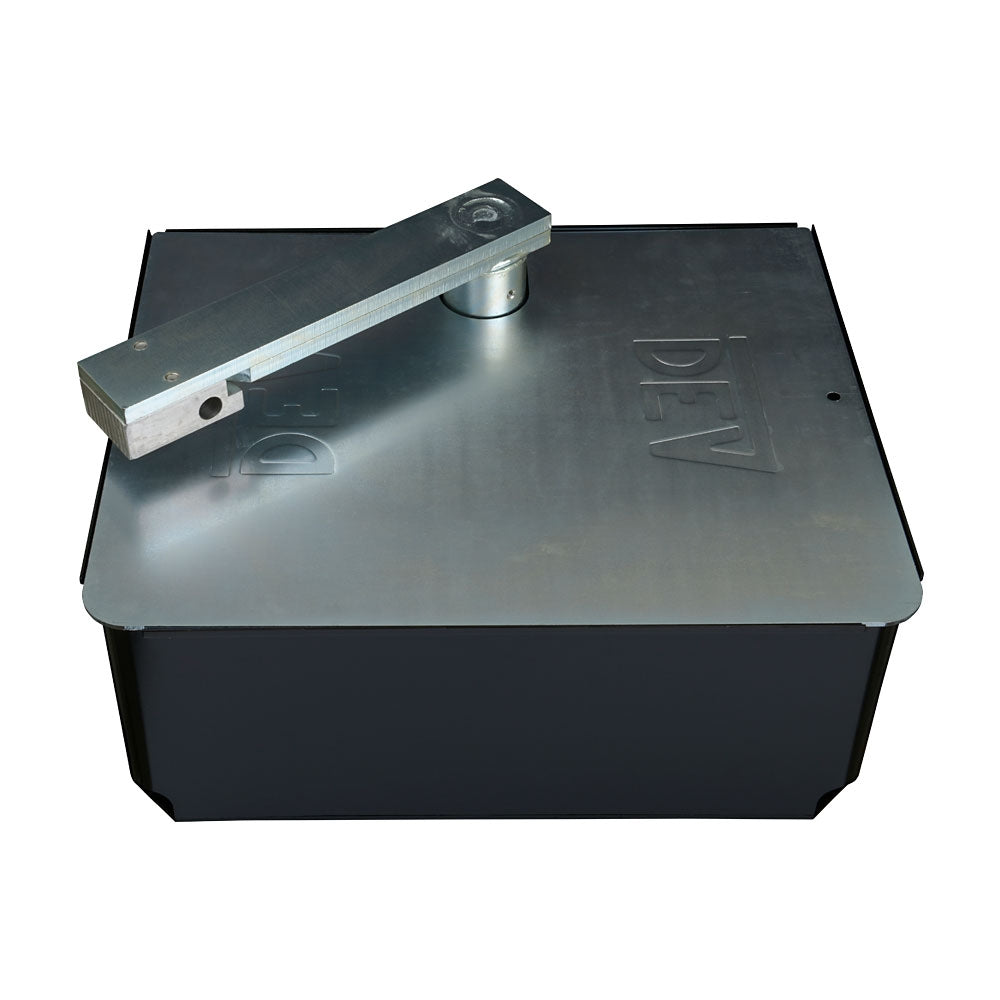

• 2 x 215 Galvanized Foundation boxes

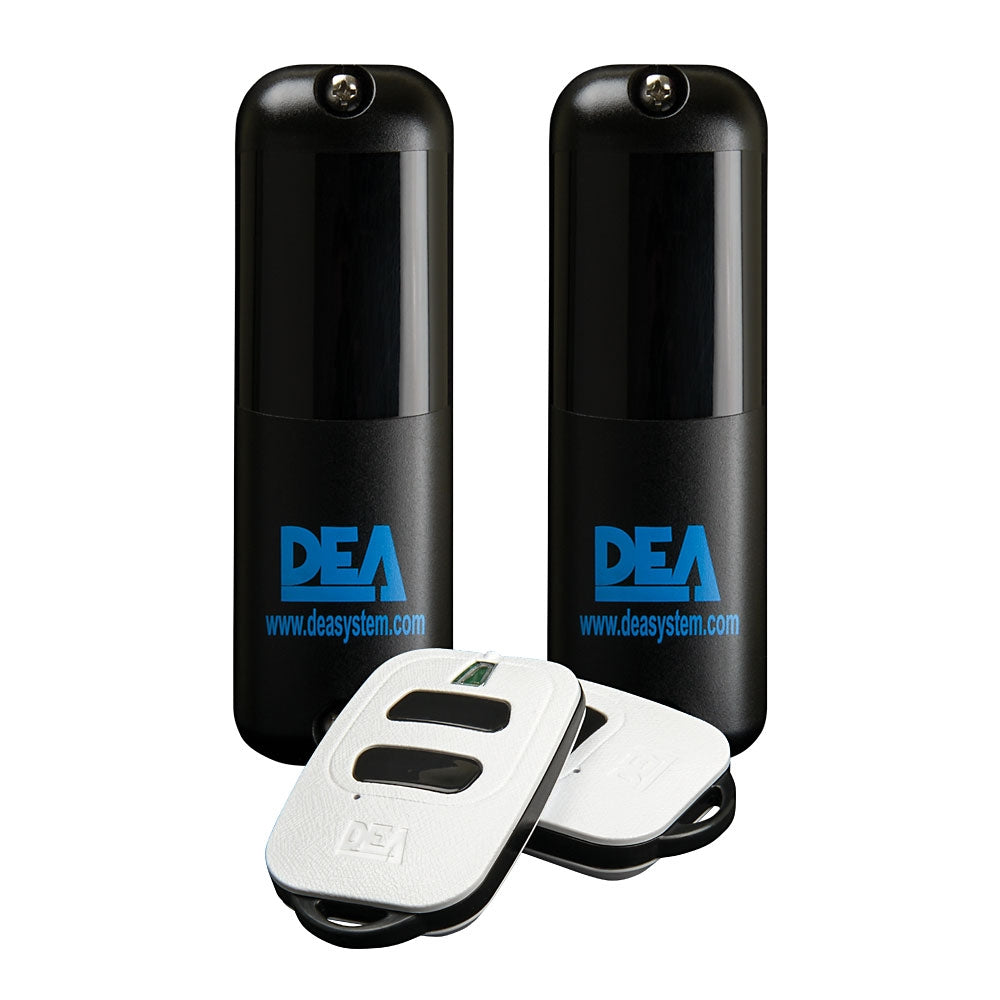

• 2 x Remote control
• 1 x set of photocells

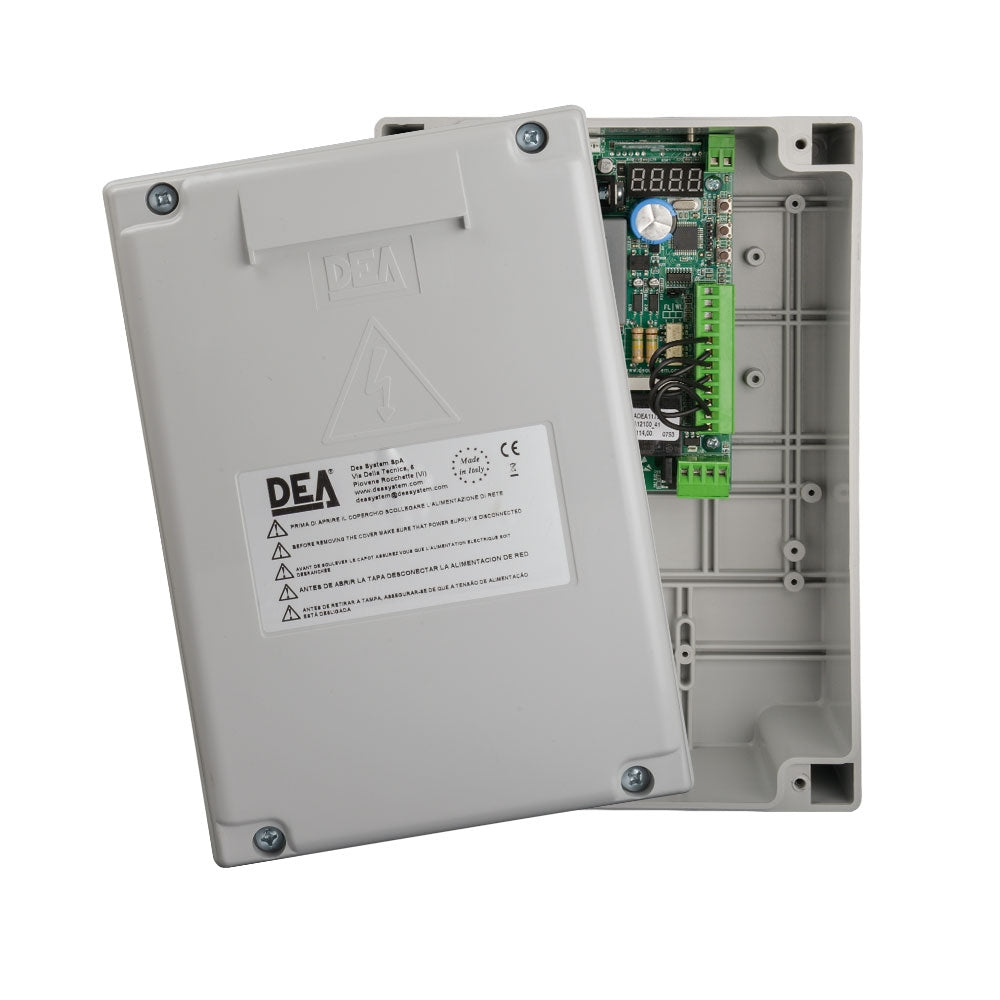

• 1 x Net (230/24)N Control Board


Technical information:
Model 200
Motor power supply (V) 230V ac
Capacity (W) 400
Duty cycle 50%
Max torque (Nm) 320
Operating temperature (OC) -20O ÷ 60O
Opening time 90O (s) 17
Protection level IP 67
Weight with packaging (kg) 14.5
Max. wing (Gate) length 3.5m
Max. wing (Gate) weight 800kg
Foundation Boxes Galvanised steel


weight: 70.0 kg
length: 420.0mm
width: 345.0mm
depth: 225.0mm
gate type: Swing
max gate weight: 800.0kg
max gate width: 4.0m

Product Documentation

2001 Product Dimensions

This product is on page 111 of Catalogue 27
