Description

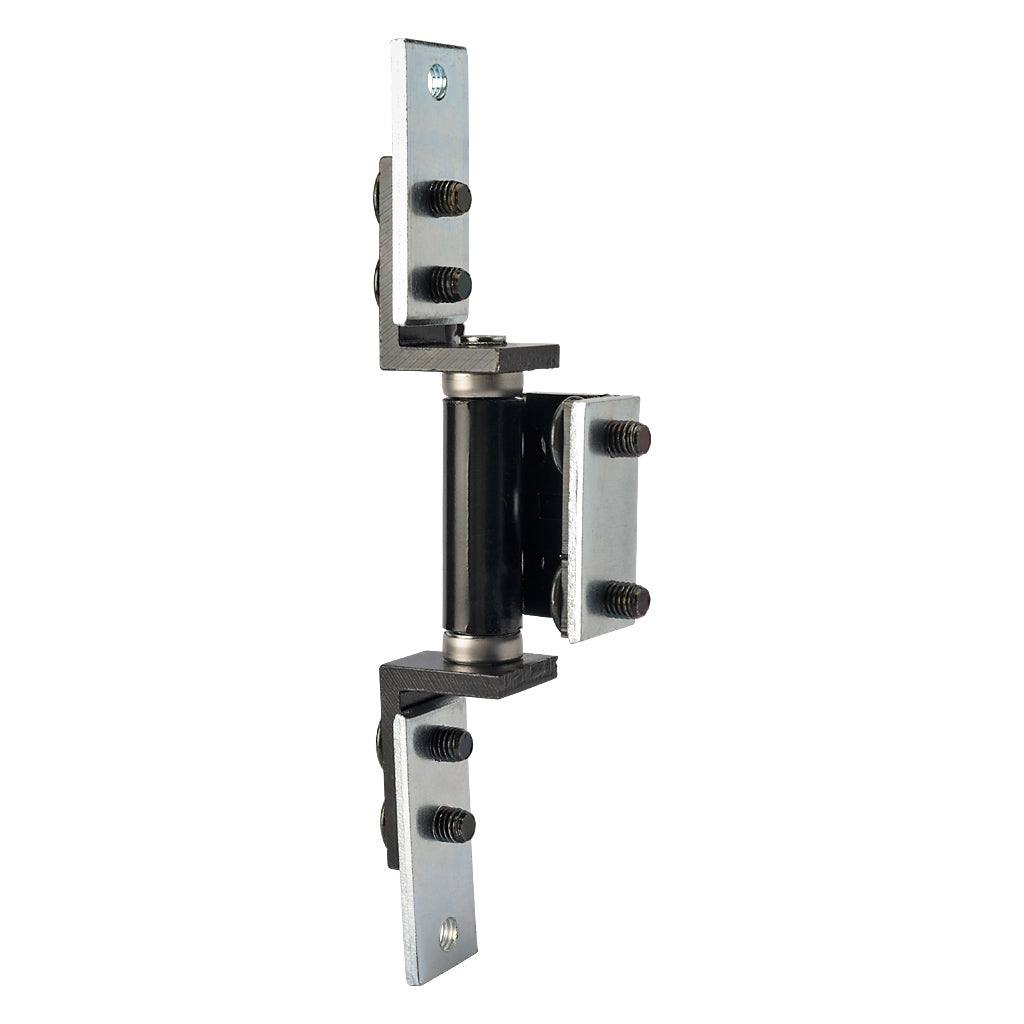

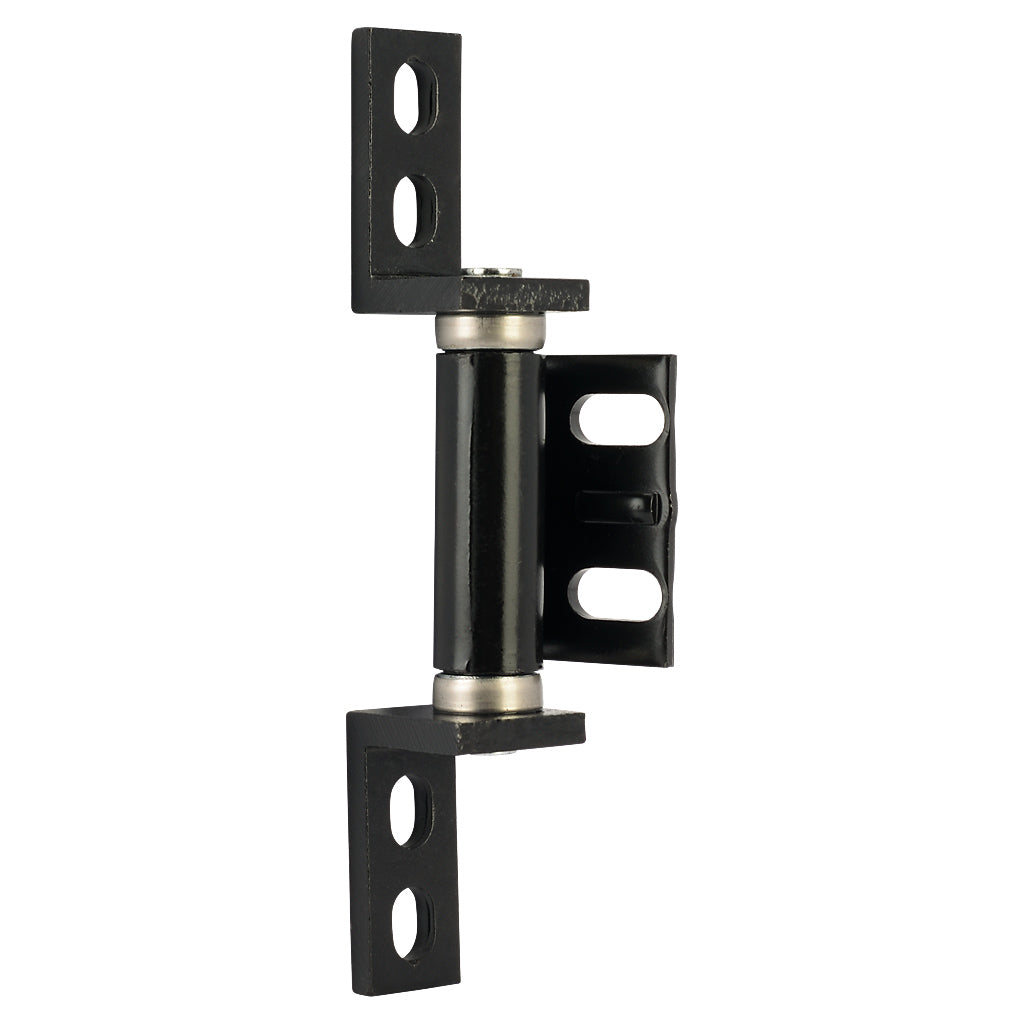

Heavy duty hinge with ball bearings suitable for many different profiles.

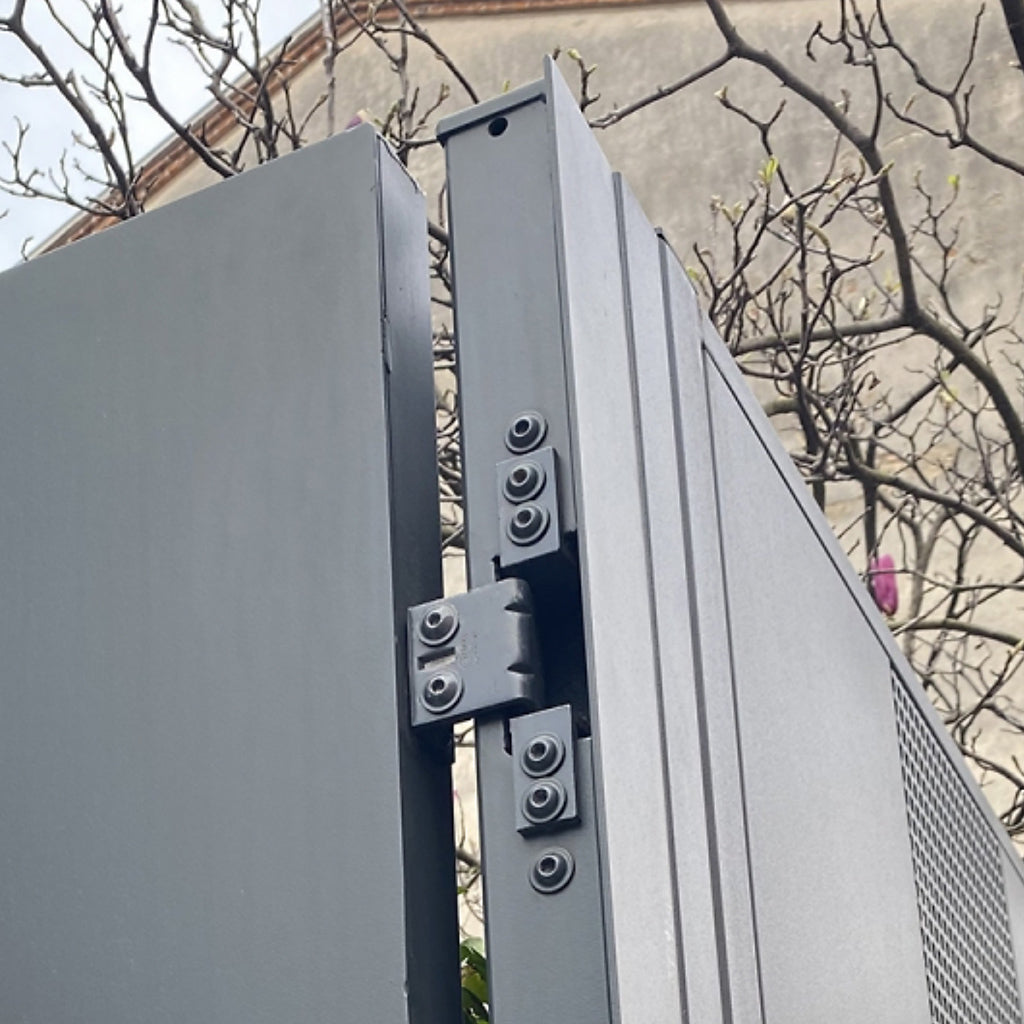

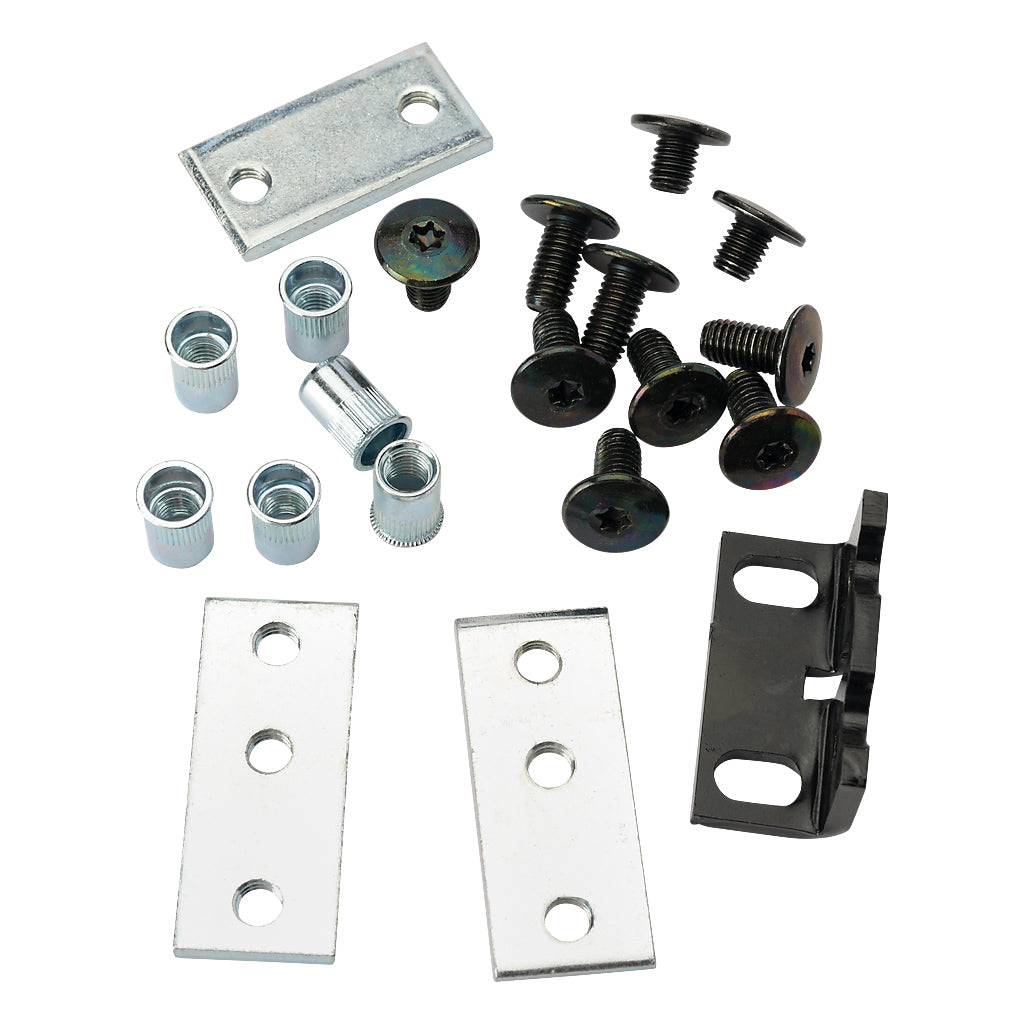

Especially designed to be installed on squared, tubular profiles. Installation performed with rivet nuts. Easy installation process thanks to the position and installation of these hinges. Depending on the model, the installation is performed thanks to M8 screws, counter plates and eventually rivet nuts.
- 105 Deg average opening angle
- Door weight up to 160kg
- Adjustable in 3 directions
- Suitable for security, fire and anti-burglar doors
Specifications
weight: 0.555 kg
material: Mild Steel
material finish: Powder Coated
Product Documentation
HH754GT Adjustment Instructions
