GRP Handrail Fitting Square Base Flange

Product Code: FH232

Sale price£6.30 Ex VAT
Sale price£7.56 Incl VAT
100+ in stock

Express Delivery - £9.95 ex VAT - Usually delivered next business day delivery when ordered before 12pm to most of UK. View full delivery terms.

Collection available at DC Iron Newcastle upon Tyne

Usually ready in 1 hour

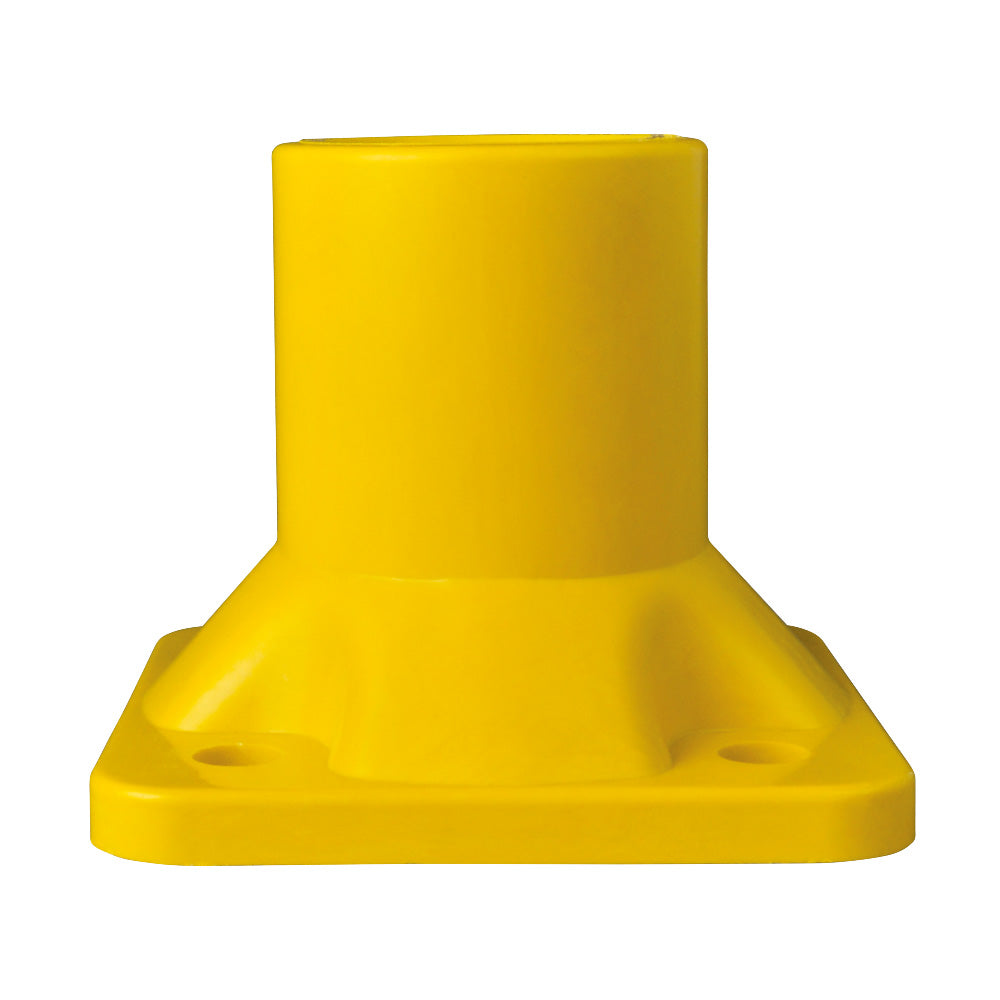

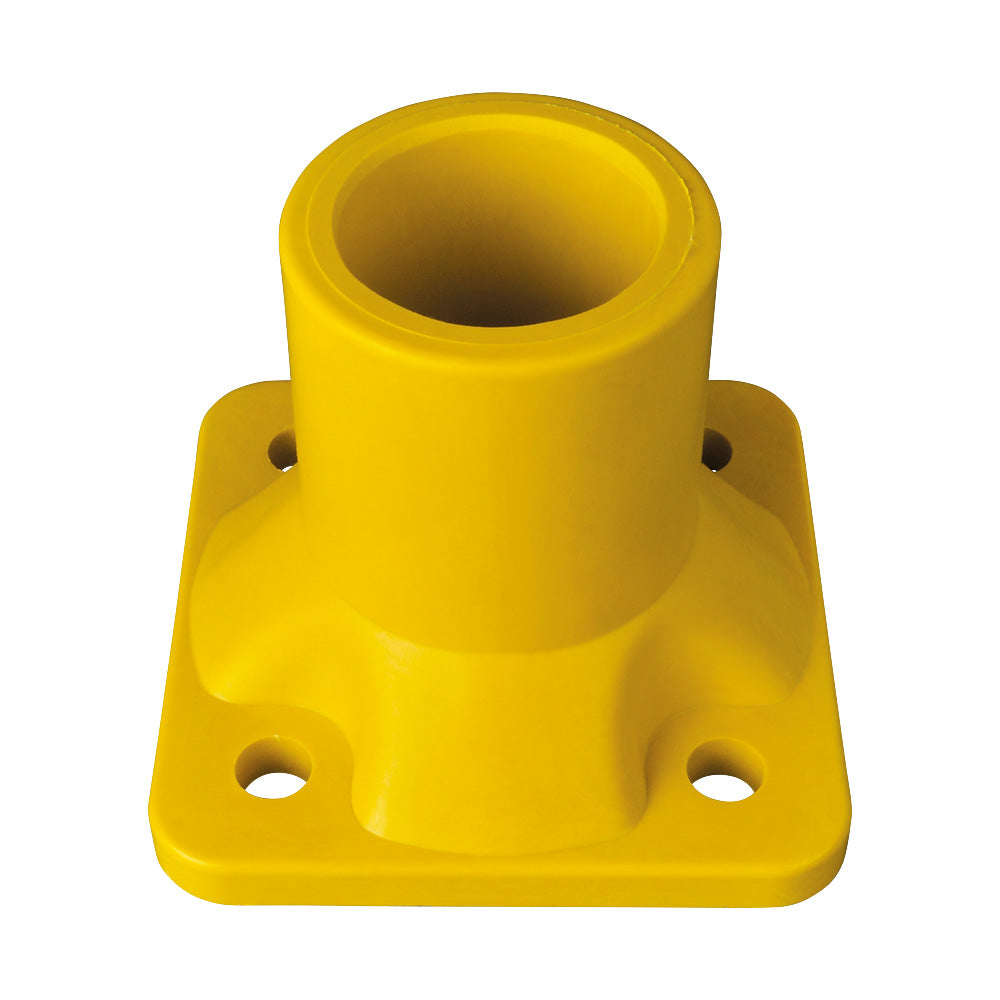

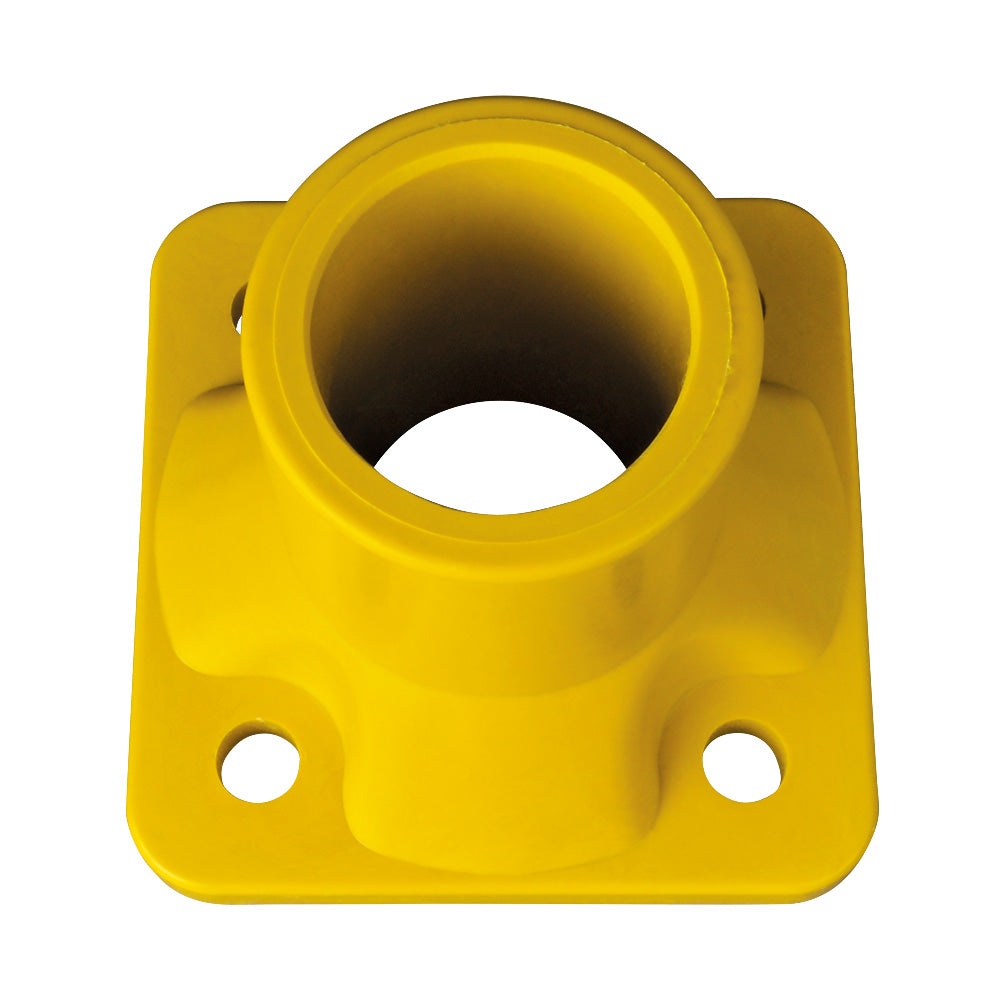

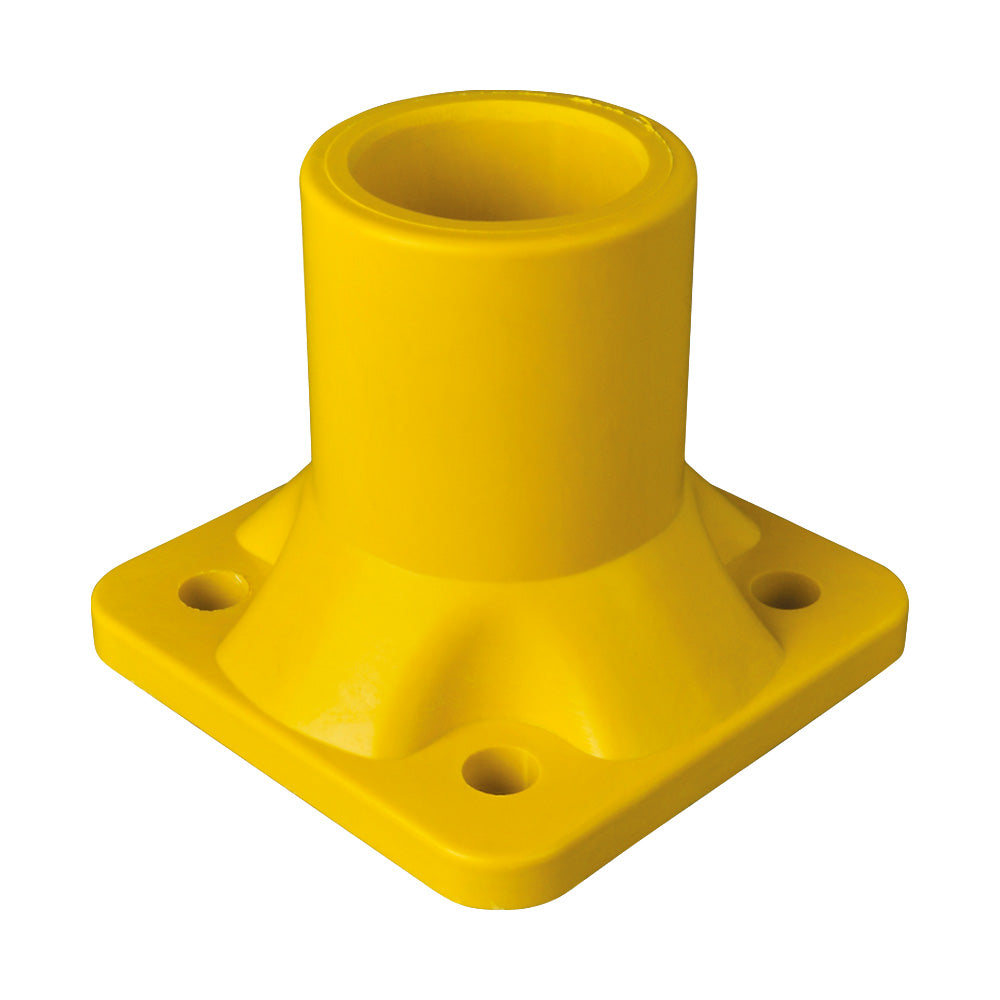

GRP Handrail Fitting Square Base Flange.

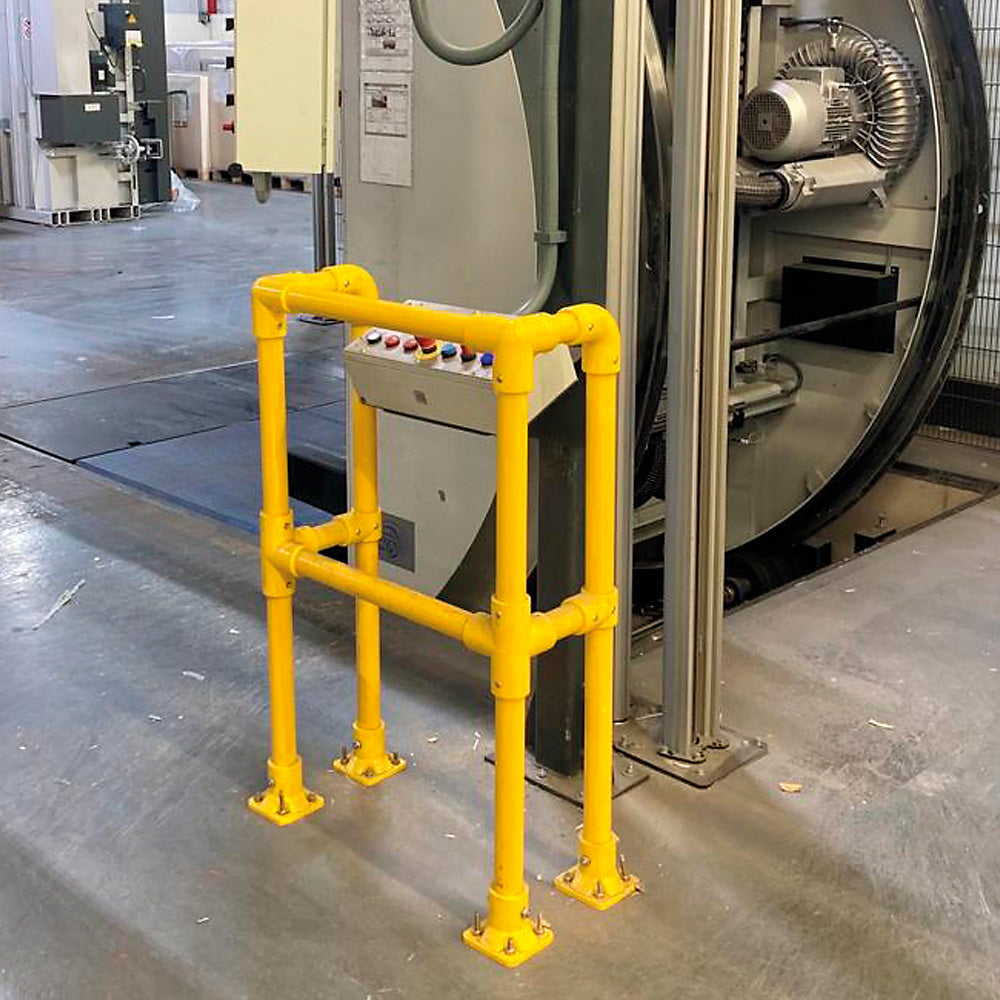

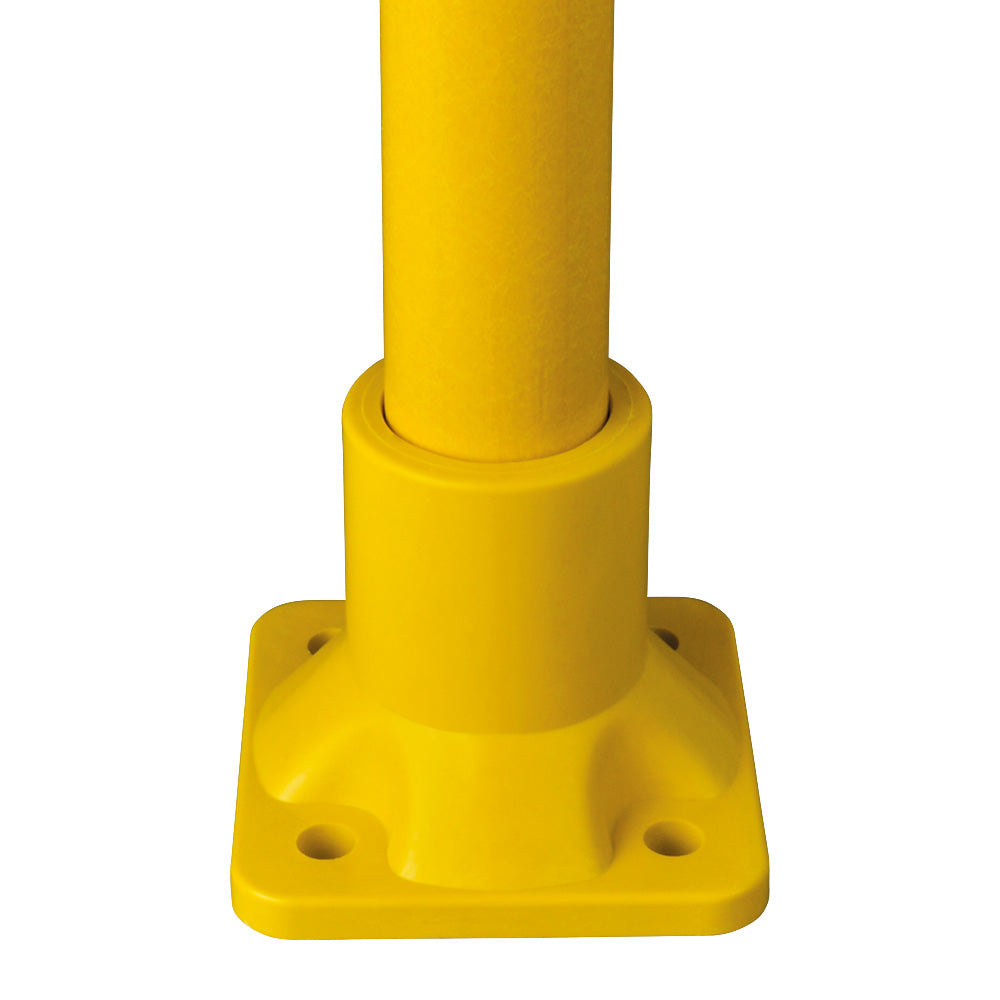

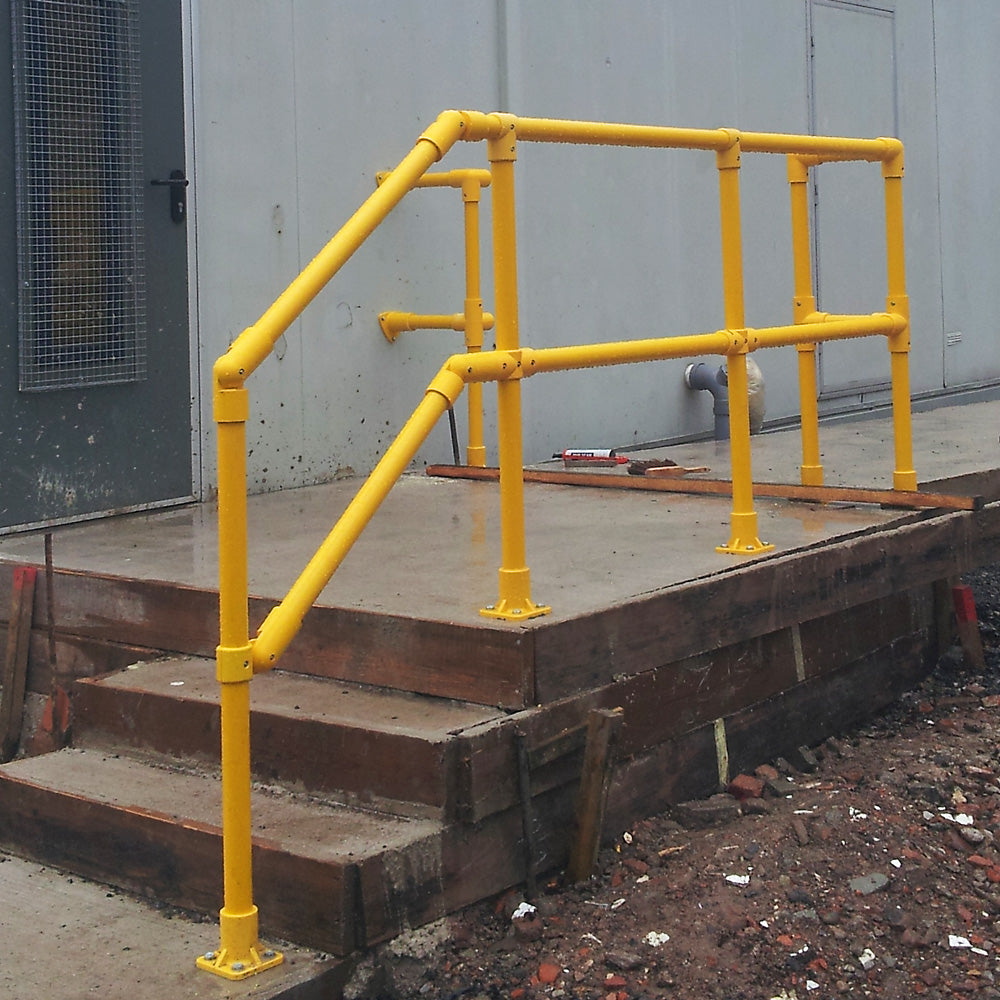

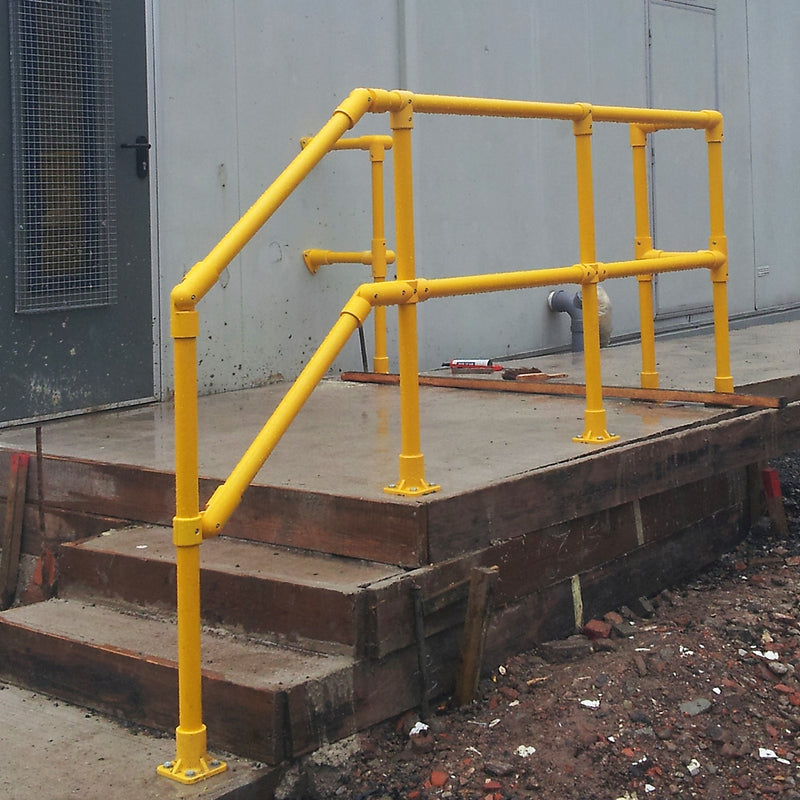

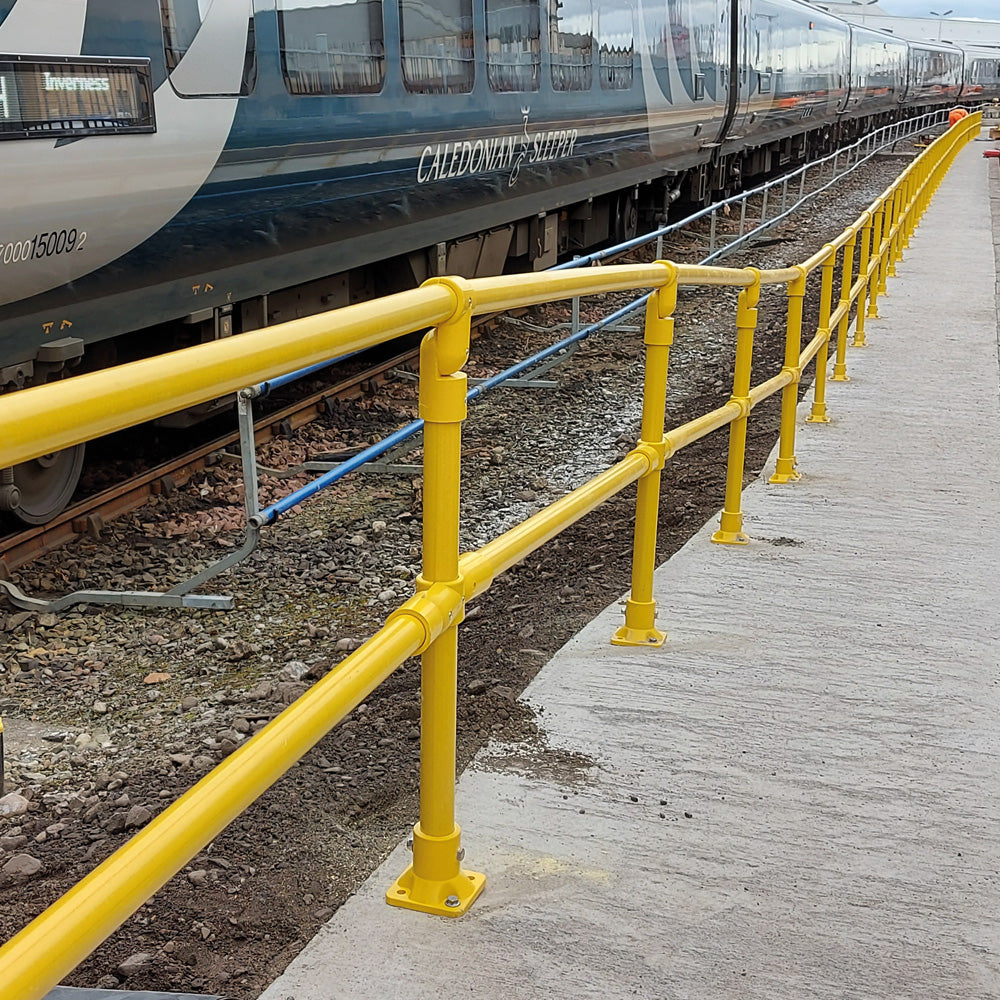

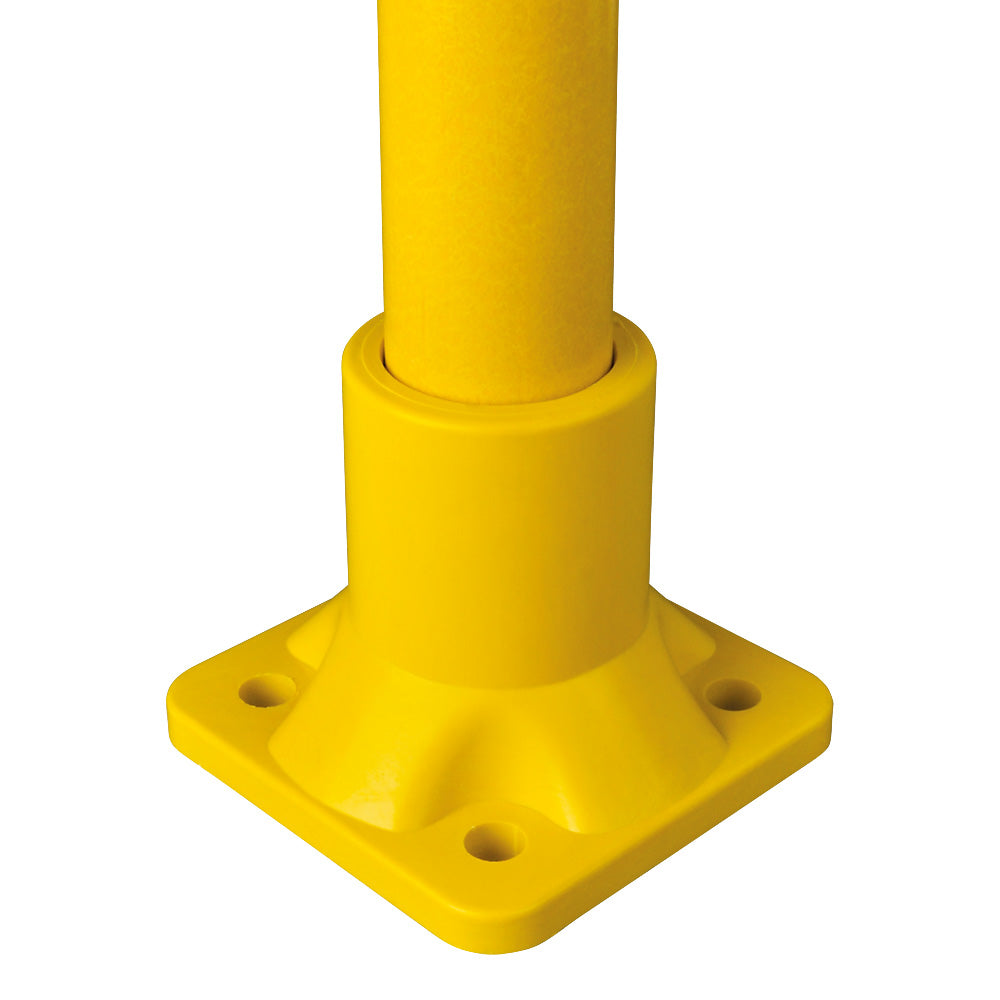

Used as the structural base foot for stanchion posts. Maximum recommended stanchion post spacing is 1.25m. The stanchion post fits into the base foot and should be secured using an M10 bolt with penny washer and 2 penny washers & nut. There are no pre-moulded indents to show where the holes are to be drilled so they can be drilled at any
convenient position using a 10mm HSS drill bit.

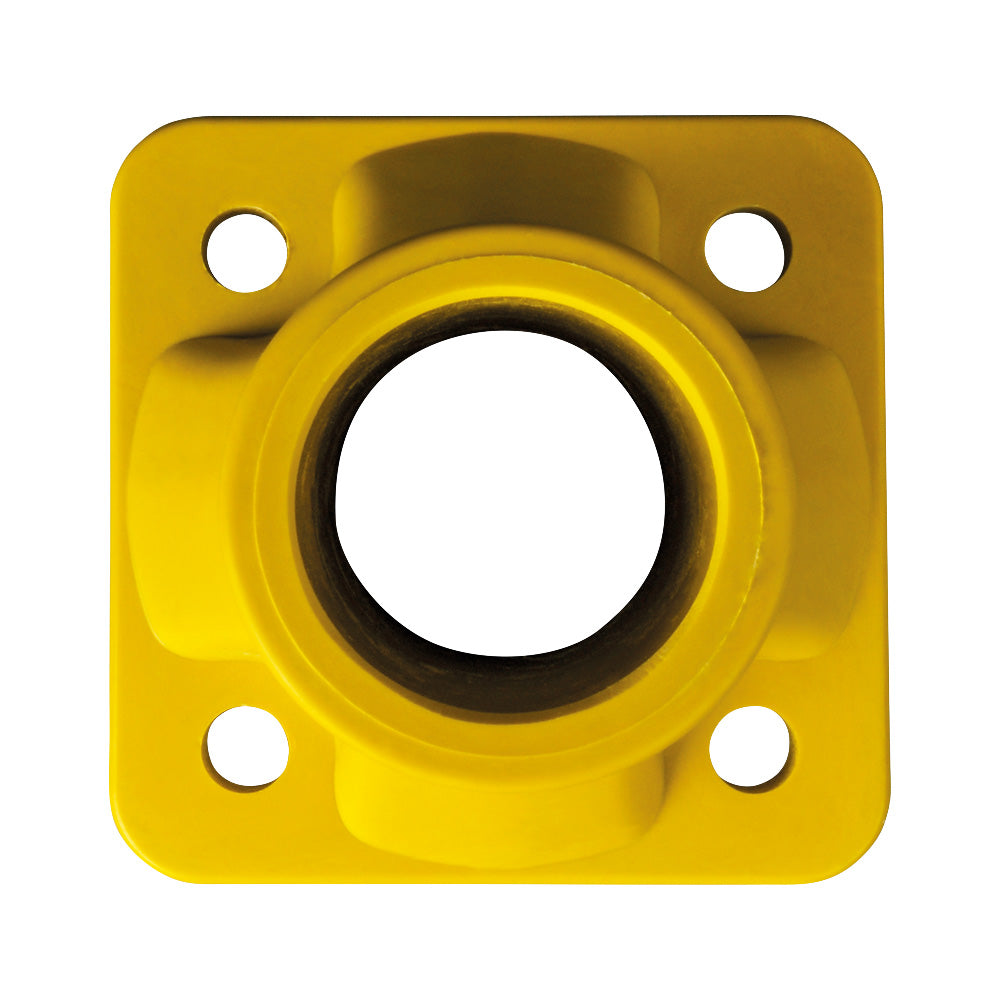

The holes to connect the base foot to the floor are 13mm diameter to take M12 bolts. The type of bolt to be used depends on the substrate to which it is to be fixed.

Please note if fixing on an uneven ground a rubber pad or rubber washer will need to be used to prevent the foot from deformation and cracking.

This item requires 1 x FH300B fixings which are to fix the base to the tube, sold separately.


weight: 0.65 kg
length: 120.0mm
width: 100.0mm
depth: 11.0mm
material: GRP
suit tube: 50mm

This product is on page 164 of Catalogue 28
