Description

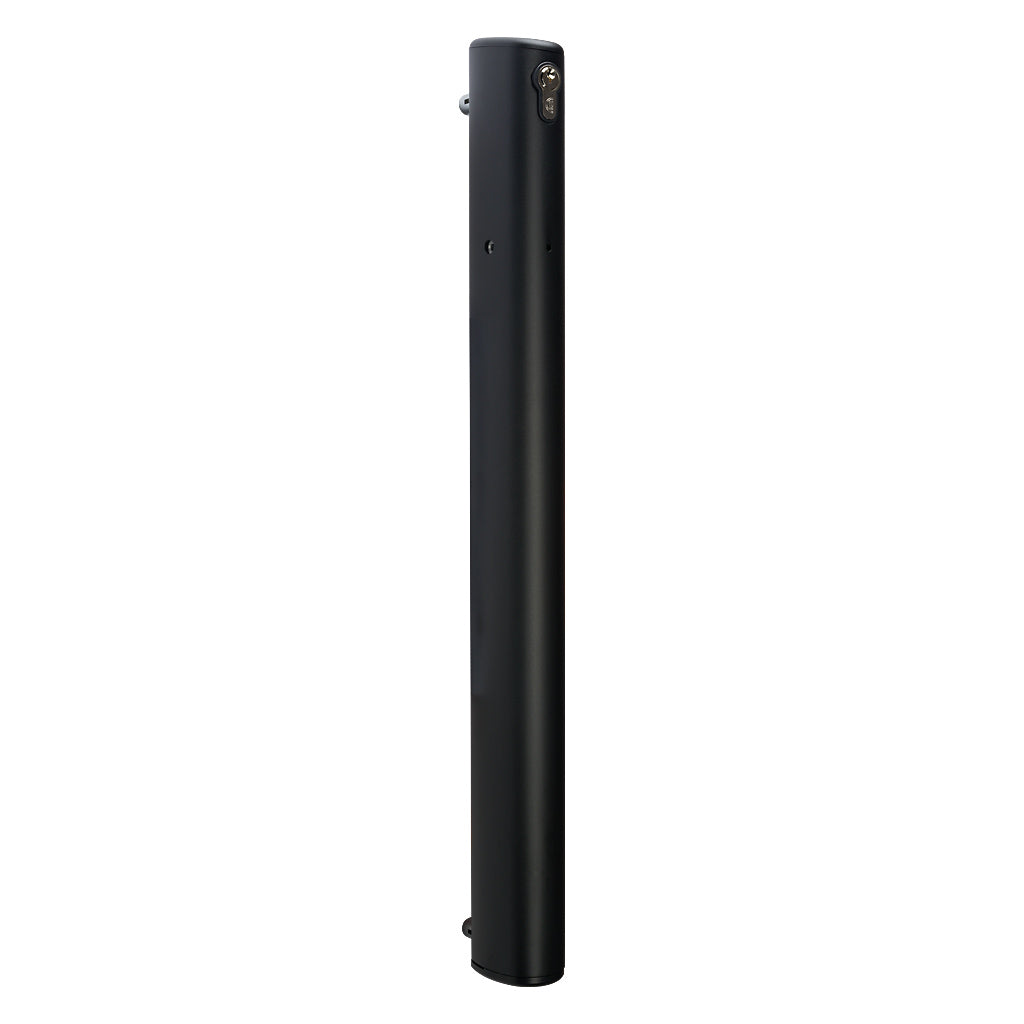

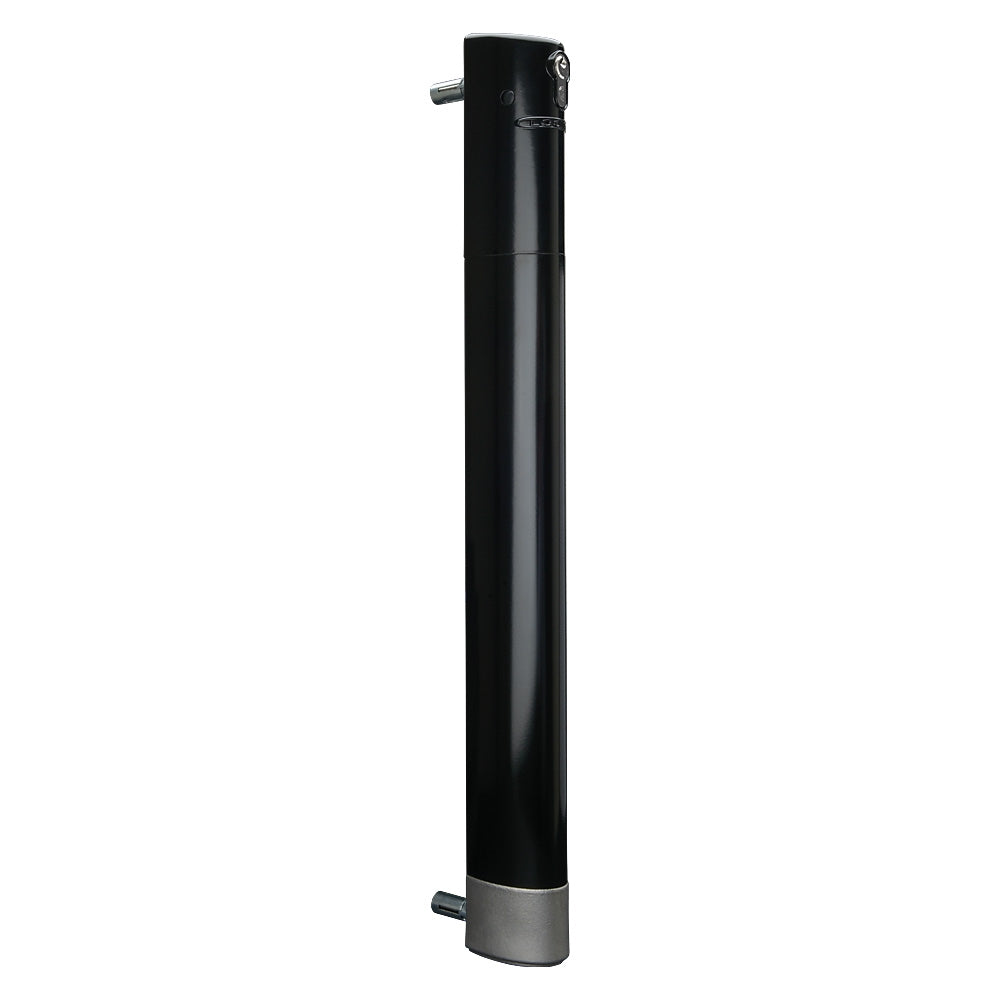

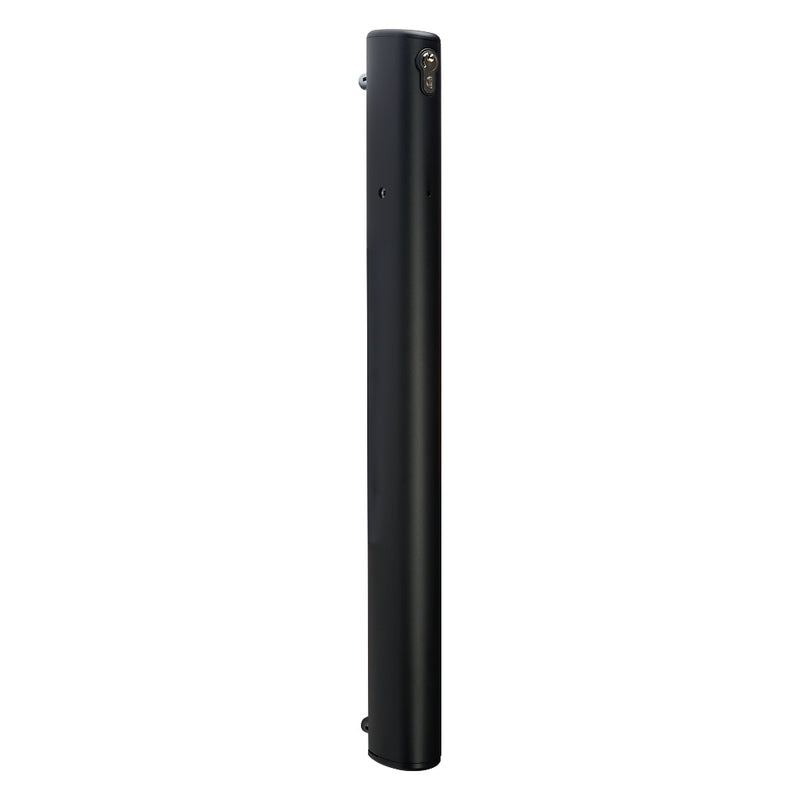

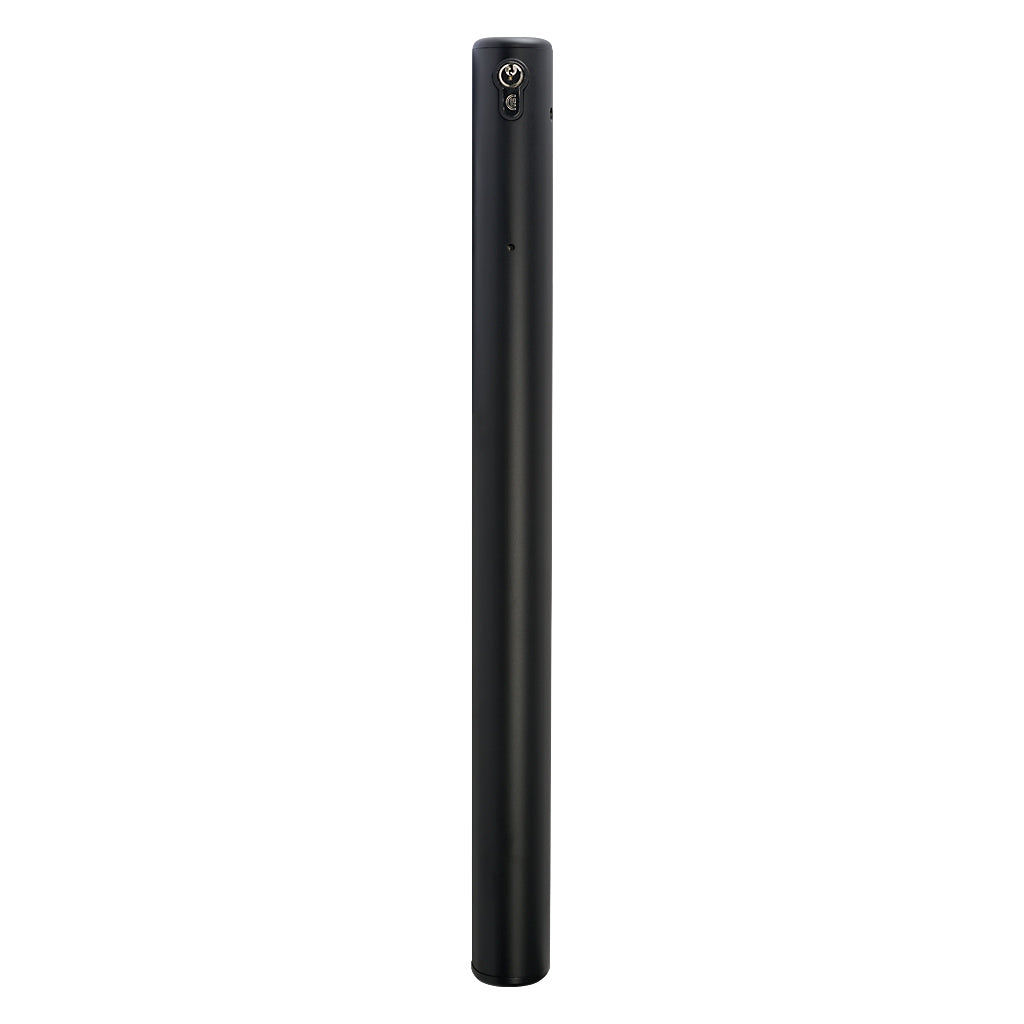

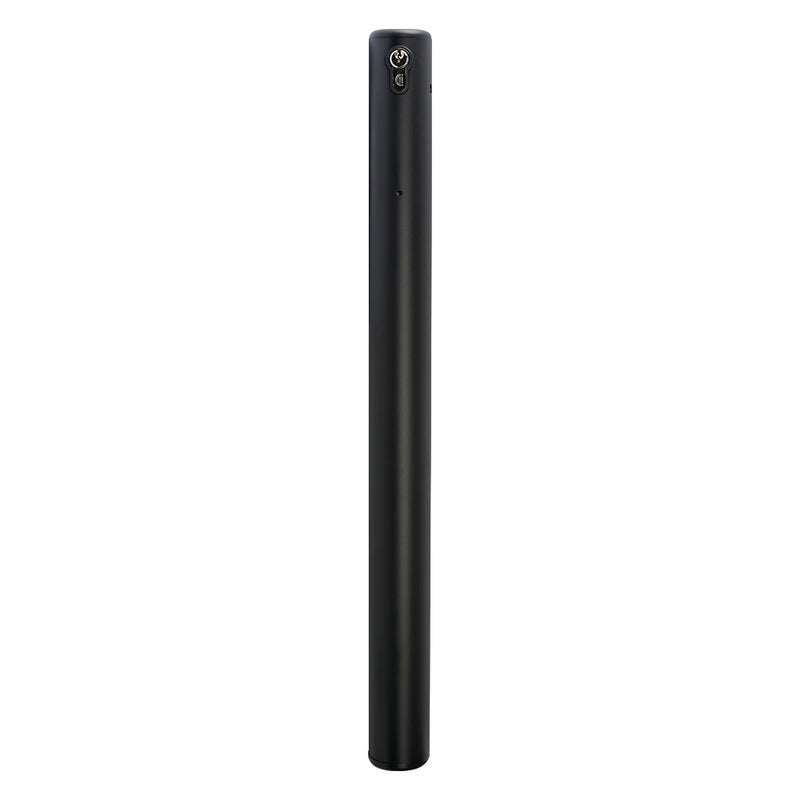

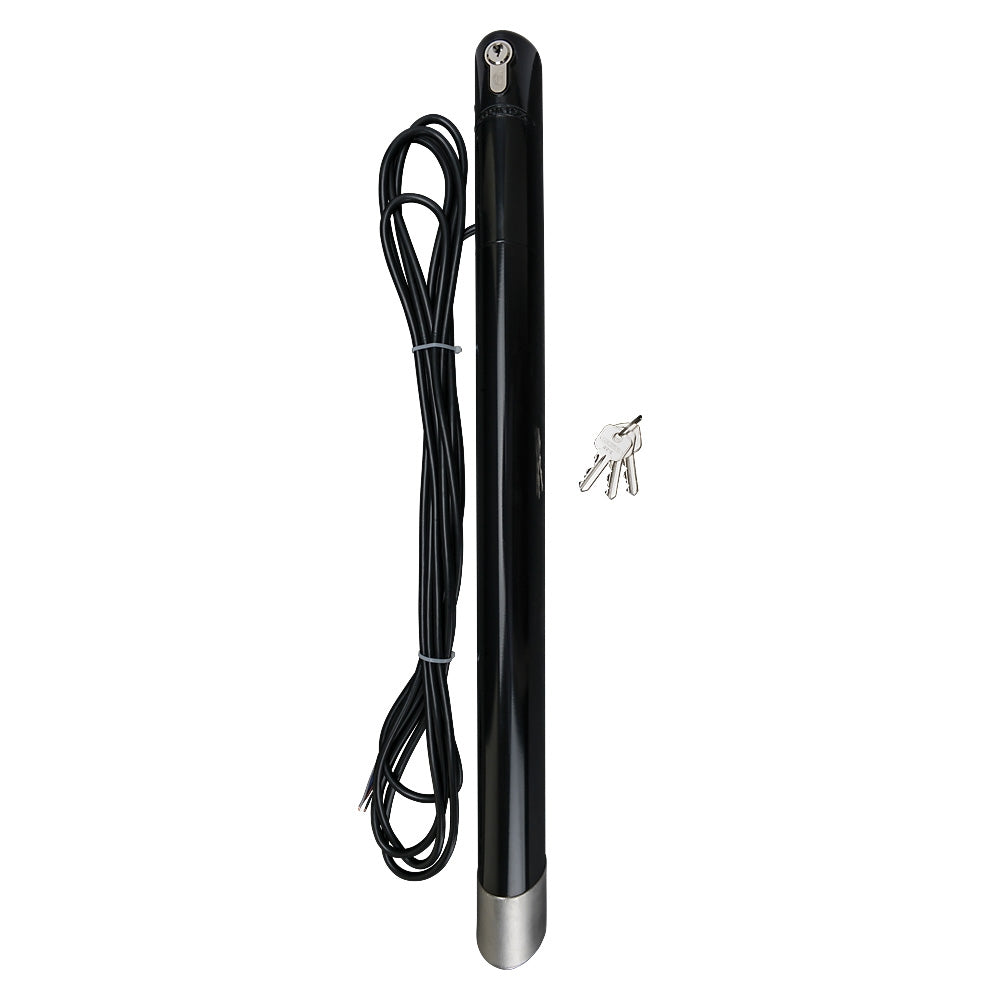

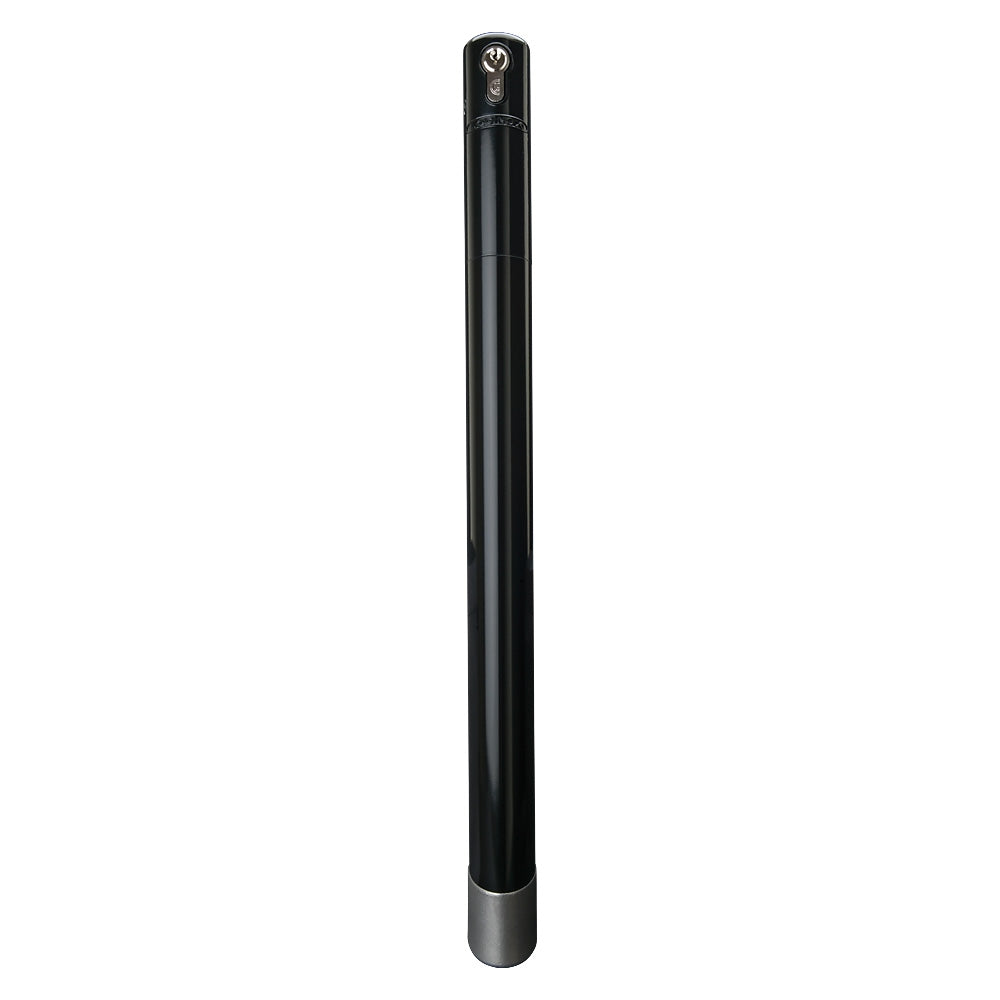

Locinox Electradrop Motorised Electrical Dropbolt Black 9005
- Vandal-proof, powder coated aluminium housing

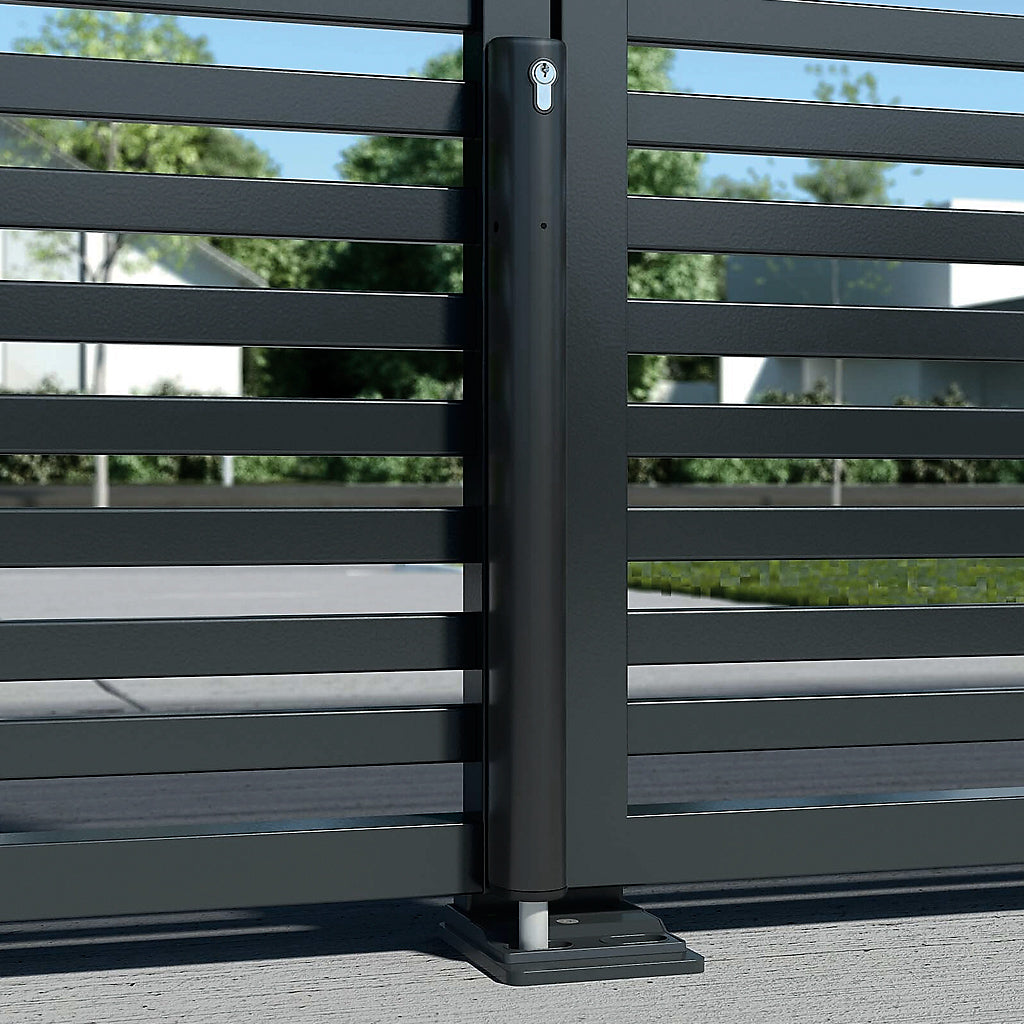

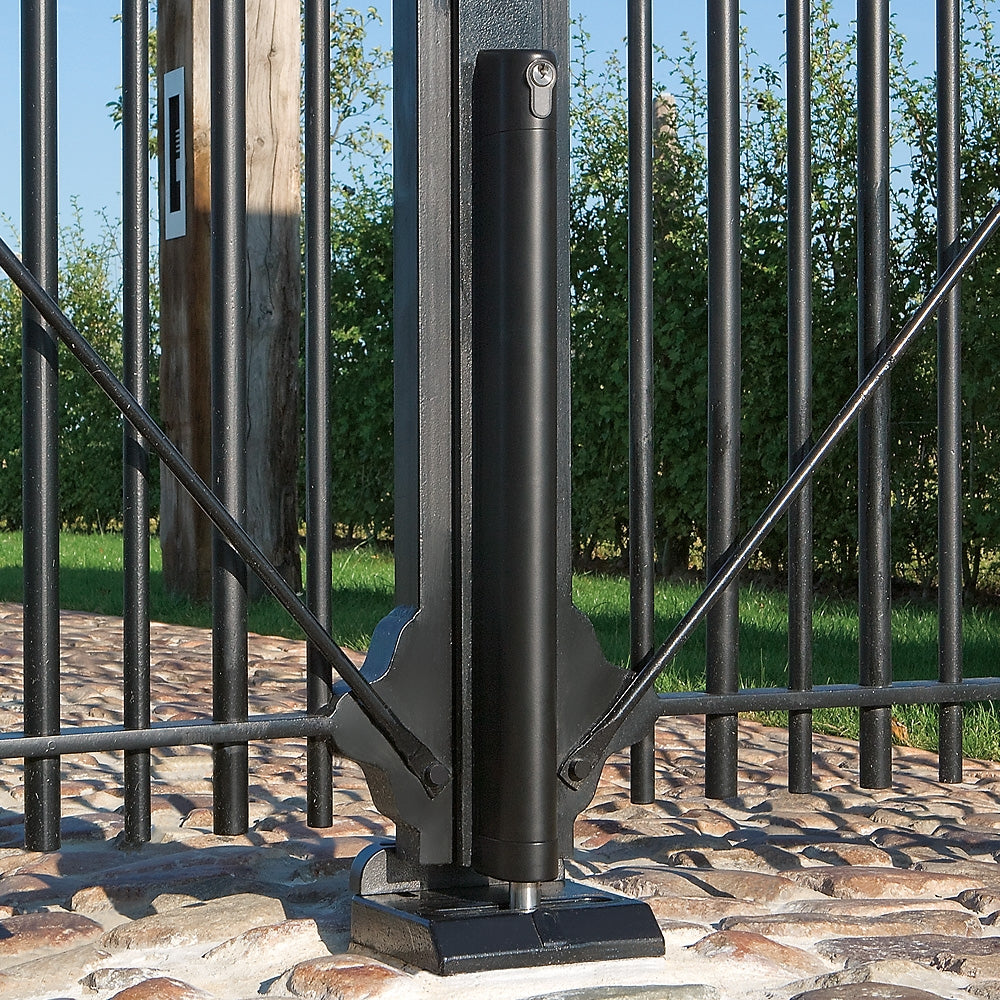

- To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
- Automatic detection and memorisation of the continuous or pulse signal
- Mechanical release possible (by key) in case of emergency
- Fitted with relay for drop bolt detection
- Obstacle detection with automatic stop of the drop bolt in case of a pressure exceeding 18 kg
- Throw: 115 mm
- Drop bolt diameter: 20 mm
- For gate profiles: 40 mm or more
- Vertical mounting
- Consumption: 25 W / Standby: 0,2 W

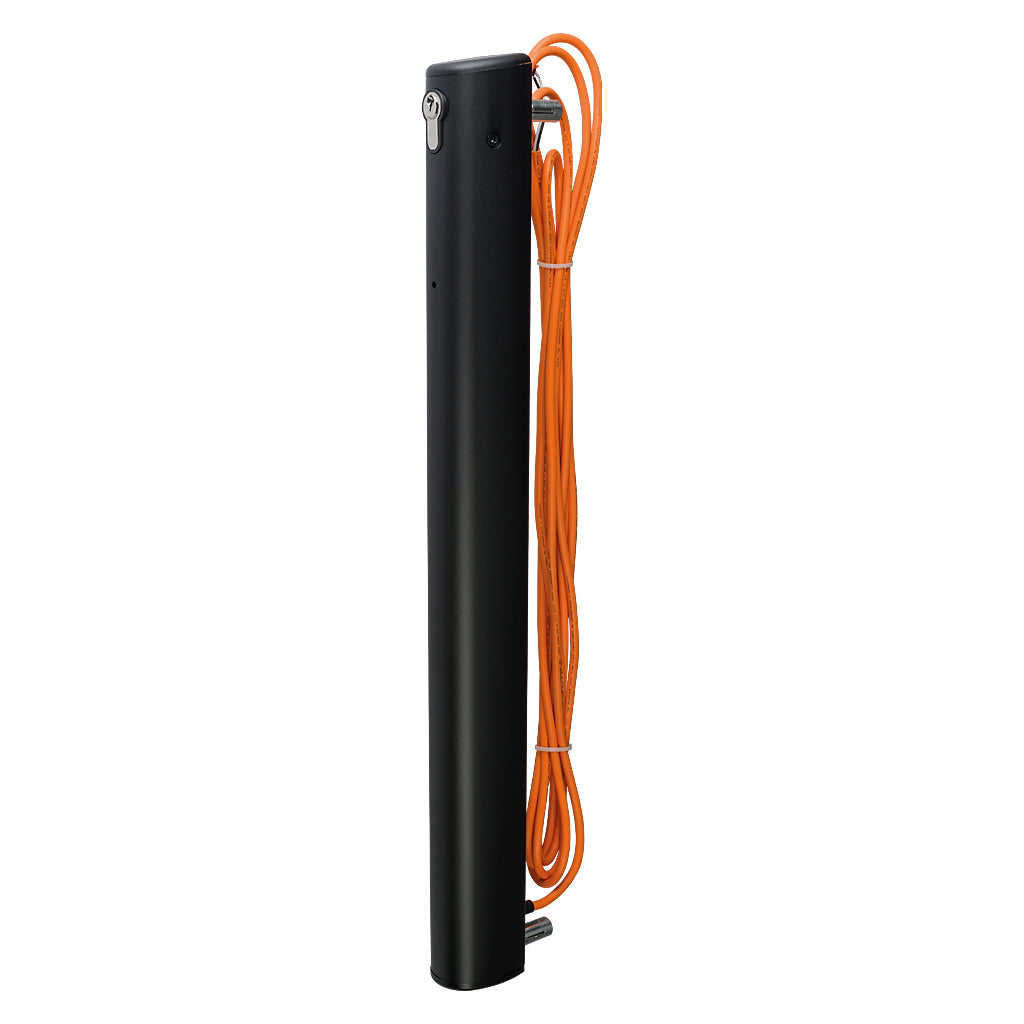

- 5 m cable included
- Included: 3012-37-STD cylinder
- To connect to a Locinox DC-POWER-24V-25W power supply
Specifications
weight: 4.21 kg
length: 585.0mm
width: 65.0mm
depth: 20.0mm
