LOCEDBS Locinox Electradrop Motorised Electrical Dropbolt Silver

Product Code: LOCEDBS

Sale price£300.00 Ex VAT
Sale price£360.00 Incl VAT
9 in stock

£9.95 ex VAT next business day delivery when ordered before 12pm to most of UK. FREE on orders over over £300 ex VAT. View full delivery terms.

Collection available at DC Iron Newcastle upon Tyne

Usually ready in 1 hour

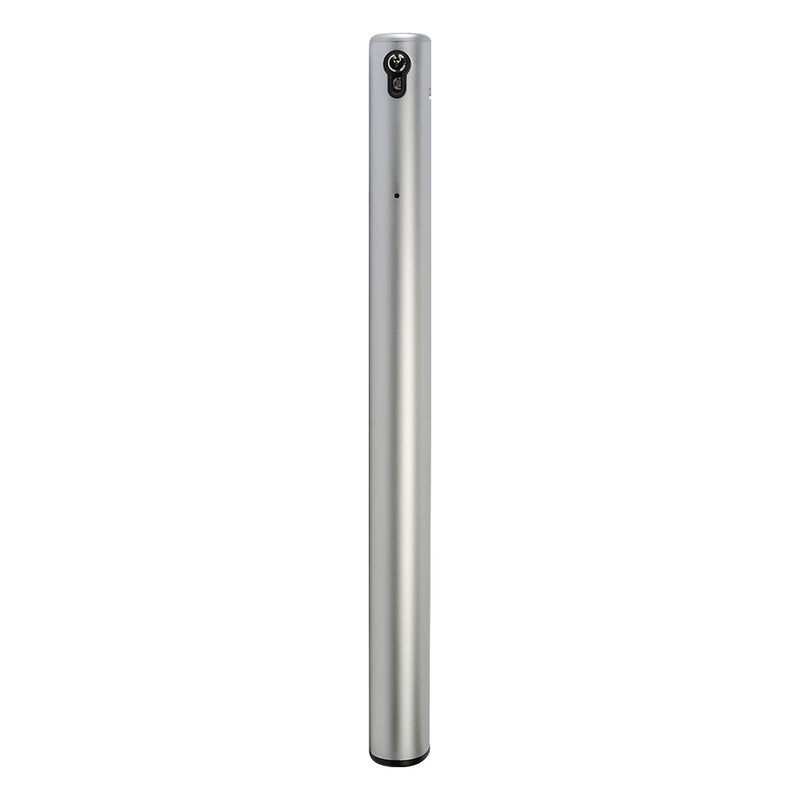

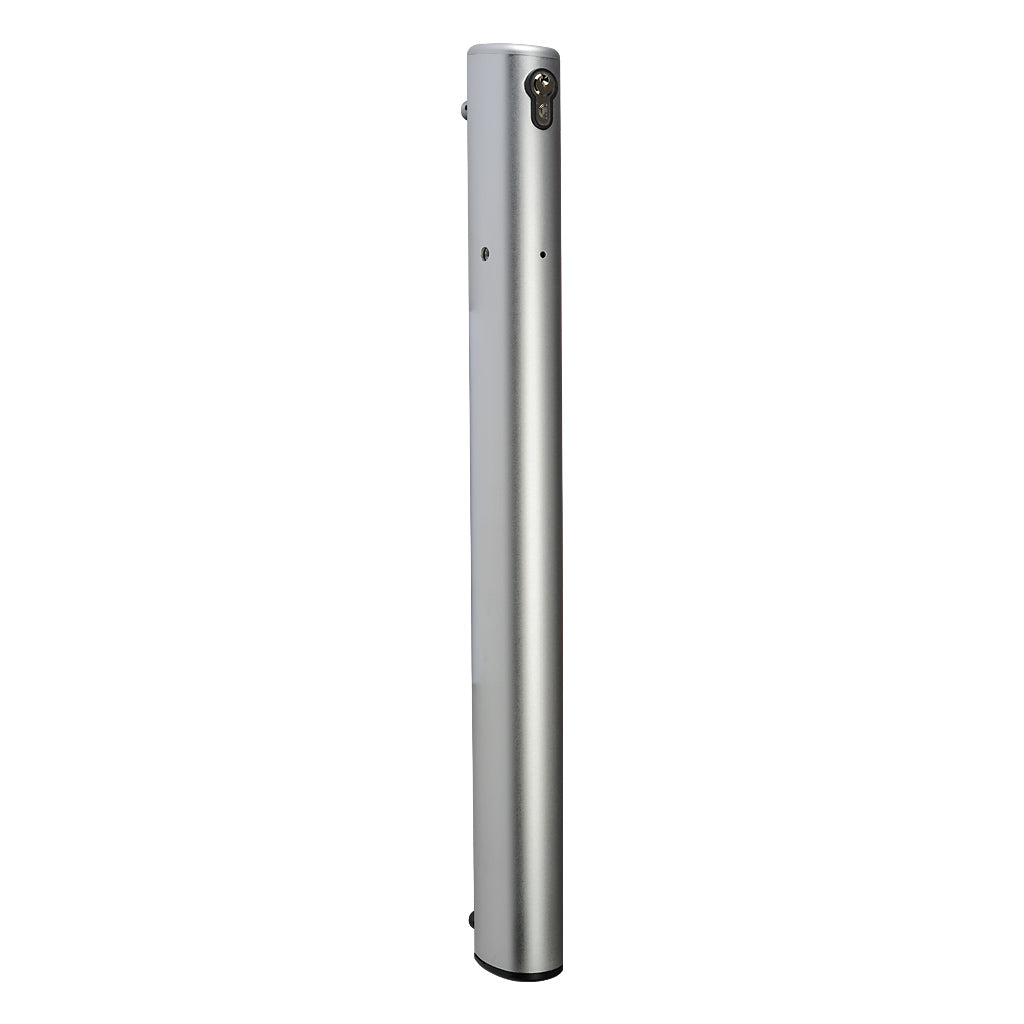

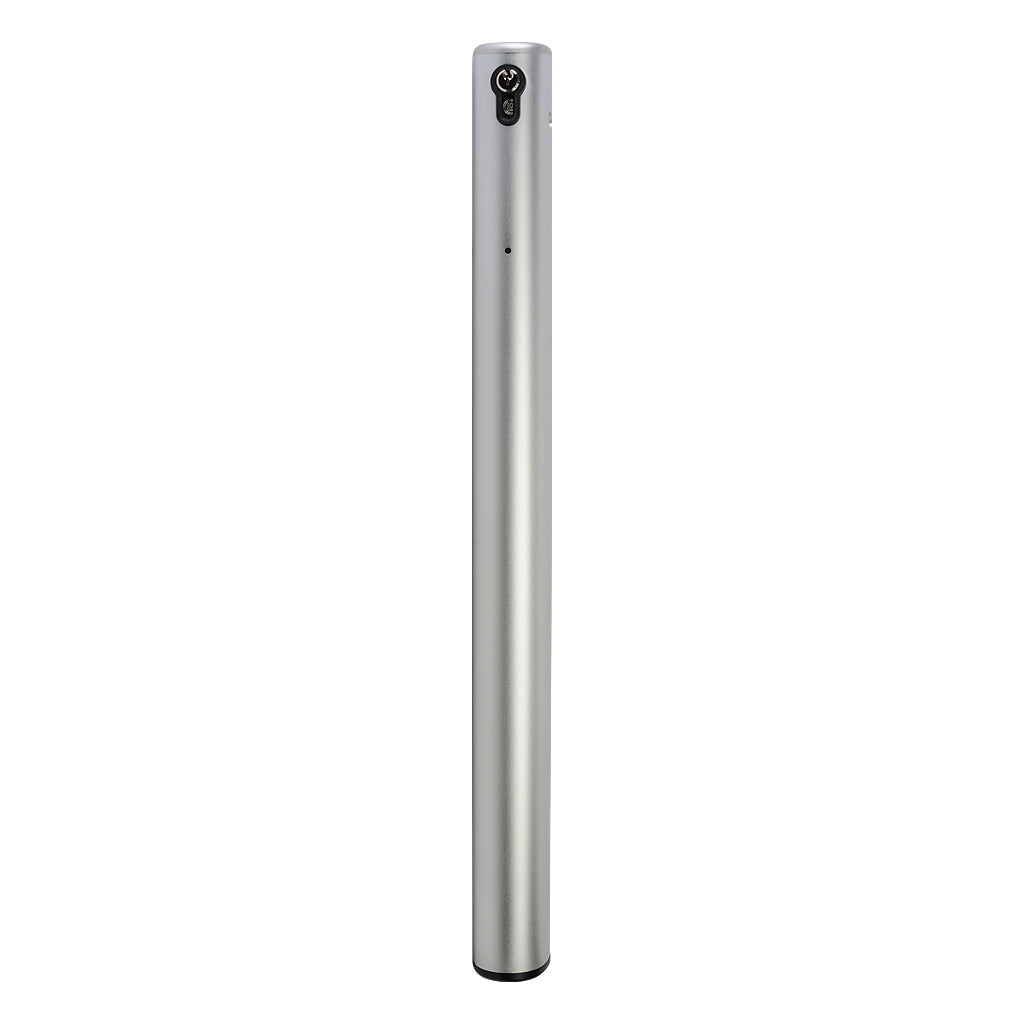

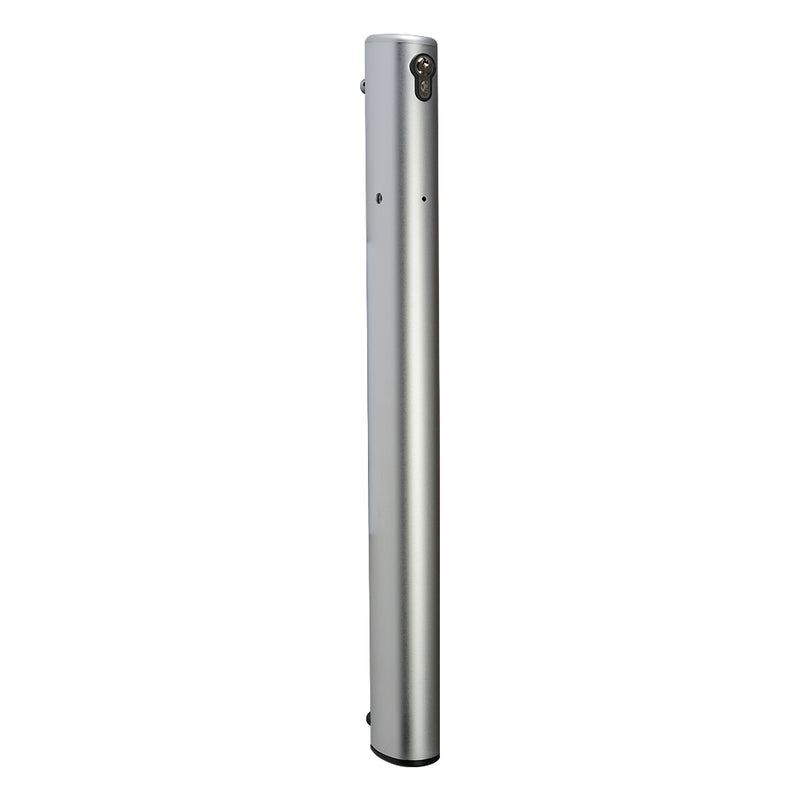

Locinox Electradrop Motorised Electrical Dropbolt Silver

  • Vandal-proof, powder coated aluminium housing

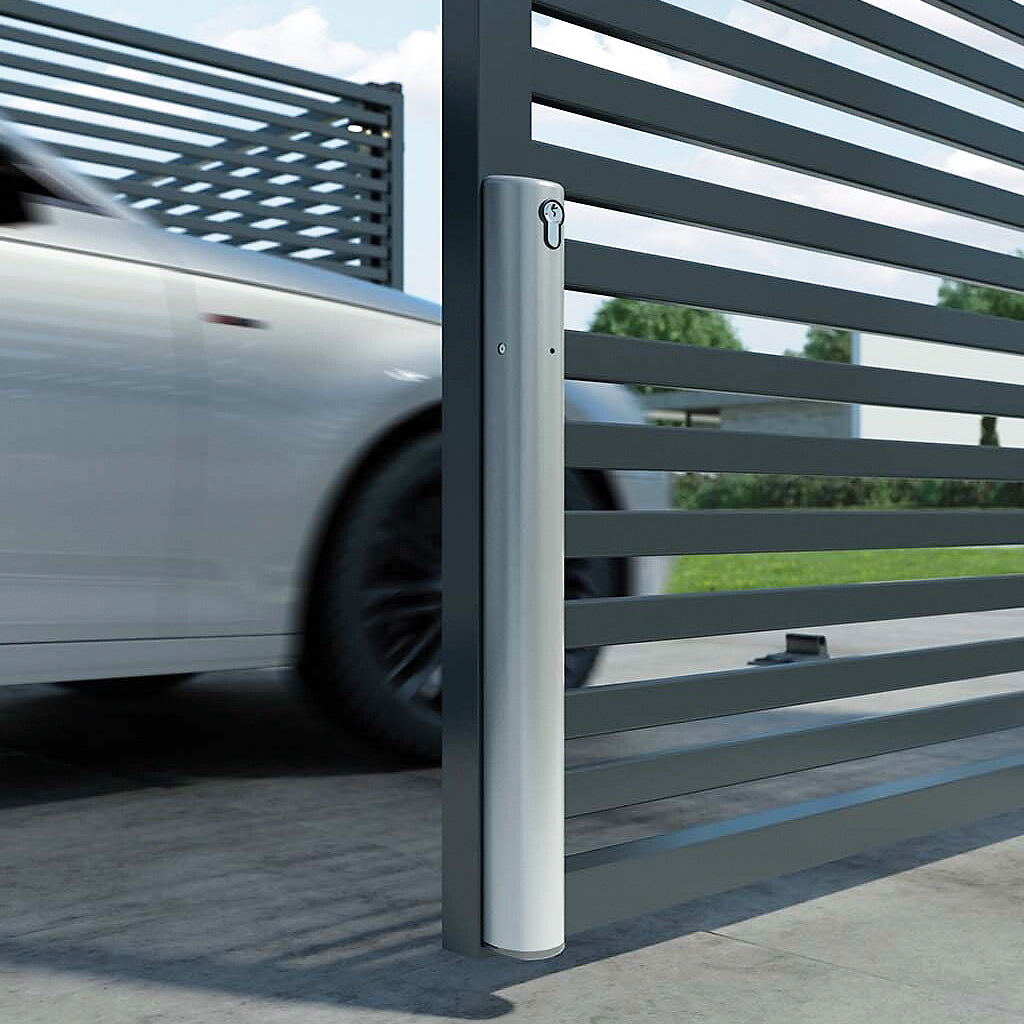

  • To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
  • Automatic detection and memorisation of the continuous or pulse signal

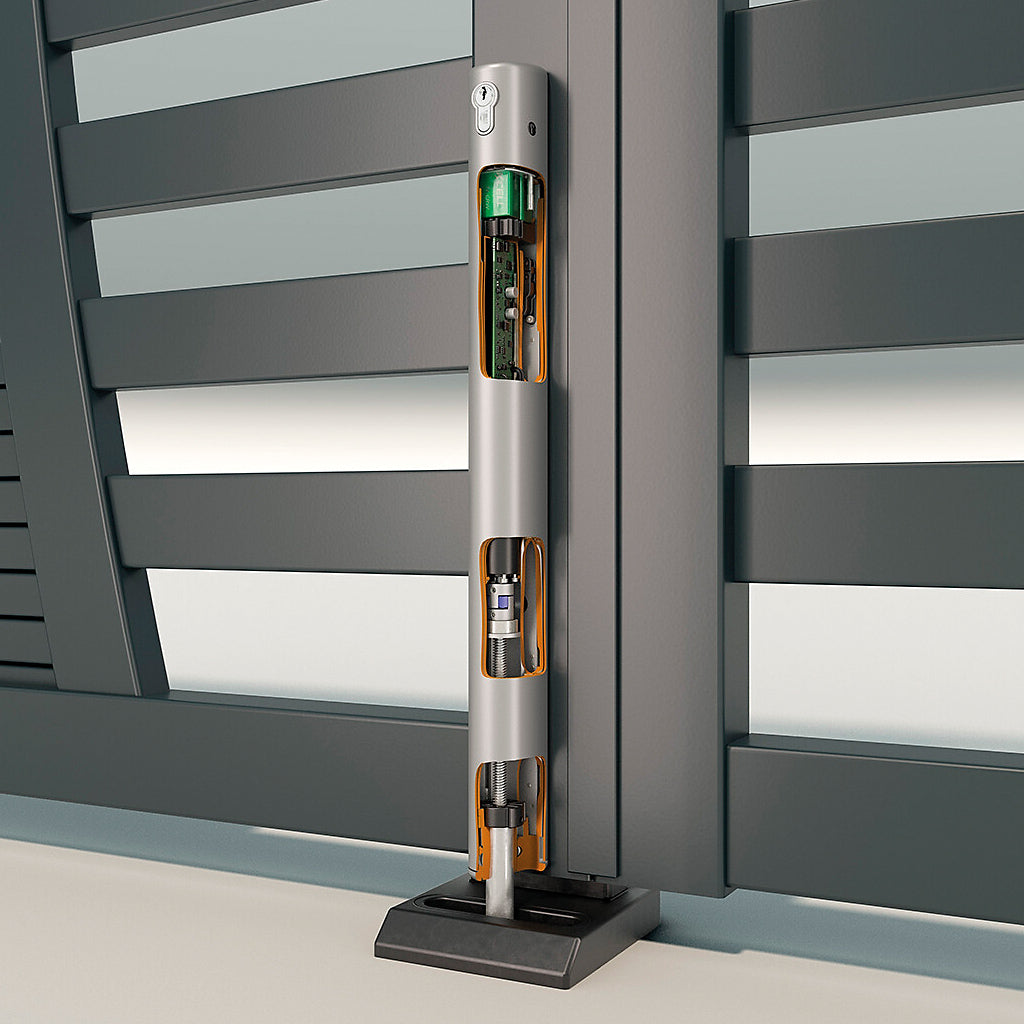

  • Mechanical release possible (by key) in case of emergency
  • Fitted with relay for drop bolt detection
  • Obstacle detection with automatic stop of the drop bolt in case of a pressure exceeding 18 kg
  • Throw: 115 mm
  • Drop bolt diameter: 20 mm
  • For gate profiles: 40 mm or more
  • Vertical mounting
  • Consumption: 25 W / Standby: 0,2 W

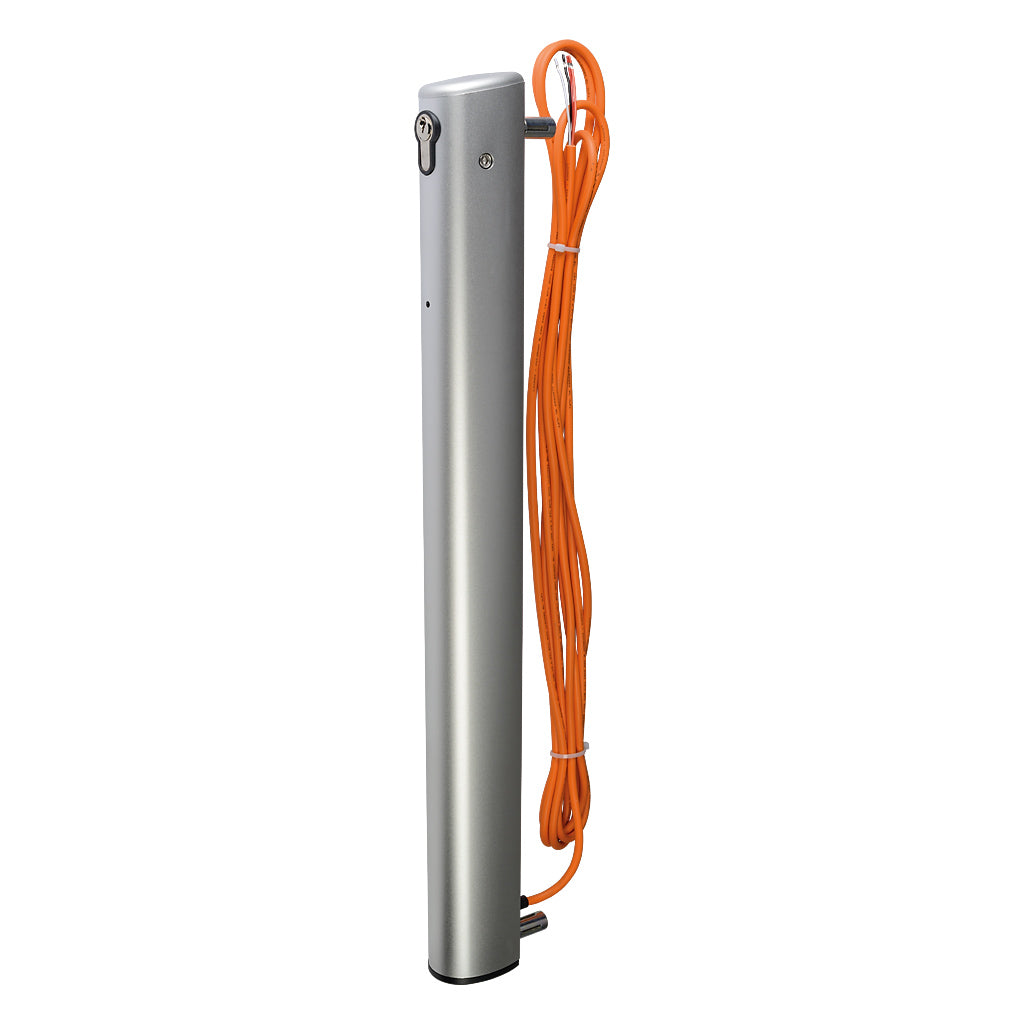

  • 5 m cable included
  • Included: 3012-37-STD cylinder
  • To connect to a Locinox DC-POWER-24V-25W power supply



weight: 4.21 kg
length: 585.0mm
width: 65.0mm
depth: 20.0mm

This product is on page 107 of Catalogue 27
