Description

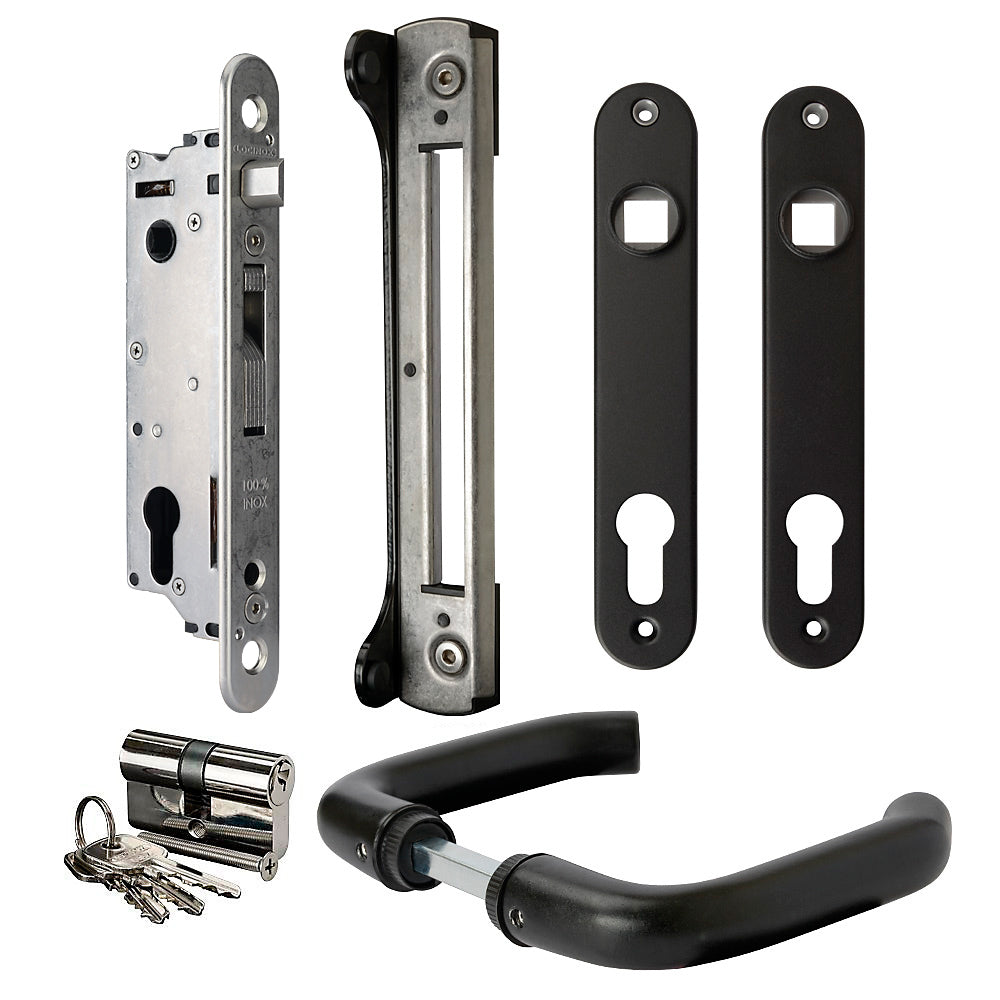

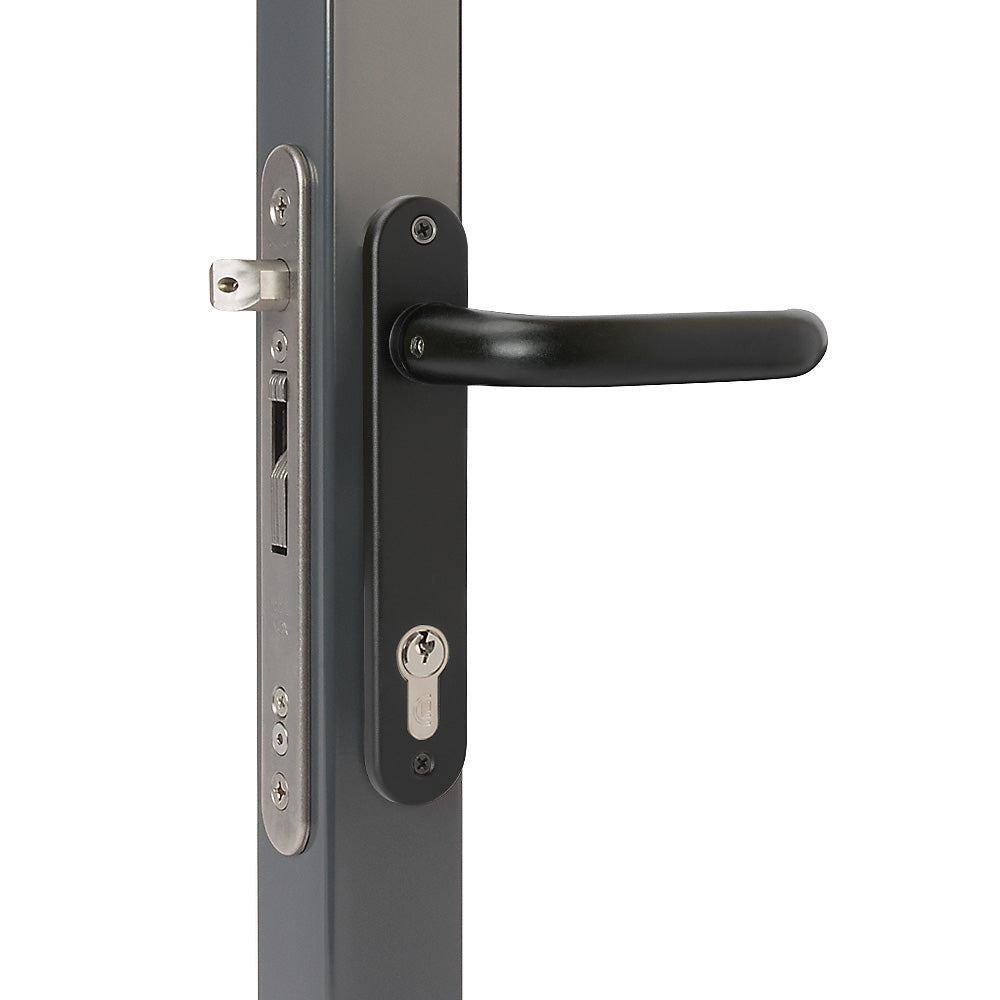

Black Fiftylock Kit To Suit 50mm Box Section Powder coated black 9005

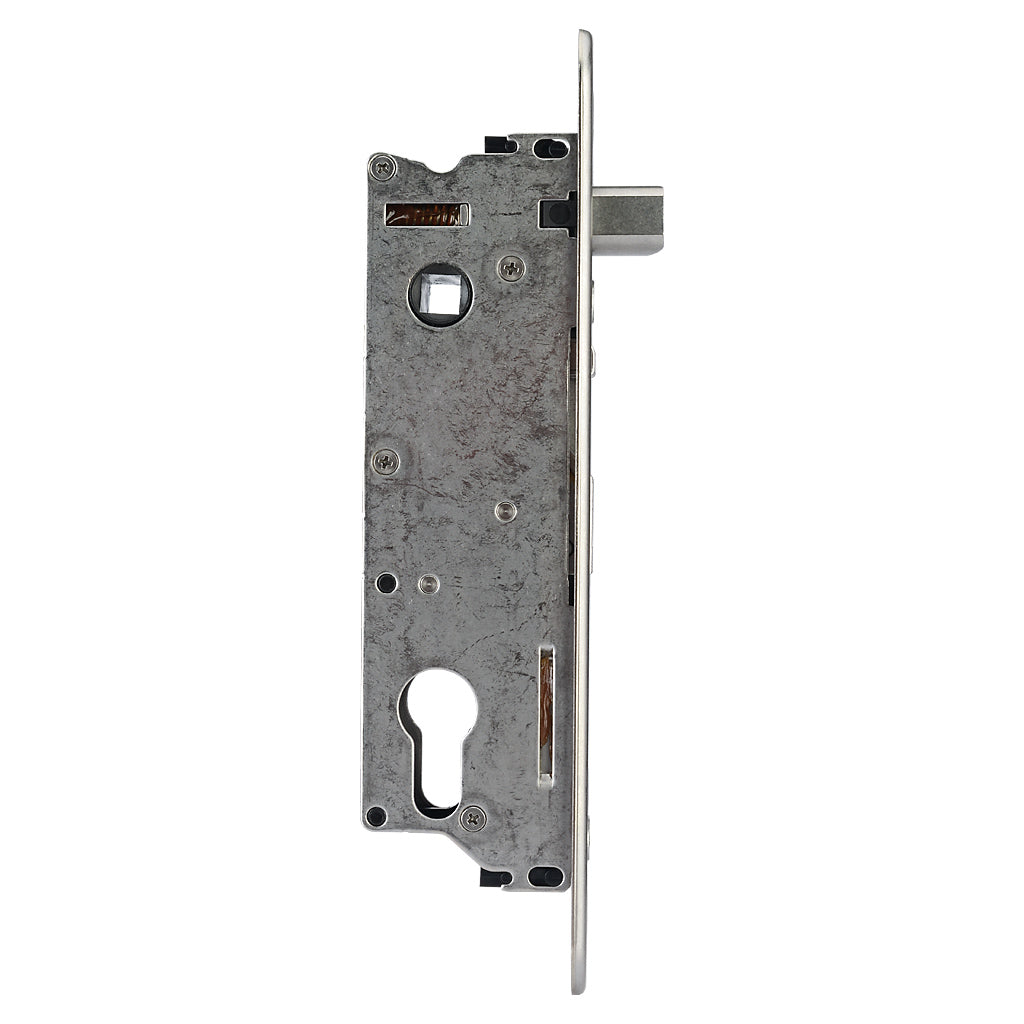

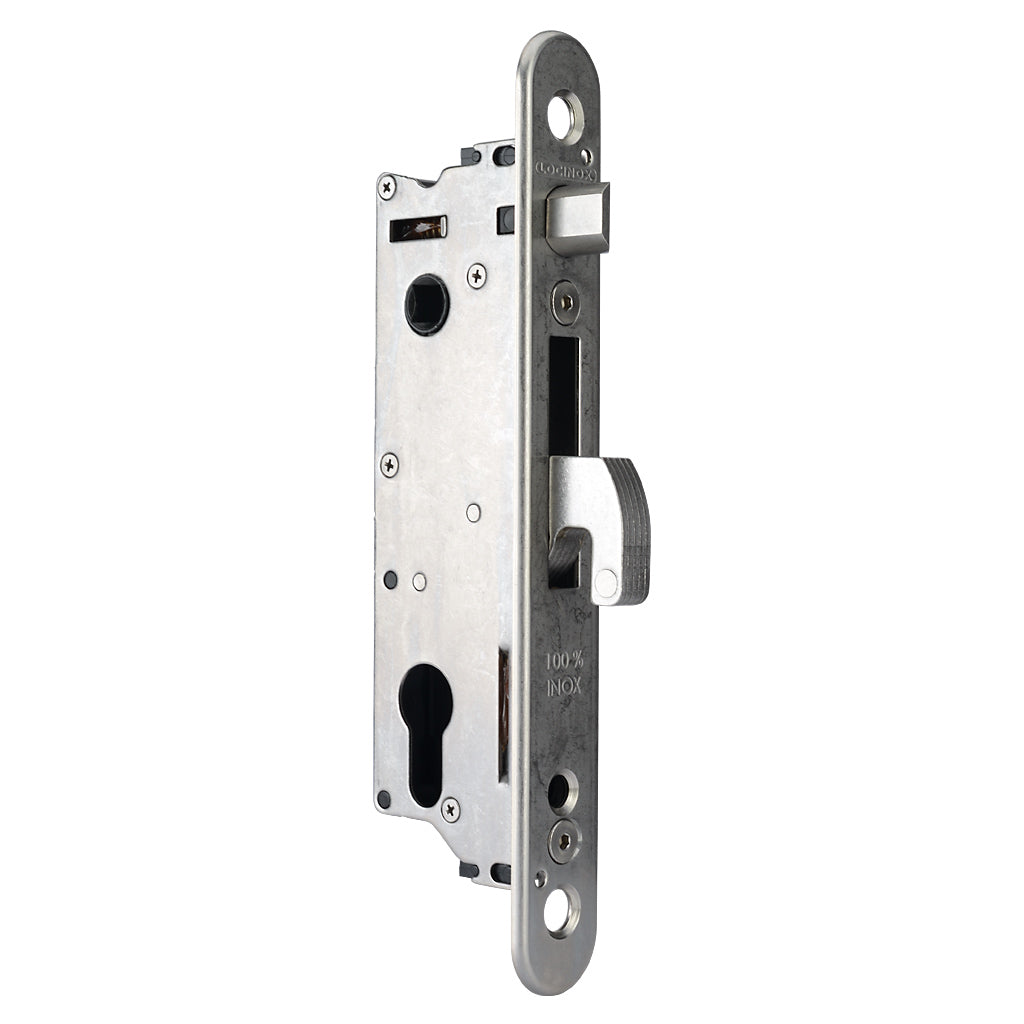

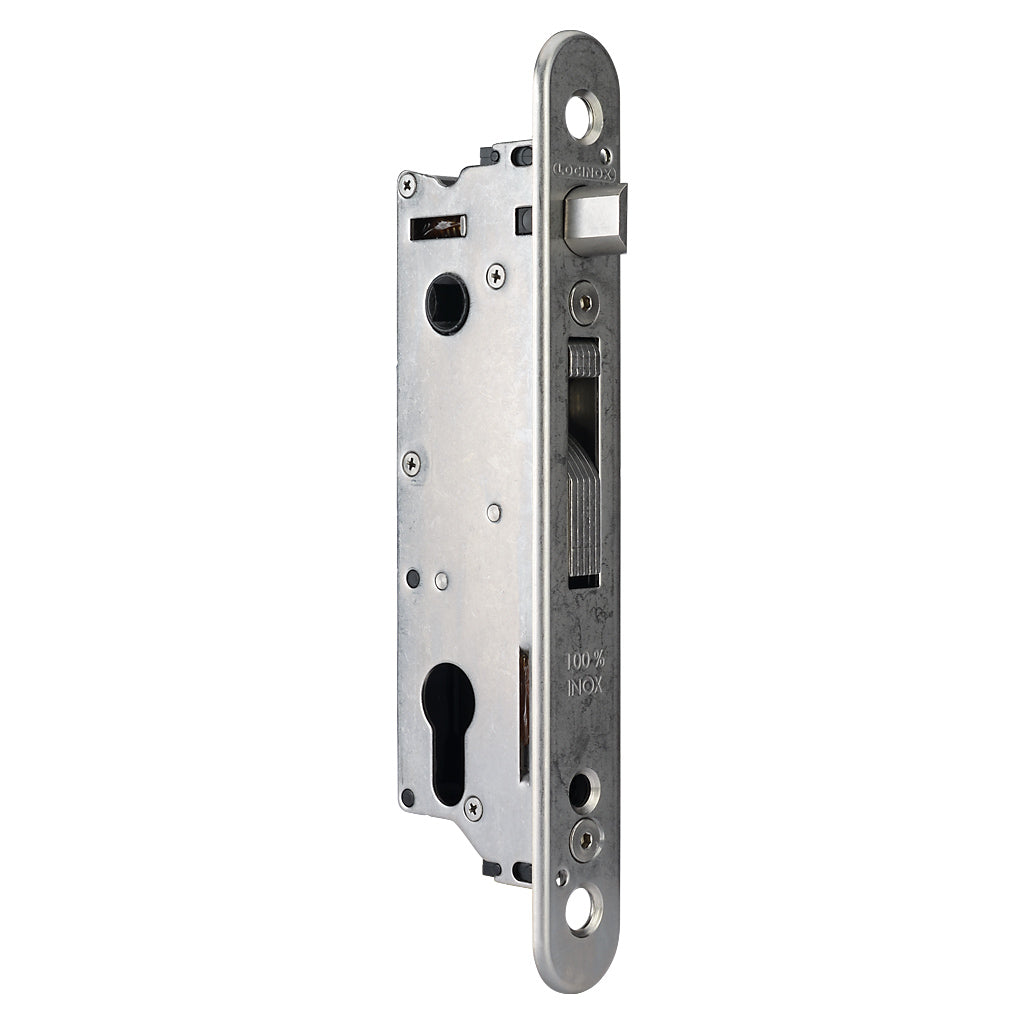

- Stainless steel lock mechanism with cover plate against dirt penetration
- Mechanism, hook, frontplate, latchbolt: stainless steel
- Backset 30 mm, for mounting in profiles of 50 mm depth or more
- Continuous adjustment of the daybolt up to 10 mm without dismounting the lock
- Key-operated self-latching bolt
- Easy left or right changing of the self-latching daybolt
- Throw of the hook: 21 mm
- The center distance between the cylinder and the handle: 92 mm
- Compatible with all Europrofile cylinders
- Handles to be ordered separately
- Optional: cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel
- UNIWING-compatible

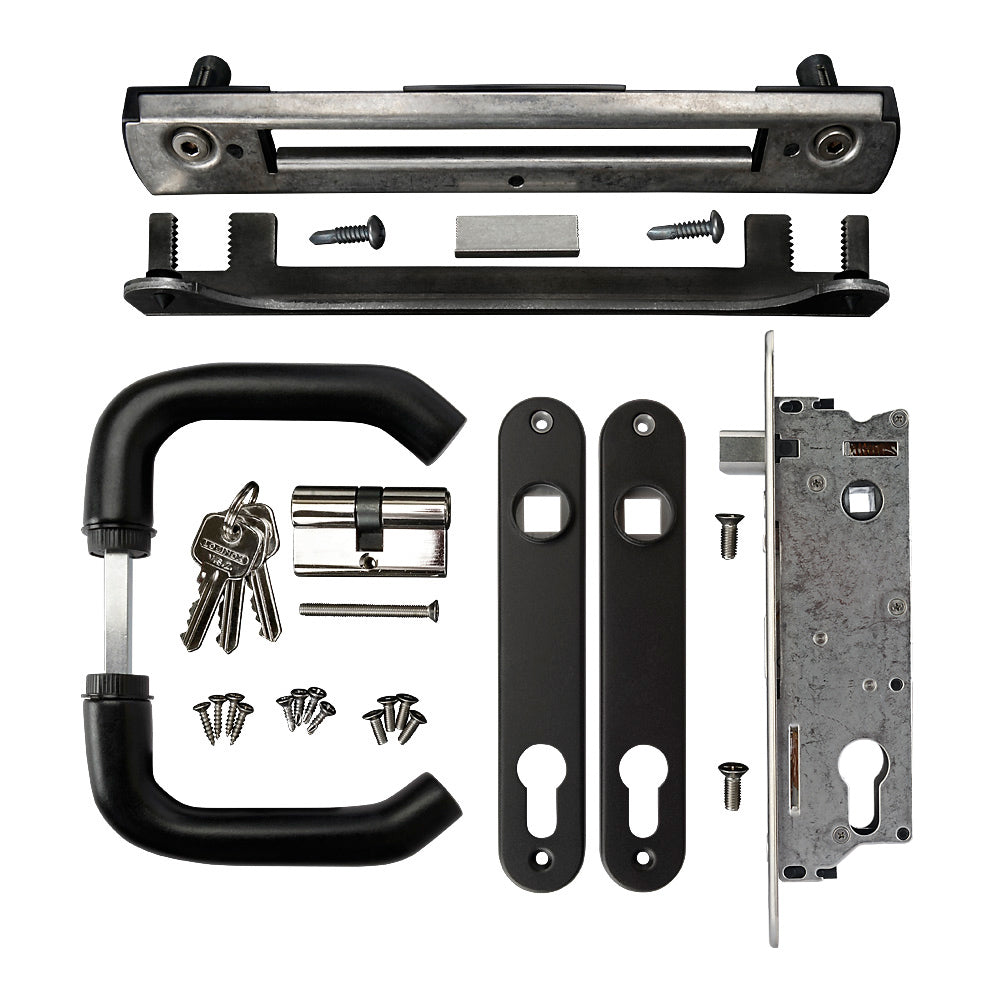

- available as a full kit including profiled box section GLF3B
Specifications
weight: 1.6 kg
length: 220.0mm
width: 47.0mm
depth: 21.0mm
