Description

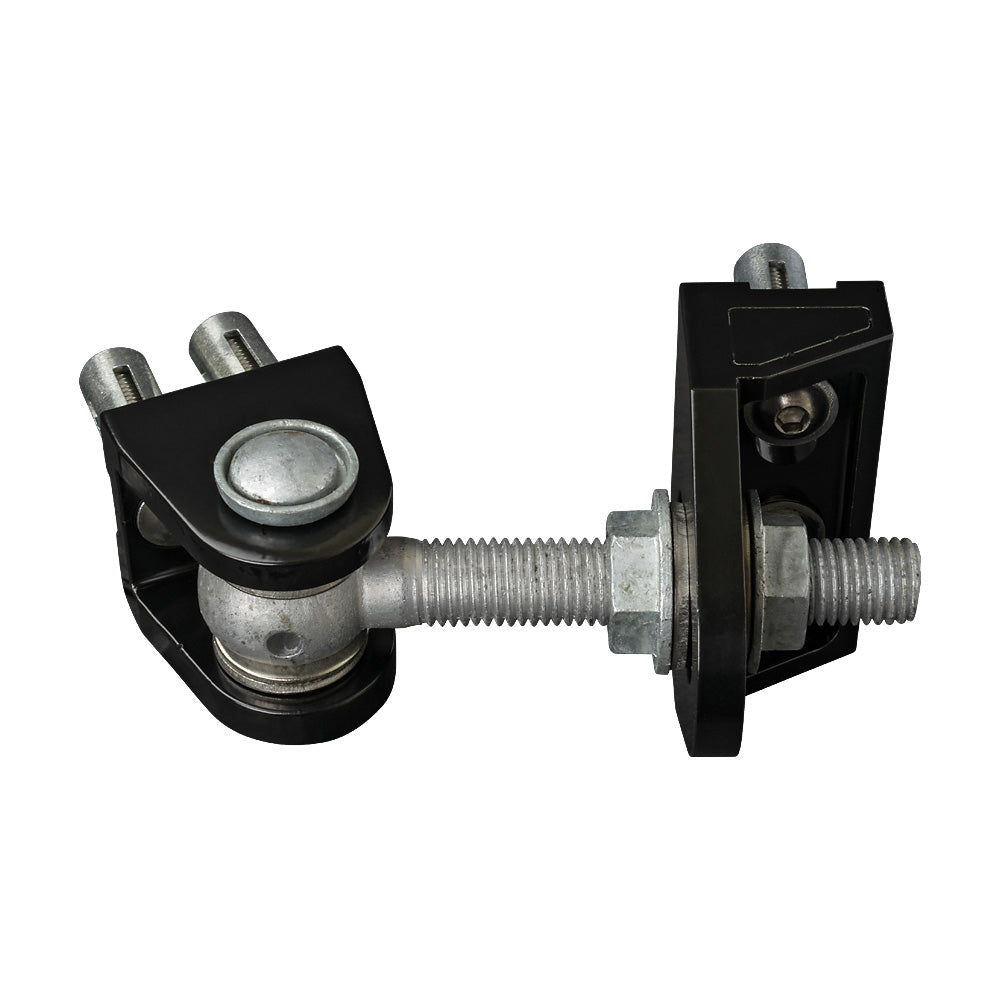

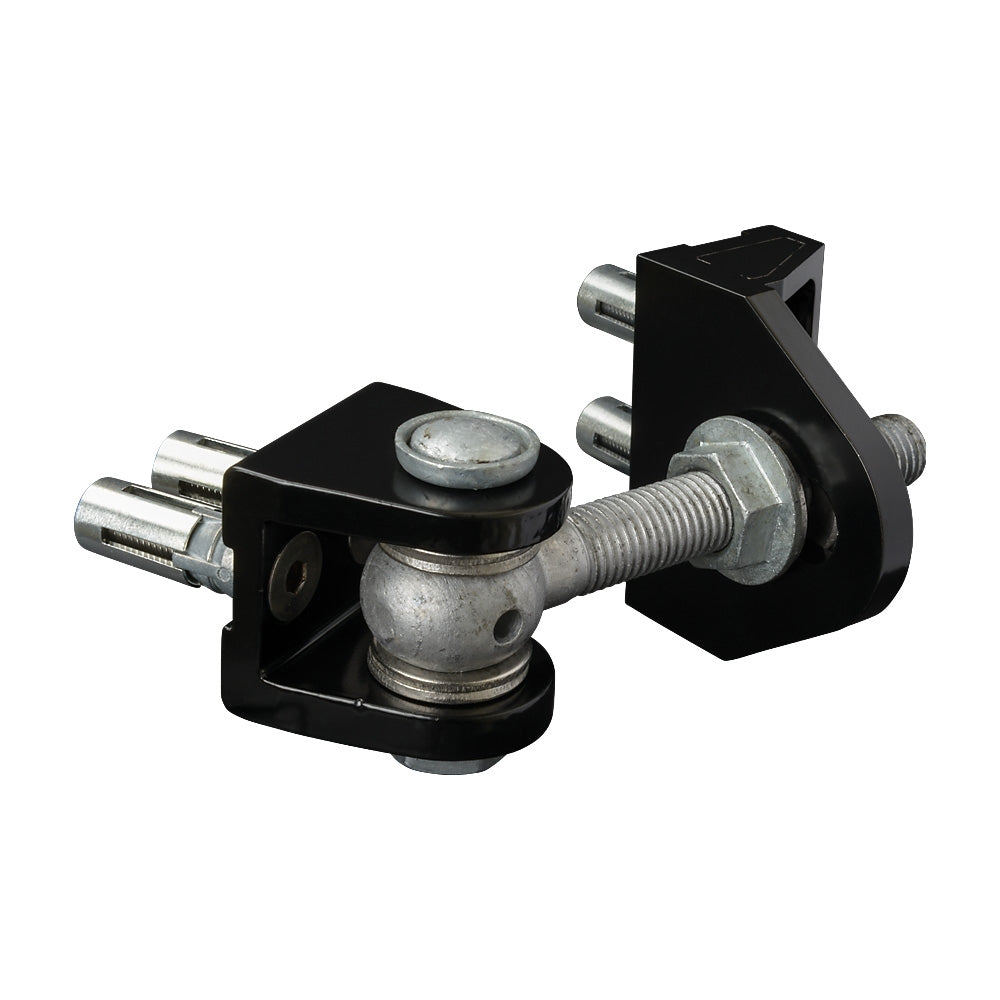

Locinox 180° Bolt On 4D Adjustable Hinge (Pair) 16mm Black 9005
180° hinge which can quickly be mounted without any welding being required.
It offers all advantages of the GBMU4D range: vandal-proof, adjustment of height, depth and distance between gate and post, left/right interchangeable so it can be used for both left and right turning gates.

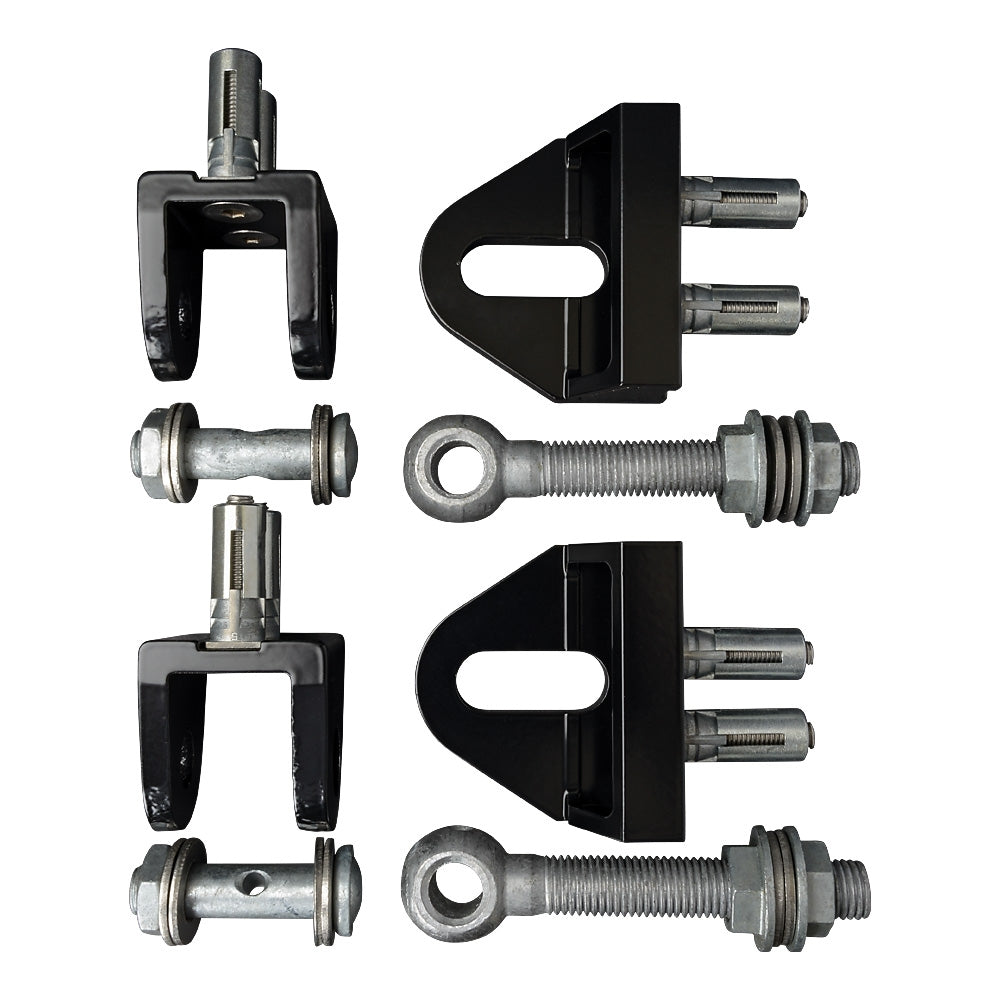

- Easy to fix with Quick-Fix or bolt through fixing (bolt on both ends)
- Vandal-proof eyebolt & crossbolt
- 180° opening
- 15 mm adjustable in height
- 25 mm adjustable in depth
- U clamp and GRIP in aluminium
- Hot-dip galvanized eyebolt and crossbolt
- Max width of the gate: 2000 mm
Specifications
weight: 1.63 kg
length: 110.0mm
width: 50.0mm
depth: 46.5mm
Product Documentation
LOCGBM6 Product Dimensions
