Description

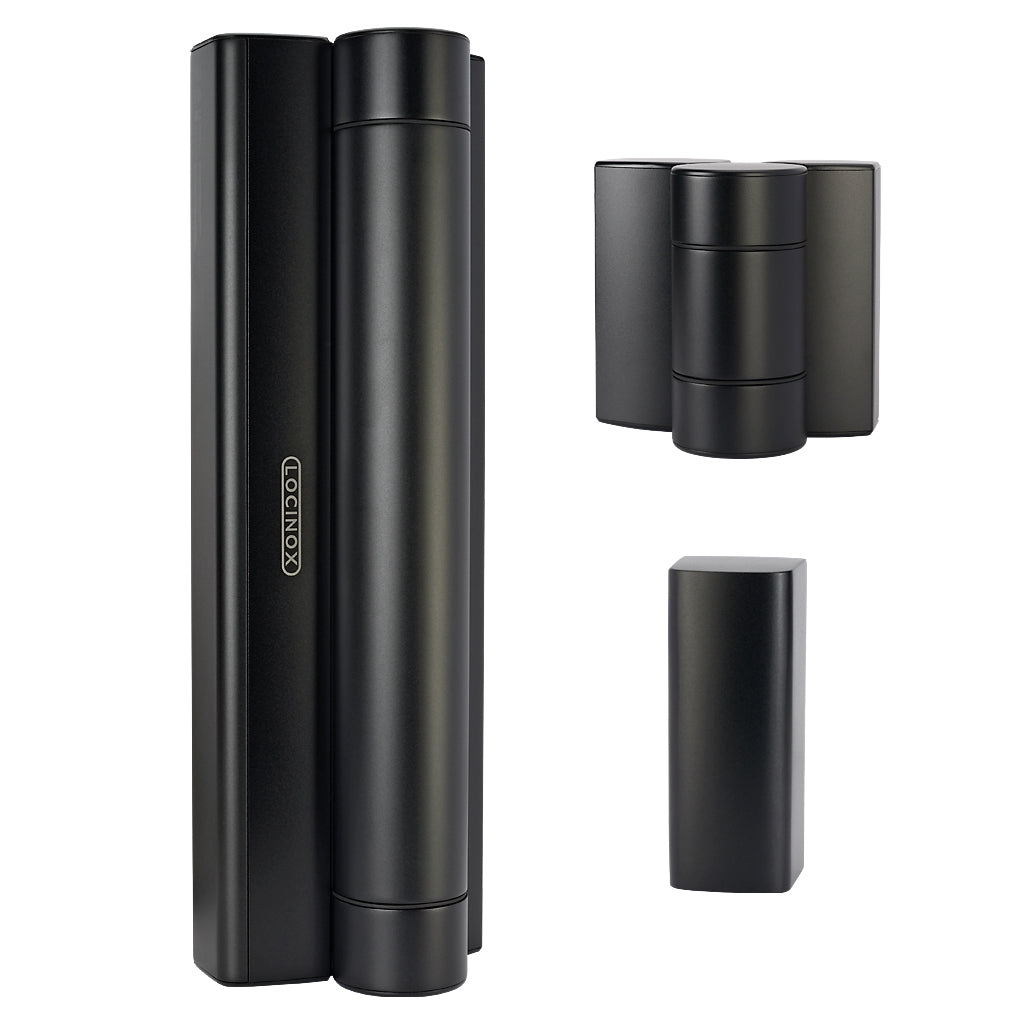

Locinox Magnus Motorised Hinge & Closer For Pedestrian Gates.
- Motorised gate closer with integrated electronics
- 100 Nm torque
- Fits on post profiles from 60mm and gate profiles from 40mm
- Steel gear box
- Anodized aluminium cover

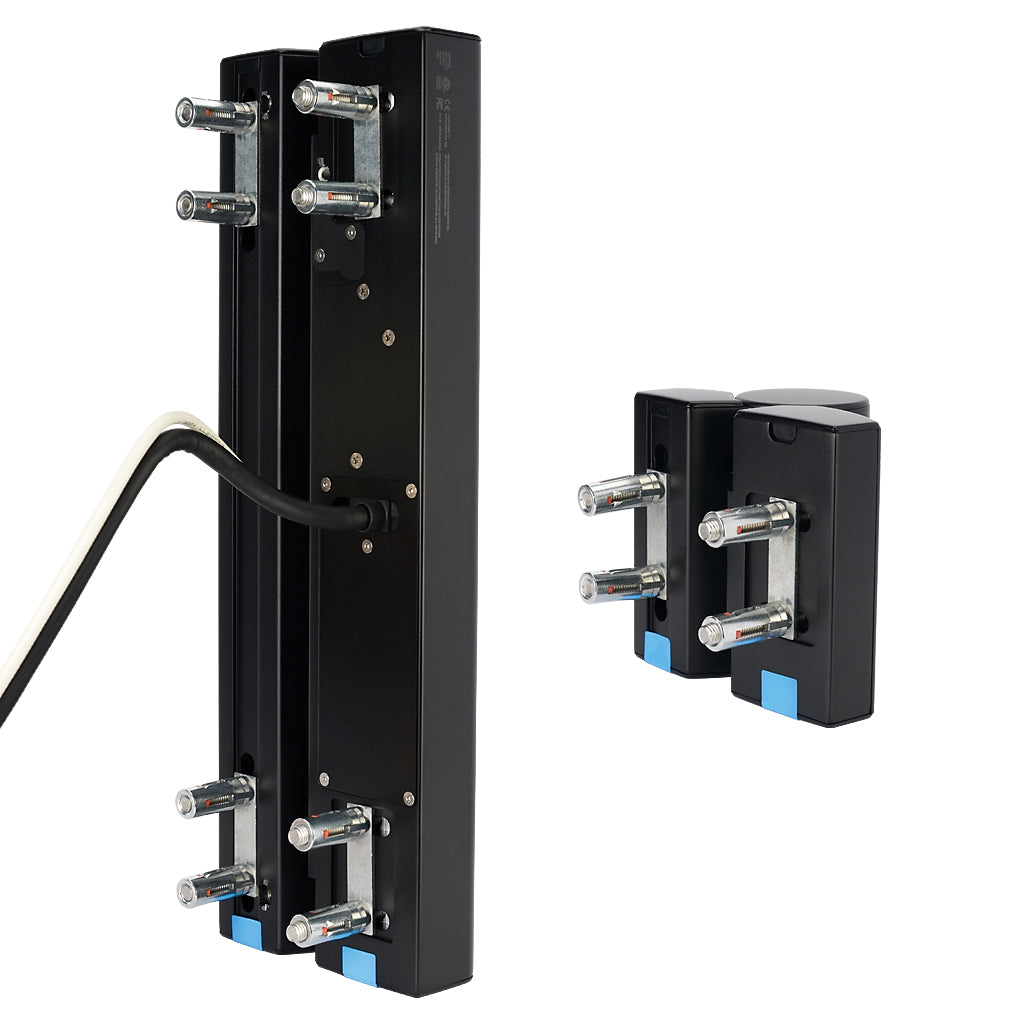

- Fast and easy fixing with Quick-Fix
- ETL-tested
- Input main power supply: 110 AC to 240V AC
- Motor voltage: 24V DC

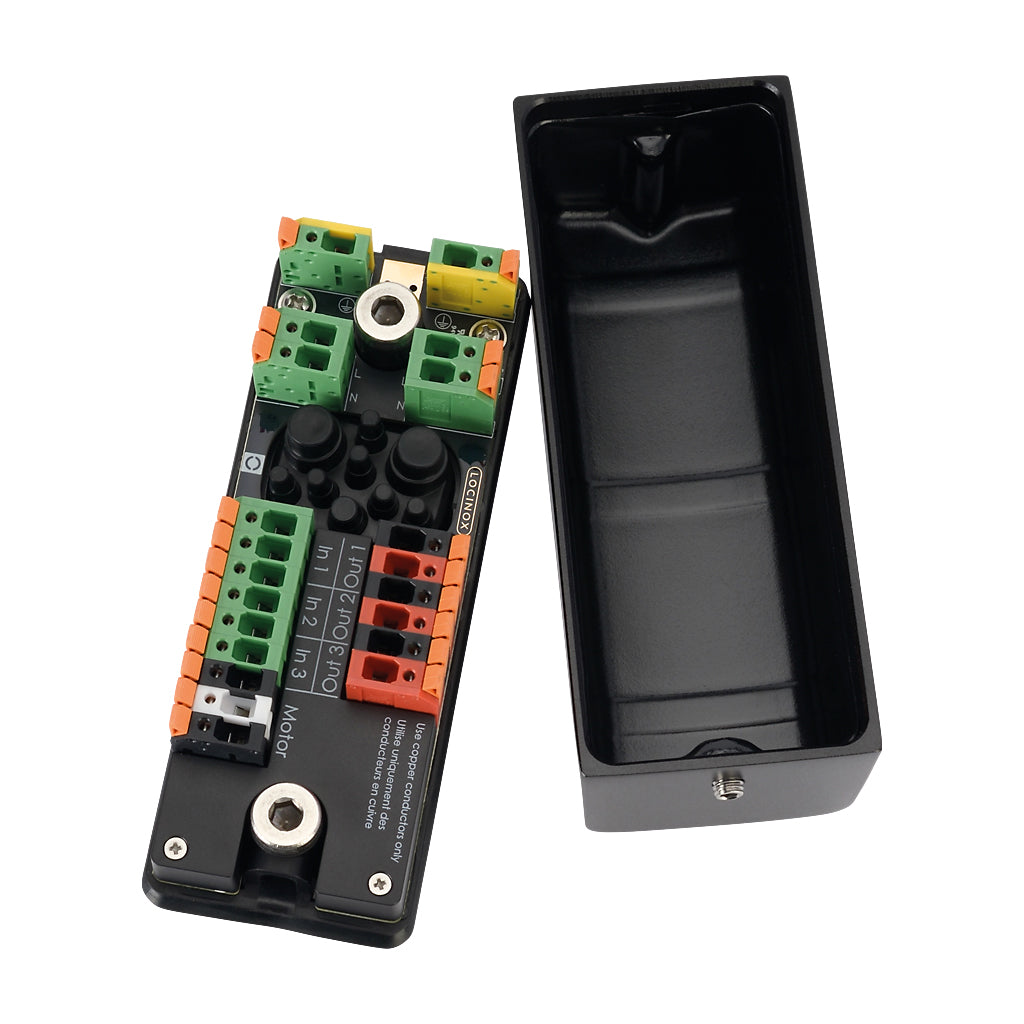

- External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
- Automated obstacle detection with reverse function
- Brushless motor: long lifespan and intensive usage
- Reversible motor with backdrivability for easy manual use - to be combined with a lock

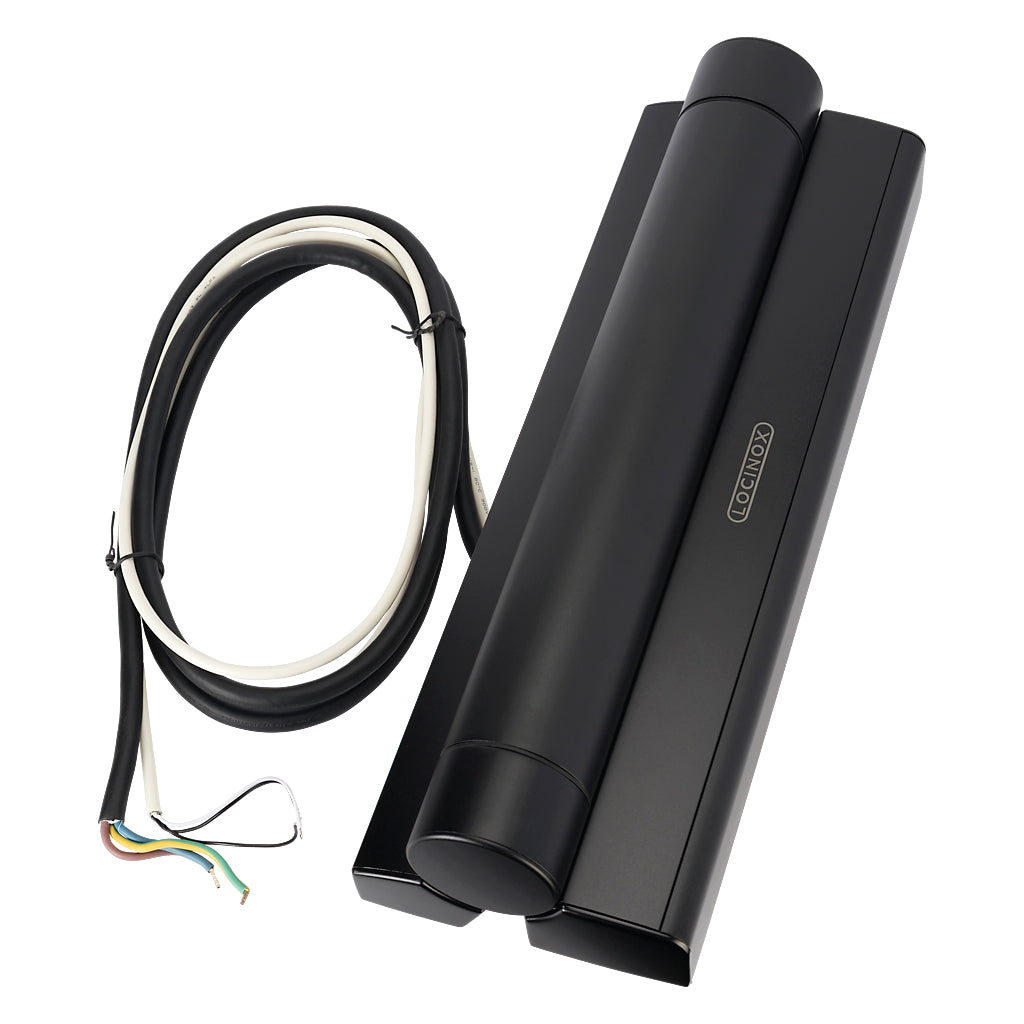

- 2m cable between motor and connection module
- Compact and vandal-proof design
- Configuration via app
- Tested up to 500.000 cycles
- EN16005 Compliant
Specifications
weight: 0.0 kg
length: 398.0mm
width: 128.0mm
depth: 82.0mm
Product Documentation
LOCMAGNUS1 Product Dimensions
