Description

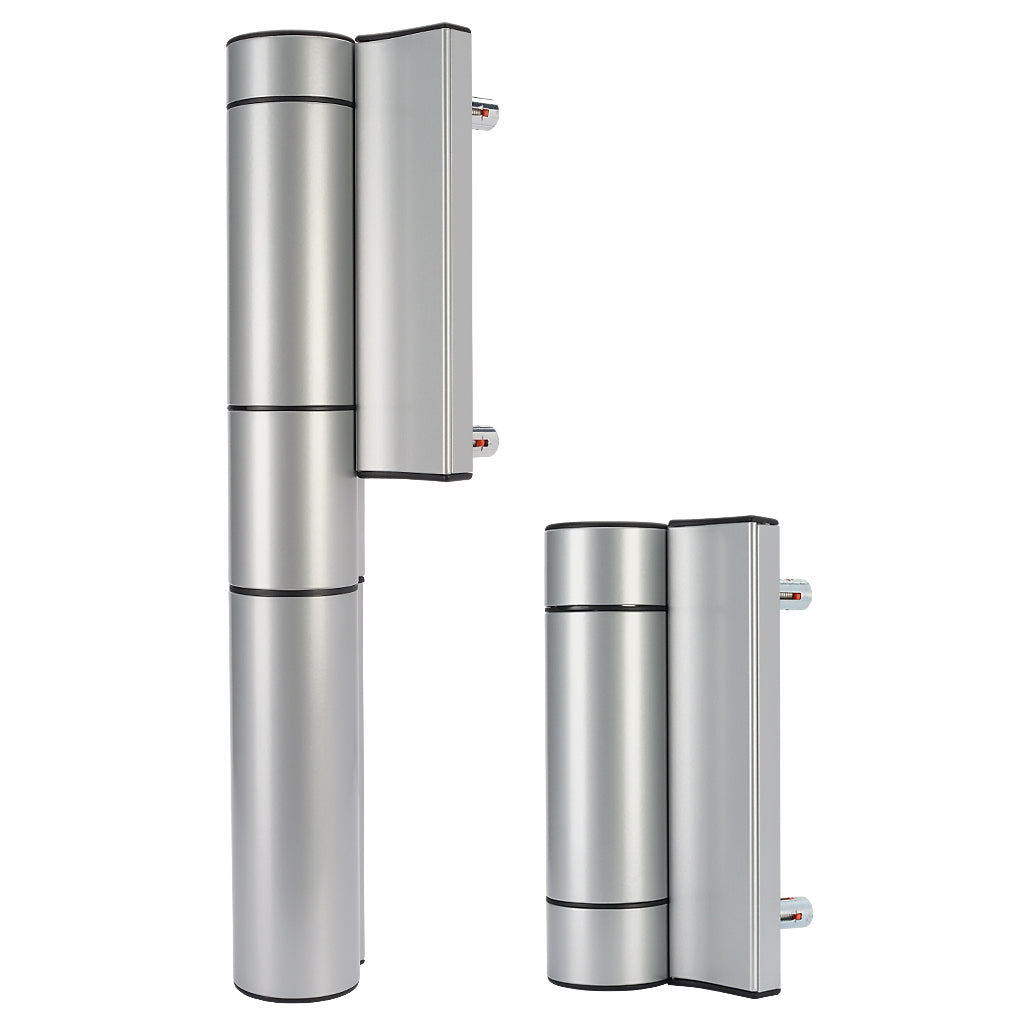

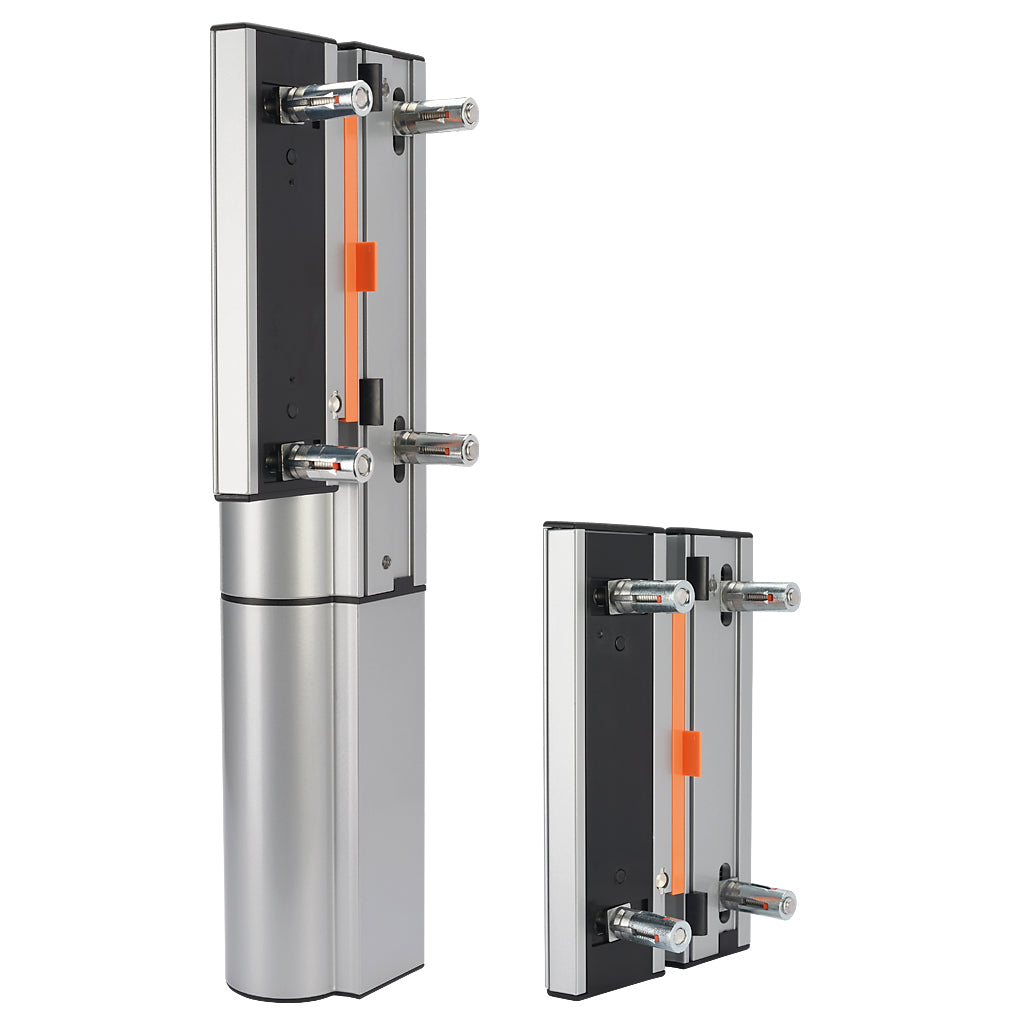

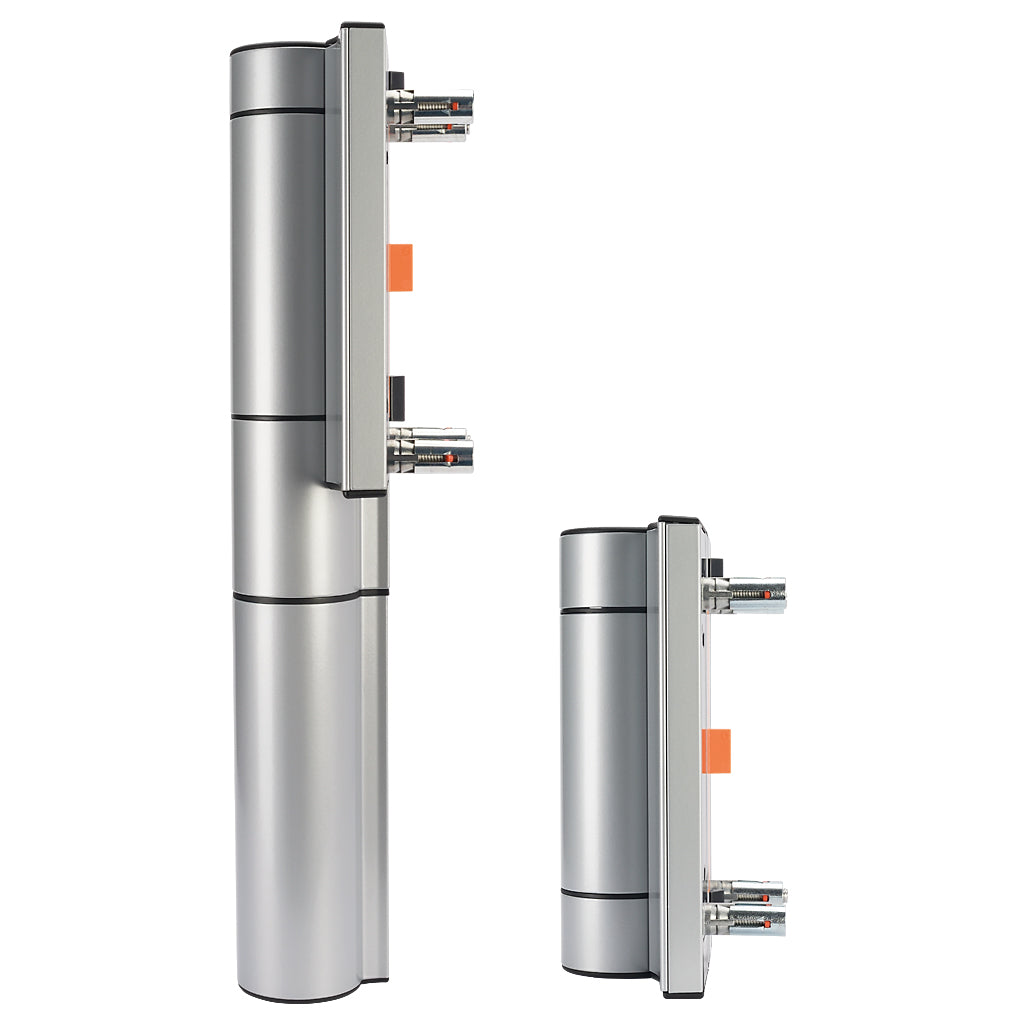

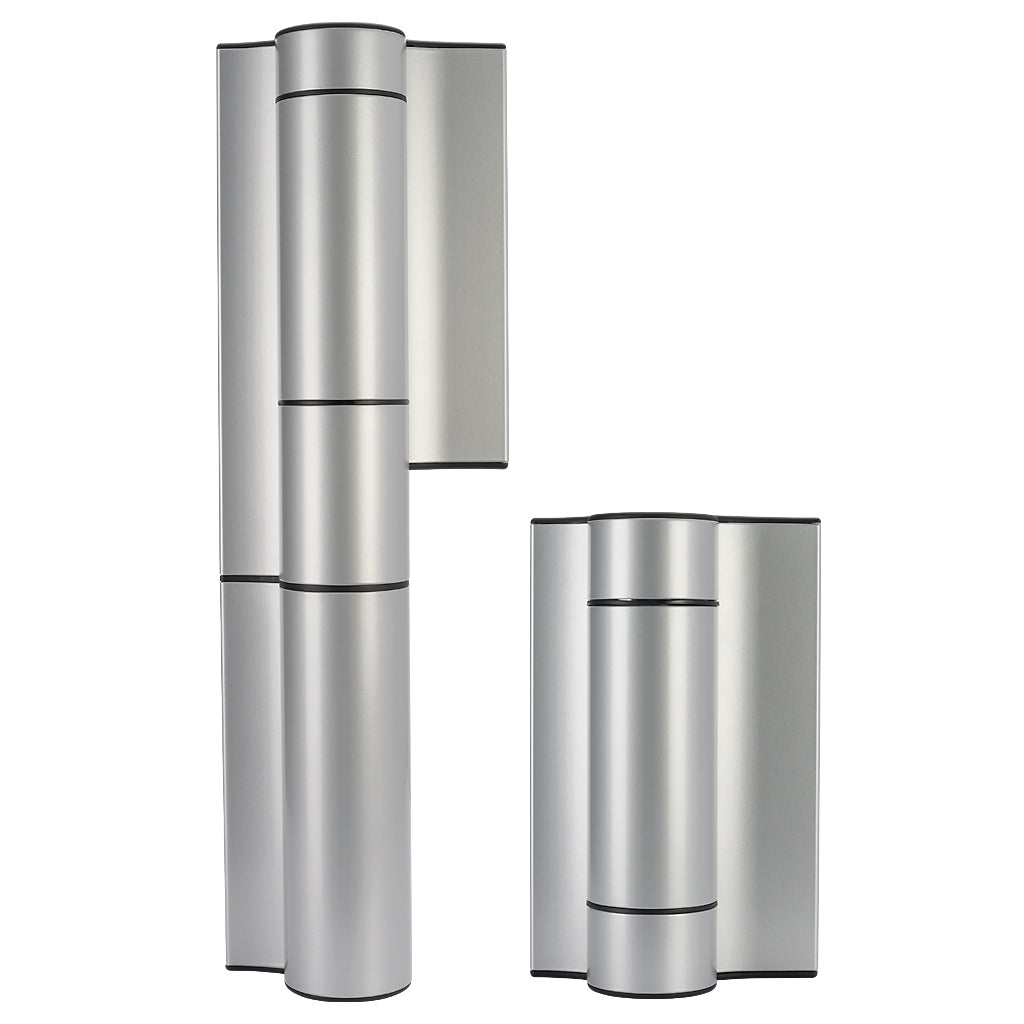

Locinox Mammoth HD - 2 Second generation Hydraulic 180° Gate Closer & Hinge In One Silver
This heavy-duty gate closer and hinge in one is fit to close the heaviest gates. The hydraulically damped Mammoth in combination with the powerful self-closing Raptor hinge is the perfect solution to close gates up to 200 kg and 2000 mm wide. Both hinges are equipped with double bearings which guarantee an extremely smooth functioning. The Active Thermal System guarantees a constant closing speed, unaffected by weather conditions. The Raptor hinge is included.
- Vandal-resistant
- Easy mounting with Quick-Fix
- Powder-coated aluminium housing
- 2-dimensional adjustment: 2 x 20 mm, width and height
- Closing speed adjustment unaffected by temperature fluctuations
- Aesthetic design
- Reversible – suitable for left- and right-opening gates
- Self-closing hinge with patented hydraulic damping
- Easy to open: Max. 32 Nm
Specifications
weight: 5.7 kg
length: 405.0mm
width: 126.0mm
depth: 68.0mm
Product Documentation
LOCMAMMHDS-2 Data Sheet
