Description

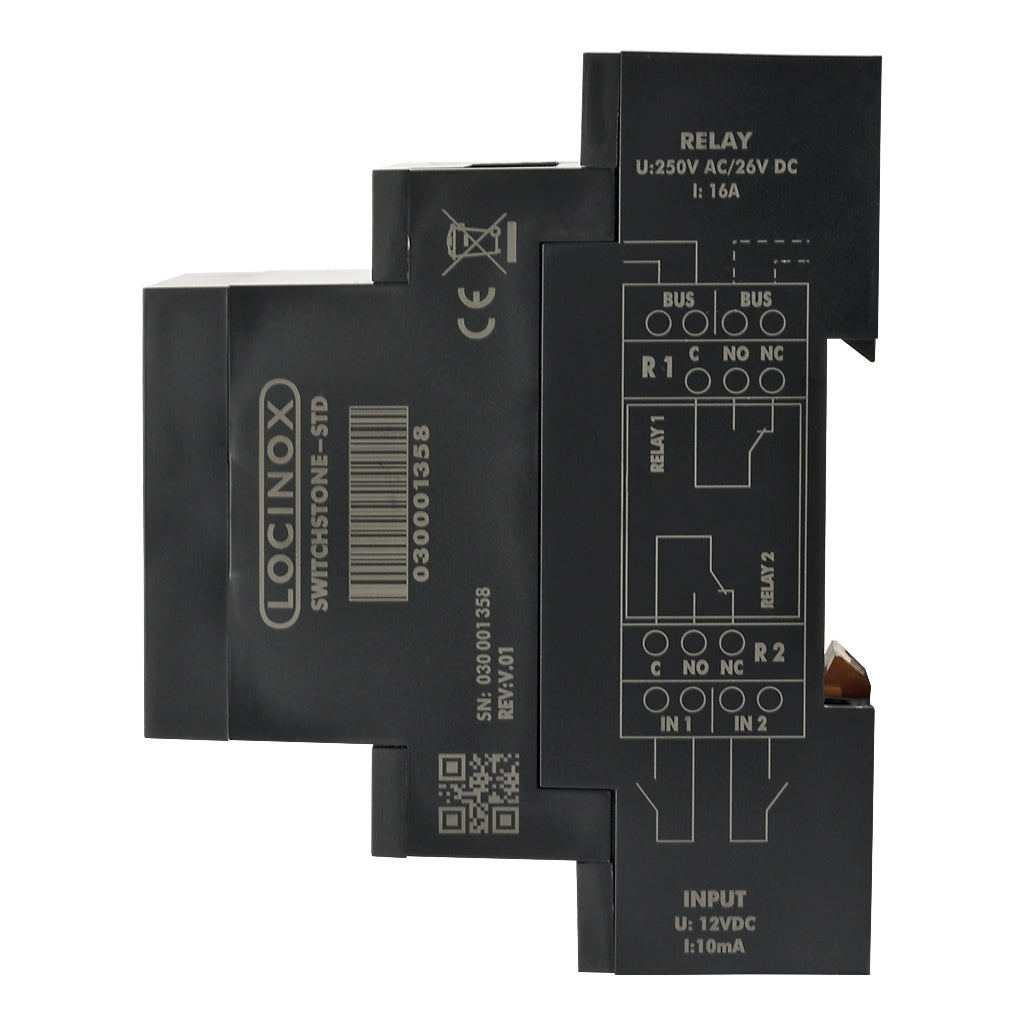

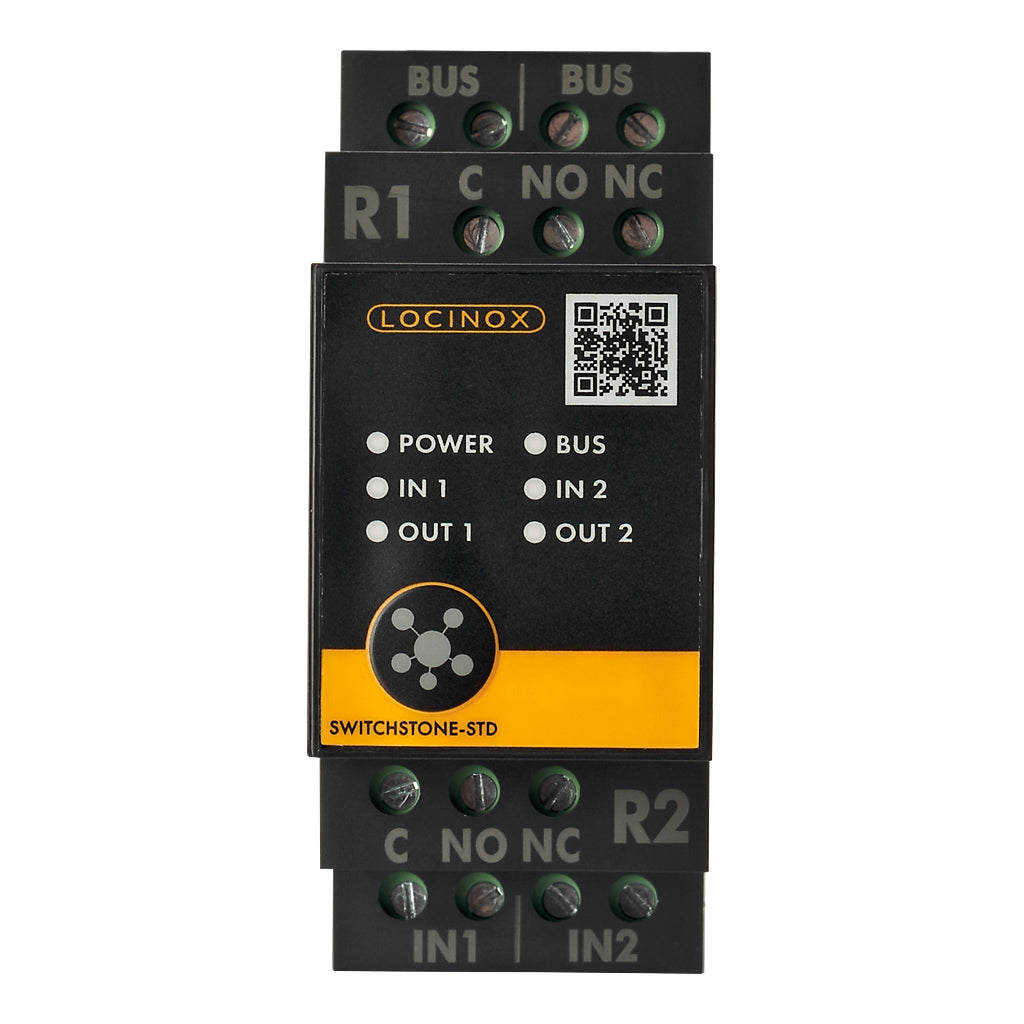

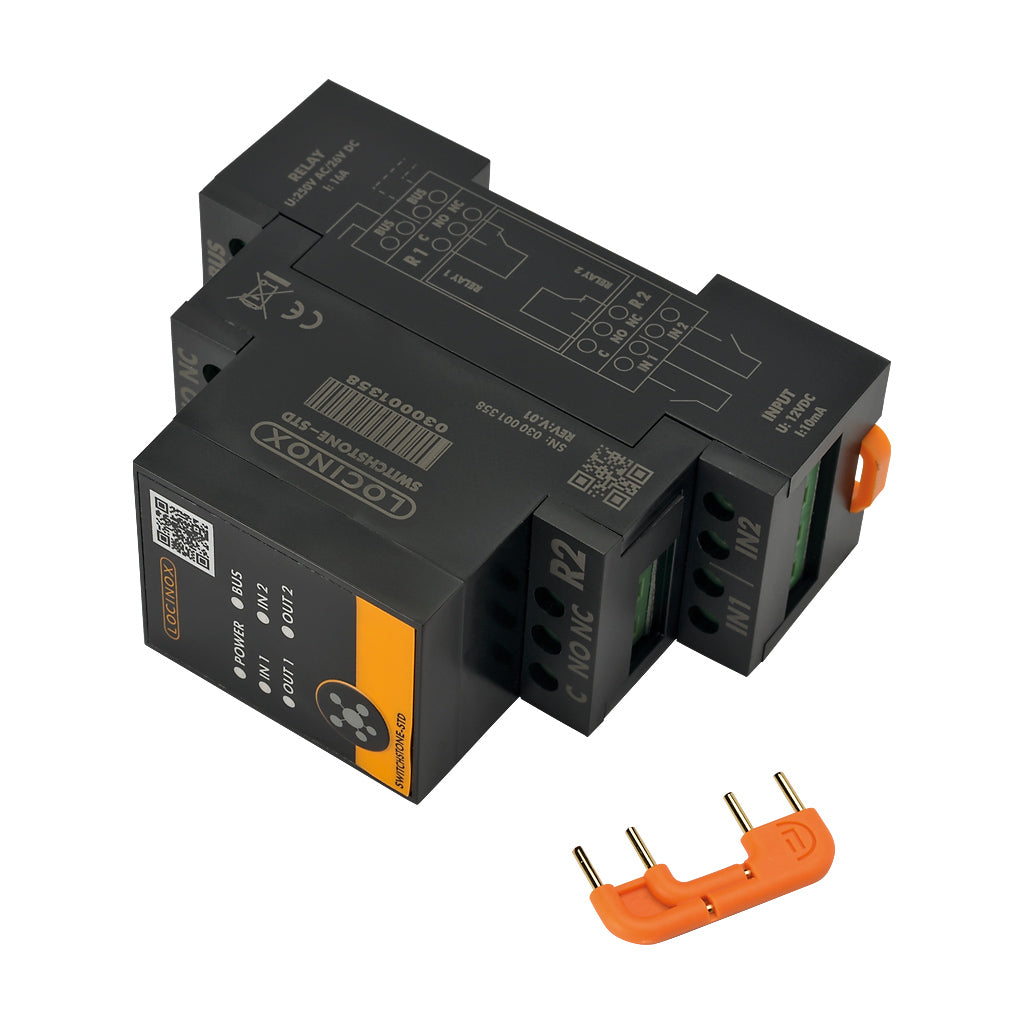

Developed to work in combination with the SlimStone-X keypad. Ensures maximum security thanks to 2 external relays, both with a Common, Fail Open and Fail Close contact. These relays are capable of switching voltages up to 250V AC/26V DC allowing them to be used in a wide range of applications including switching lighting.
Free exit functionality can be easily implemented using the 2 inputs on the module.
- Includes 2 250V AC/26V DC relays, each with COM, Fail Open and Fail Close contact
- Long range secure 2-wire communication with SlimStone-X, up to 300m distance
- Auto back up functionality
- DIN-rail mountable
- Tested from -30 up to +85° Celsius
- Relay switching duration adjustable between pulse & timer mode (500ms - 99s)
- Current: maximum 0.07 A
- Consumption: maximum 1.7W
- This is a Relay not a Power Supply - To be used in conjunction with the Powerstone Power Supply & Slimstone X Keypads
Specifications
weight: 0.15 kg
Product Documentation
LOCPS8 Product Dimensions
