Description
V2 Ursus Hydraulic Swing Gates Kit Up To 4m
Kit Includes:-

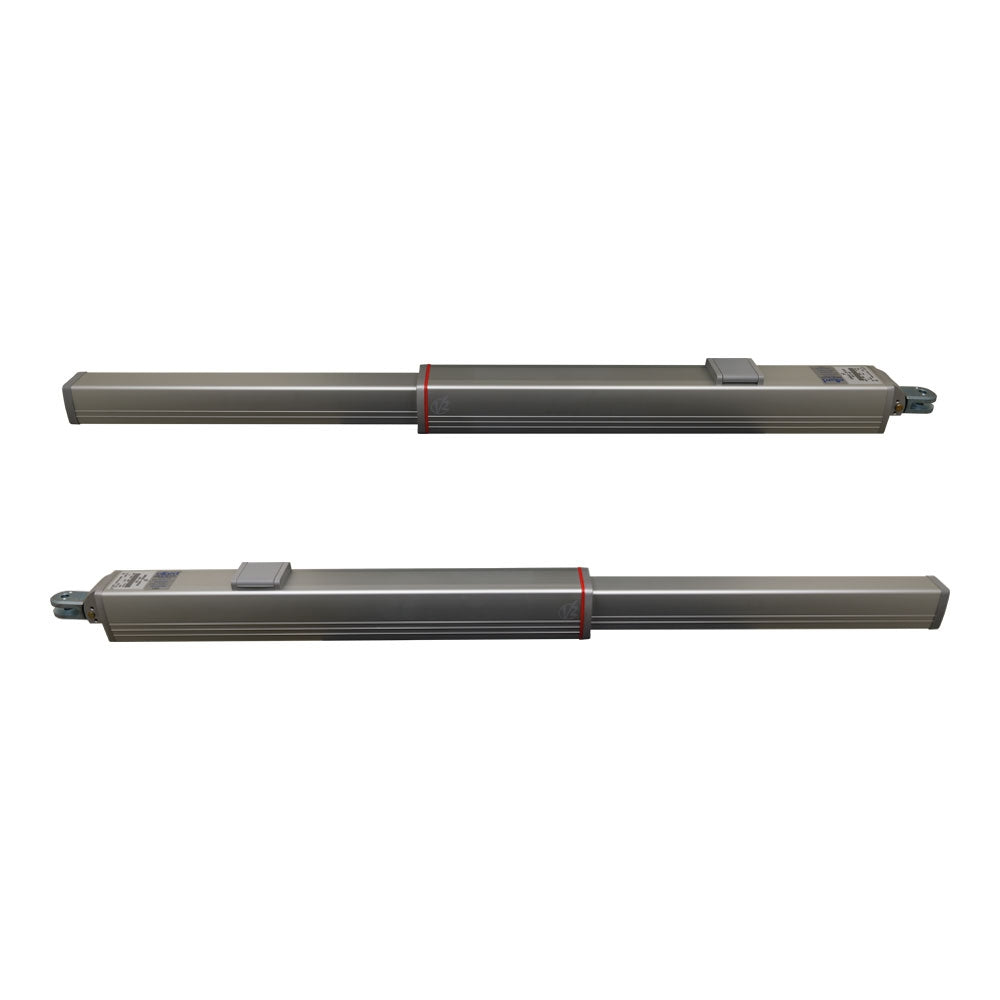

2 Hydraulic Arms
2 Manual Release Keys
1 Control Unit
1 Pair of Photocells
2 Remote Controls
1 Receiver Card
A powerful, intensive usage gate opening system.
● 100% duty rated Hydraulic motors with digital controller for reliable operation every time.
● 230v motors powered by internal hydraulic pumps with integral slow down in the final stroke phase.
● Gate opening angle up to 110 degrees per leaf.
● Intuitive digital controller for flexible programming options.
Specifications
weight: 28.42 kg
length: 1384.0mm
width: 89.0mm
depth: 71.0mm
gate type: Swing
max gate weight: 700.0kg
max gate width: 4.0m
Product Documentation

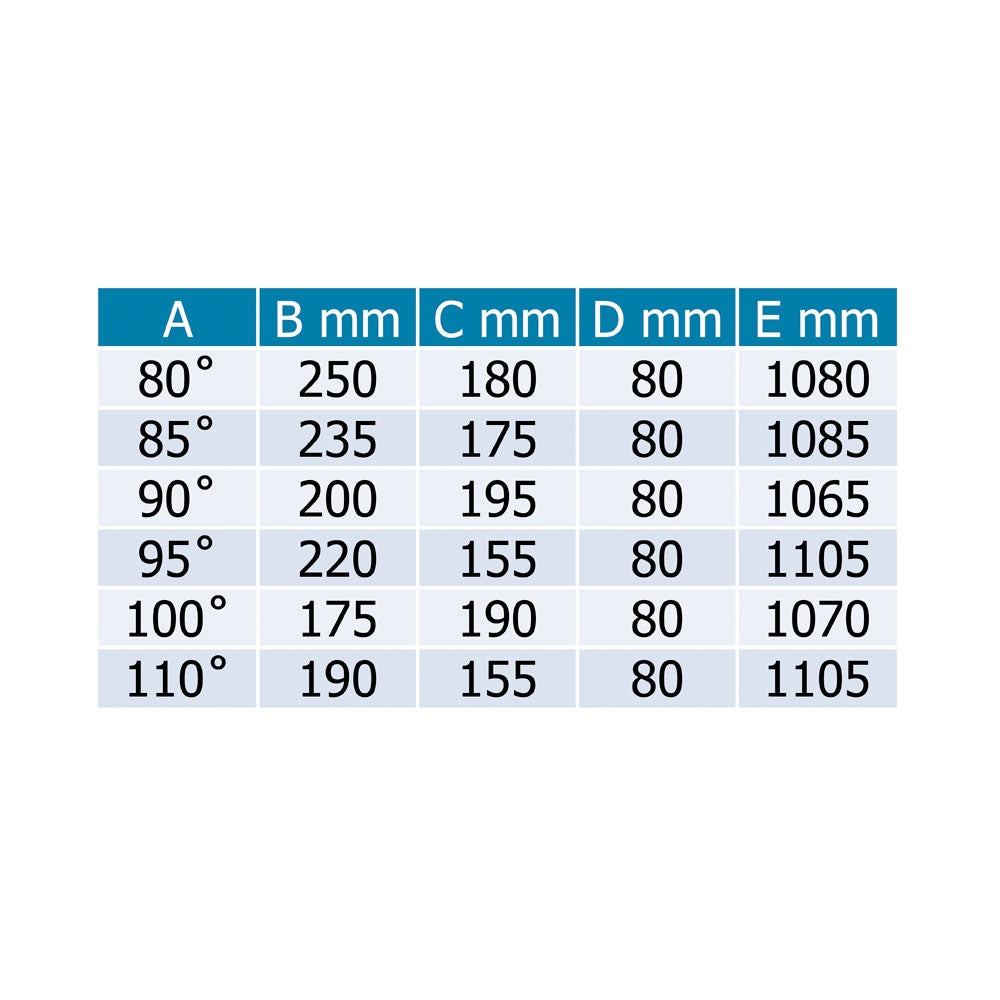

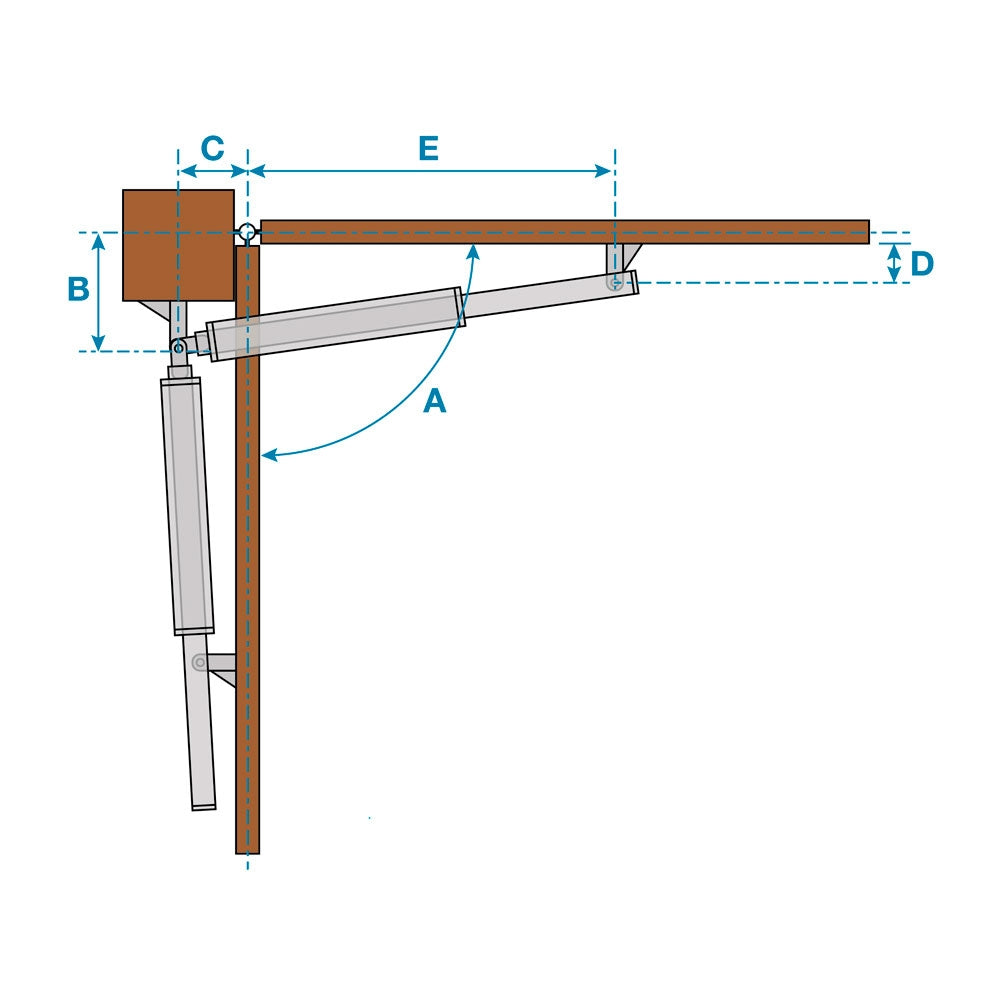

URSUS Product Dimensions
