V2 Easy Top Control Kit For Roller Shutter Doors 230V

V2 Easy Top Control Kit For Roller Shutter Doors 230v.

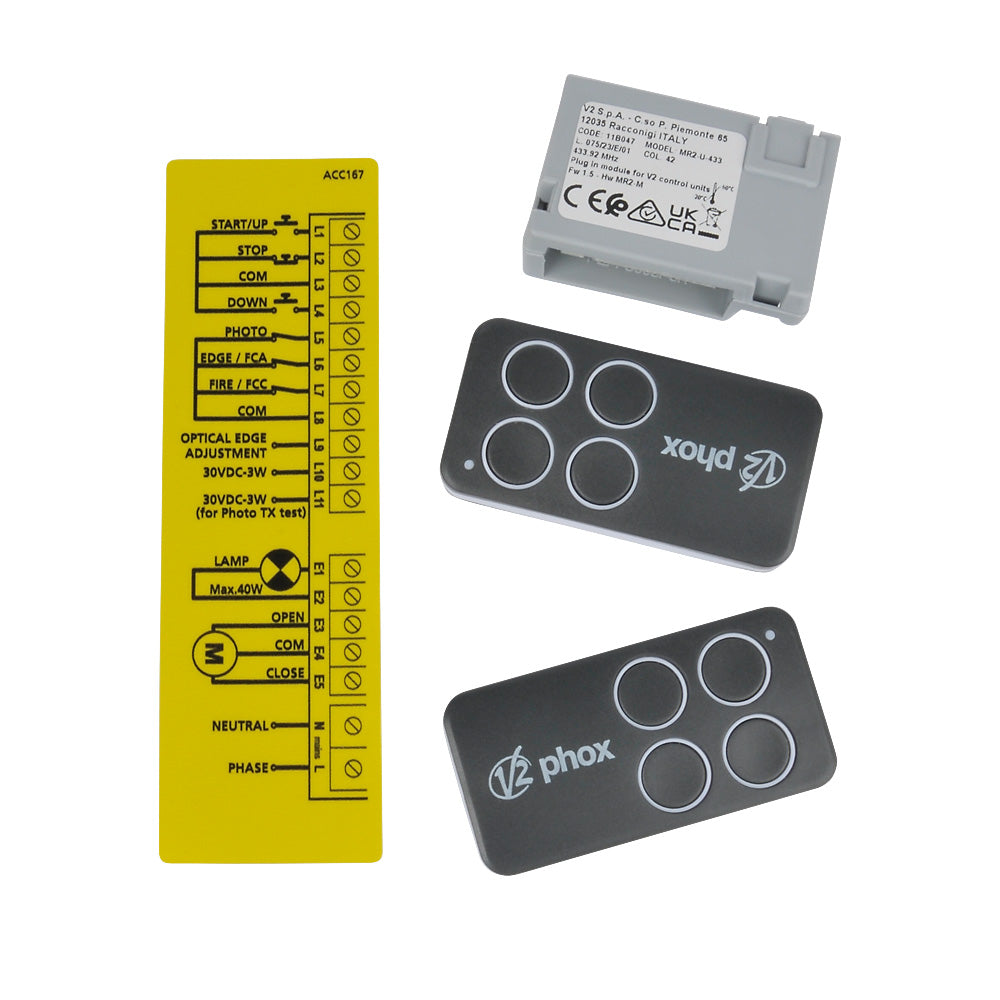

The V2 Easy Top is the perfect control panel for roller shutter doors and allows an installer to fit your shutters with ease. Supplied as a kit containing 2 Phox4 remotes and a MR2 special push button station.

Some of the technical features of the panel include:
> Programming achieved using program button and display.
> 230V power supply for 1 single-phase motor
> Plug-in adaptor for modular radio receiver MR2
> Up, down and stop inputs.
> Up, down, stop and courtesy light controls from transmitter.
> 1 photocell input with self-test function
> 1 mechanical, resistive, or optical-type safety edge input with self-test function
> 1 emergency (fire alarm/alarm) input
> 24V accessory power supply output
> 230V flashing light/courtesy light output.
> Optical-type safety edge power adjustment output
> Plug-in terminal boards
> Monitoring of input status shown by display
