90° Weld Bend To Suit 21.3mm Outside Diameter Tube

Save 38%
Product Code: WB21

Sale price£0.49 Ex VAT
Sale price£0.59 Incl VAT
£0.79 Ex VAT
£0.95 Incl VAT
100+ in stock

£9.95 ex VAT next business day delivery when ordered before 2pm to most of UK. FREE on orders over over £300 ex VAT. View full delivery terms.

Pickup available at DC Iron Newcastle upon Tyne

Usually ready in 1 hour

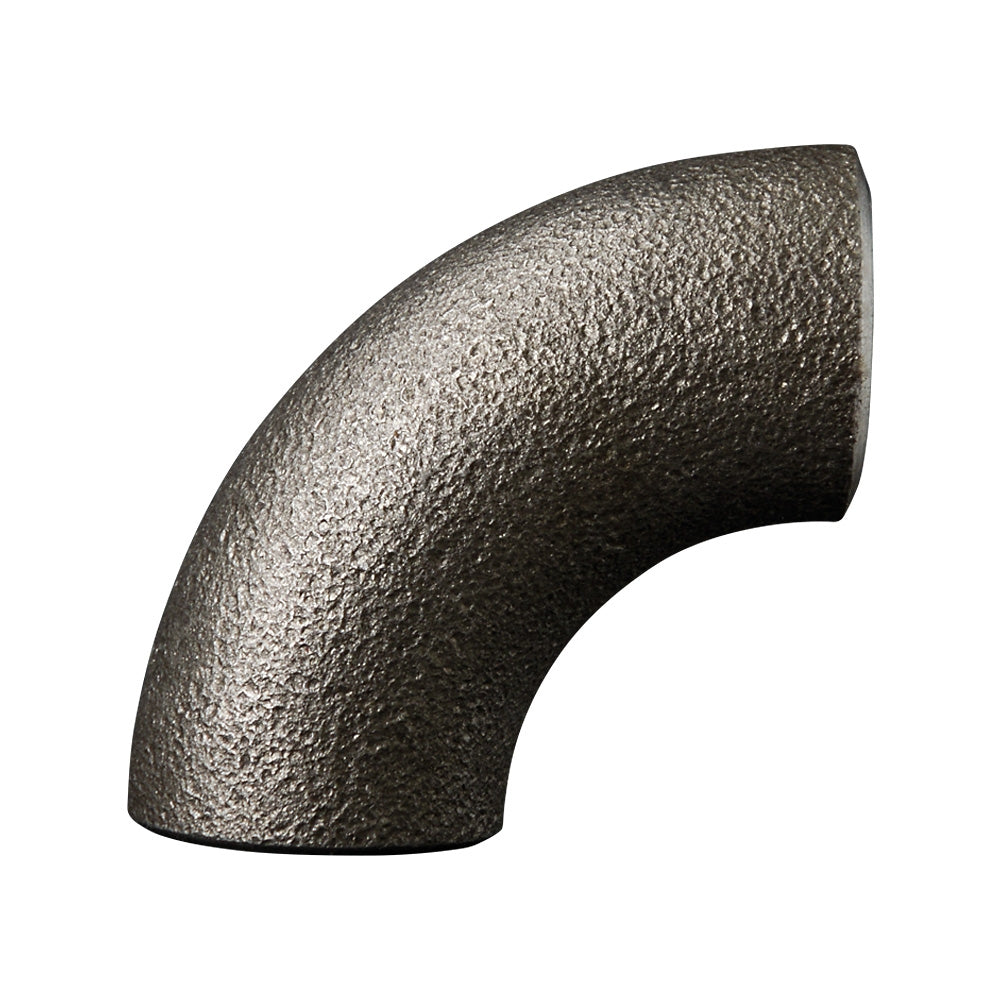

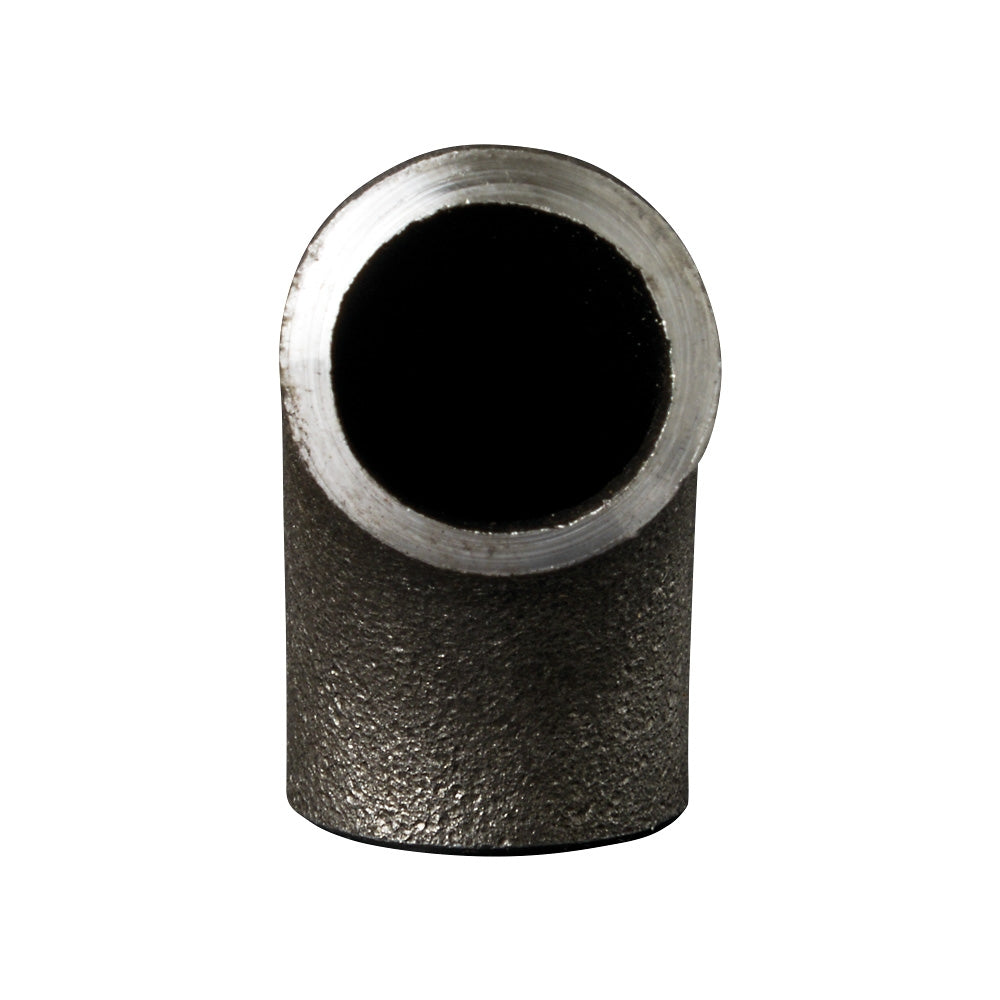

90° Weld bend to suit 21.3mm tube

Outside Diameter: 21.3mm
Nominal Bore: 15mm
Wall Thickness: 2mm
Radius: 27.5mm

Self colour and prepared for welding

Typical uses are for handrailing, street furniture, protection barriers and all types of tubular constructions.

Smooth steamlined finish allows installation in any environment whether the structure is painted, galvanised, polyester or powder coated or even chrome plated.

The use of these elbows enables tight bends and curves to be obtained and resolves the problem of either sharp mitred corners or distortion which occurs on tubes when radiused. They provide a neat safe joint which is permanent and strong with the added benefit of chamfered edges for ease of welding.


weight: 0.04 kg
length: 21.3mm
width: 15.0mm
depth: 2.0mm
material: Mild Steel
material finish: Raw Steel

Product Documentation

90Deg Weld Bends Data Sheet

This product is on page 168 of Catalogue 27
