Description

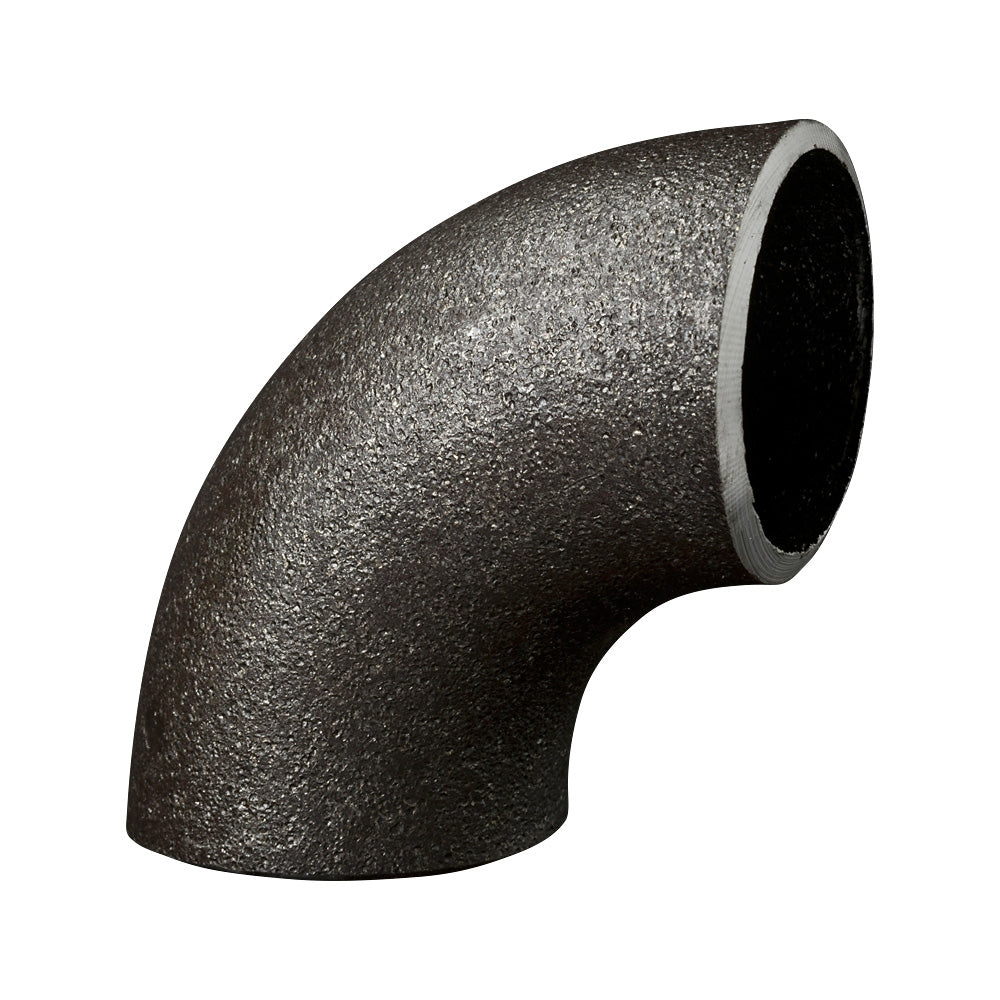

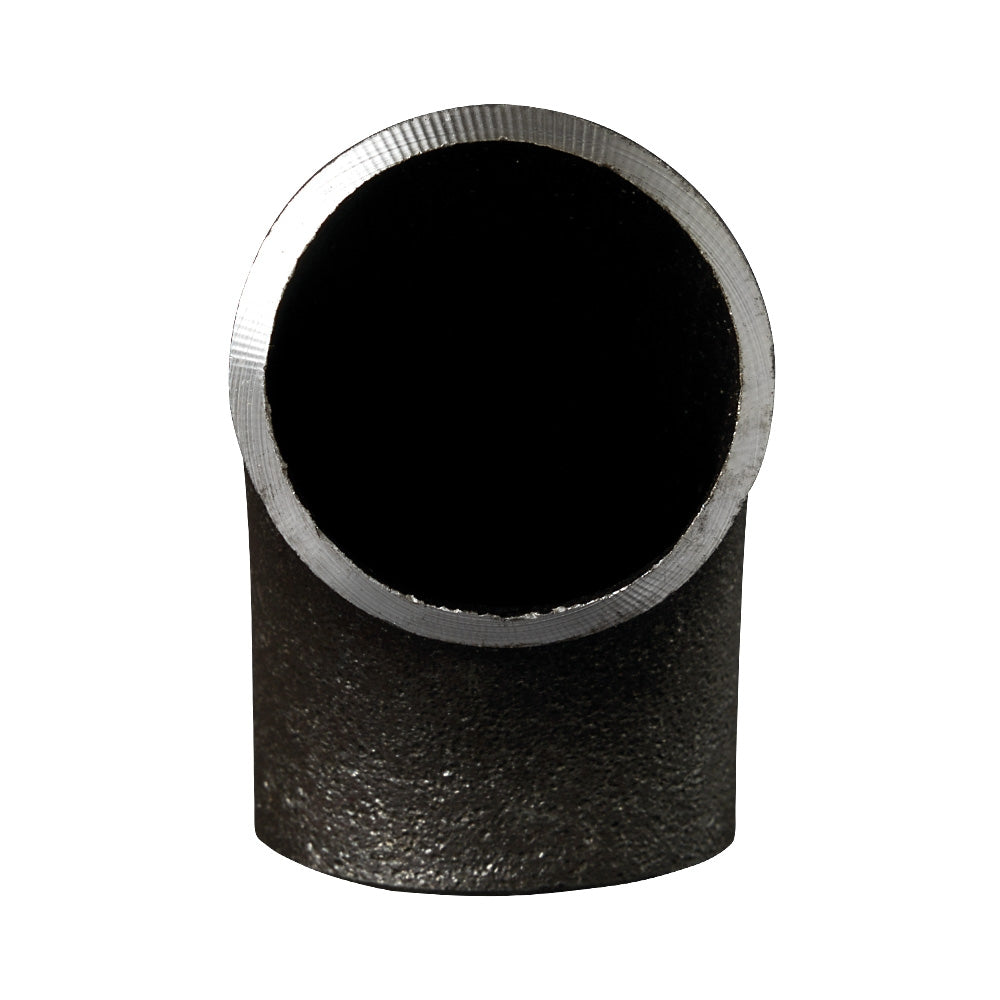

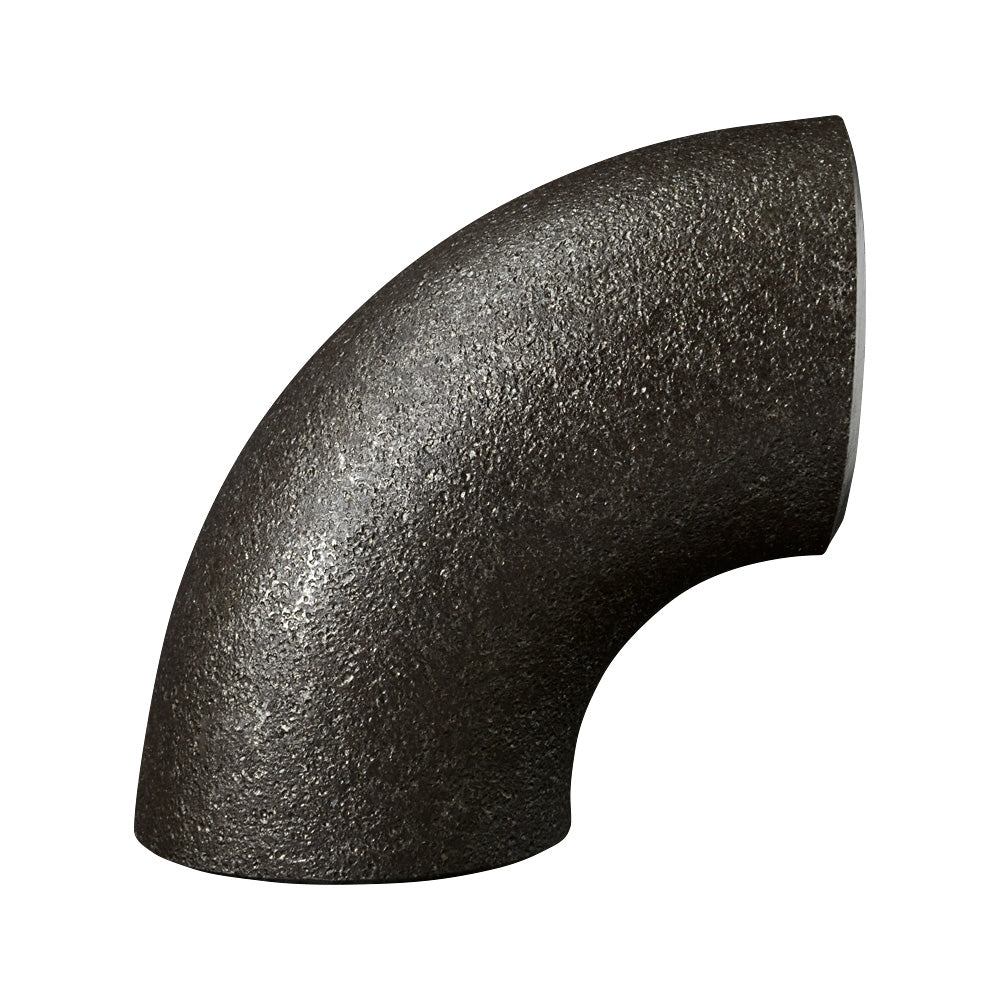

90° Weld bend to suit 42.4 mm tube
Outside Diameter: 42.4mm
Nominal Bore: 32mm
Wall Thickness: 2.6mm
Radius: 47.5mm
Self colour and prepared for welding.
Typical uses are for handrailing, street furniture, protection barriers and all types of tubular constructions.
Smooth steamlined finish allows installation in any environment whether the structure is painted, galvanised, polyester or powder coated or even chrome plated.
The use of these elbows enables tight bends and curves to be obtained and resolves the problem of either sharp mitred corners or distortion which occurs on tubes when radiused. They provide a neat safe joint which is permanent and strong with the added benefit of chamfered edges for ease of welding.
