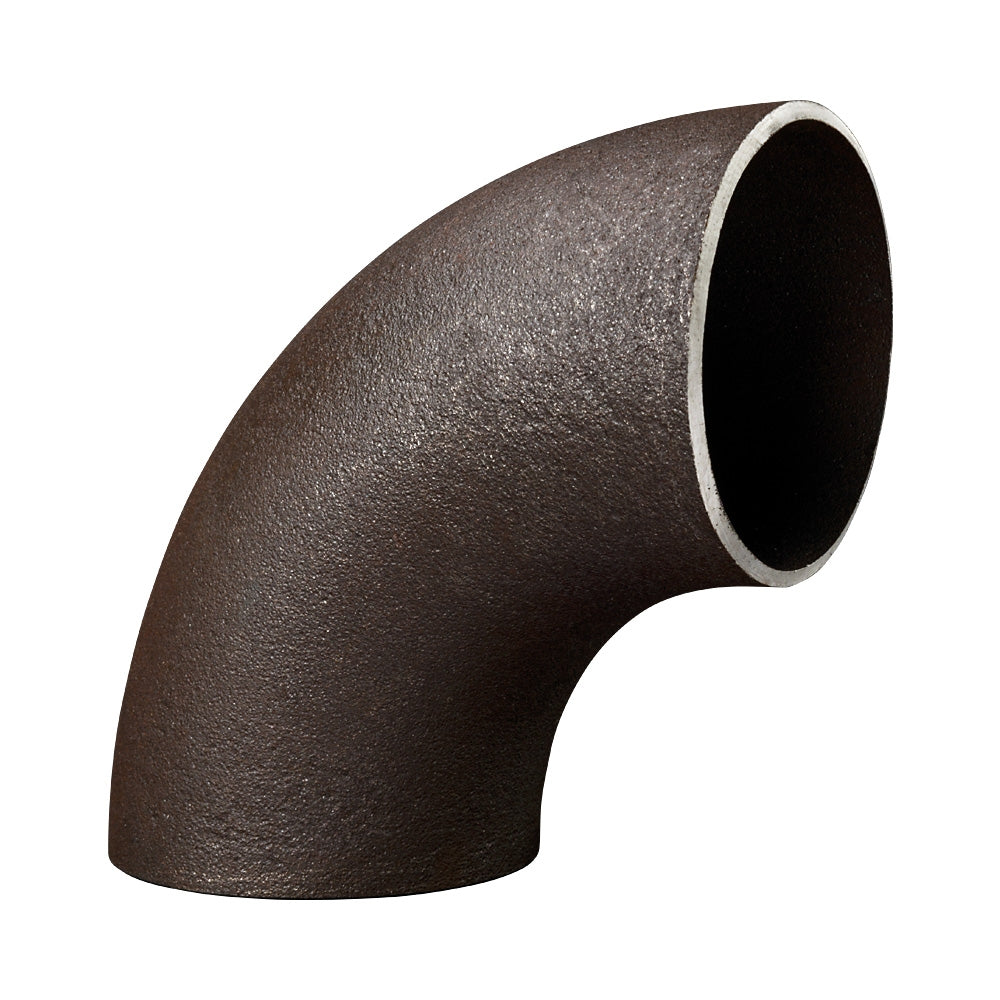

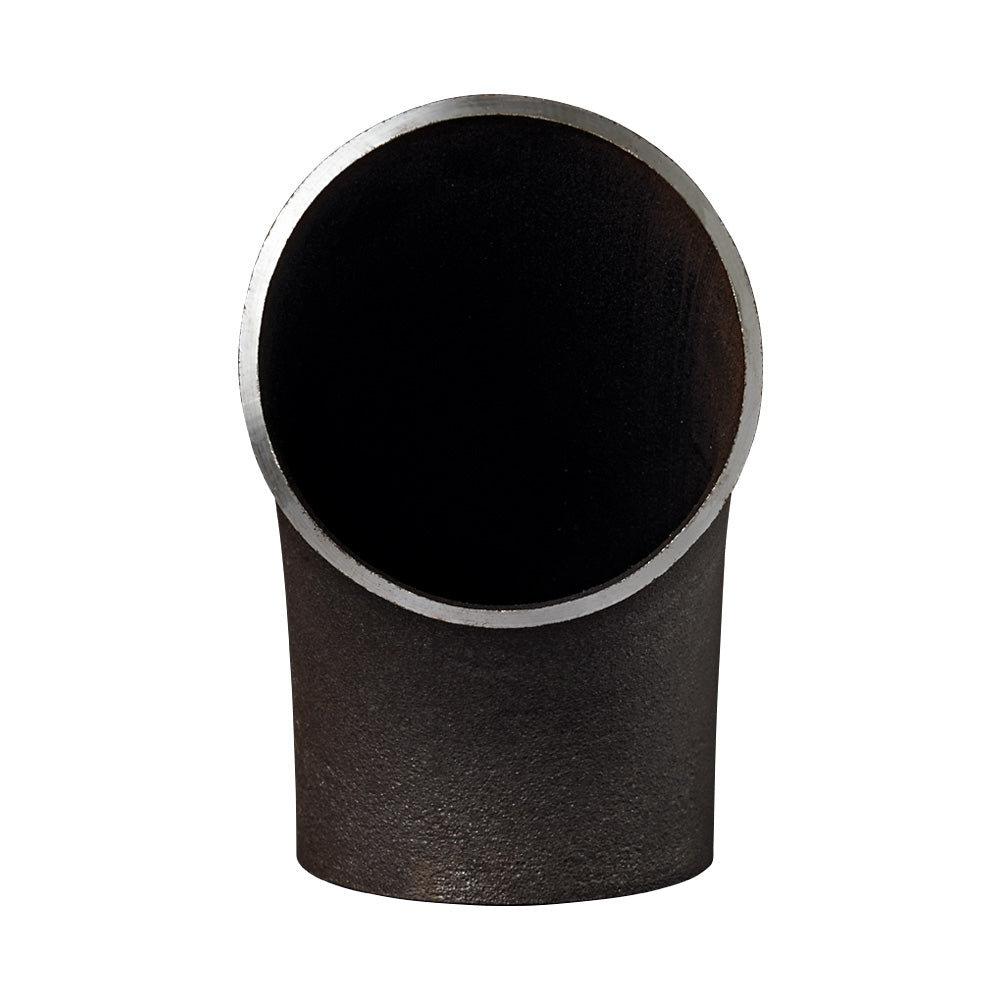

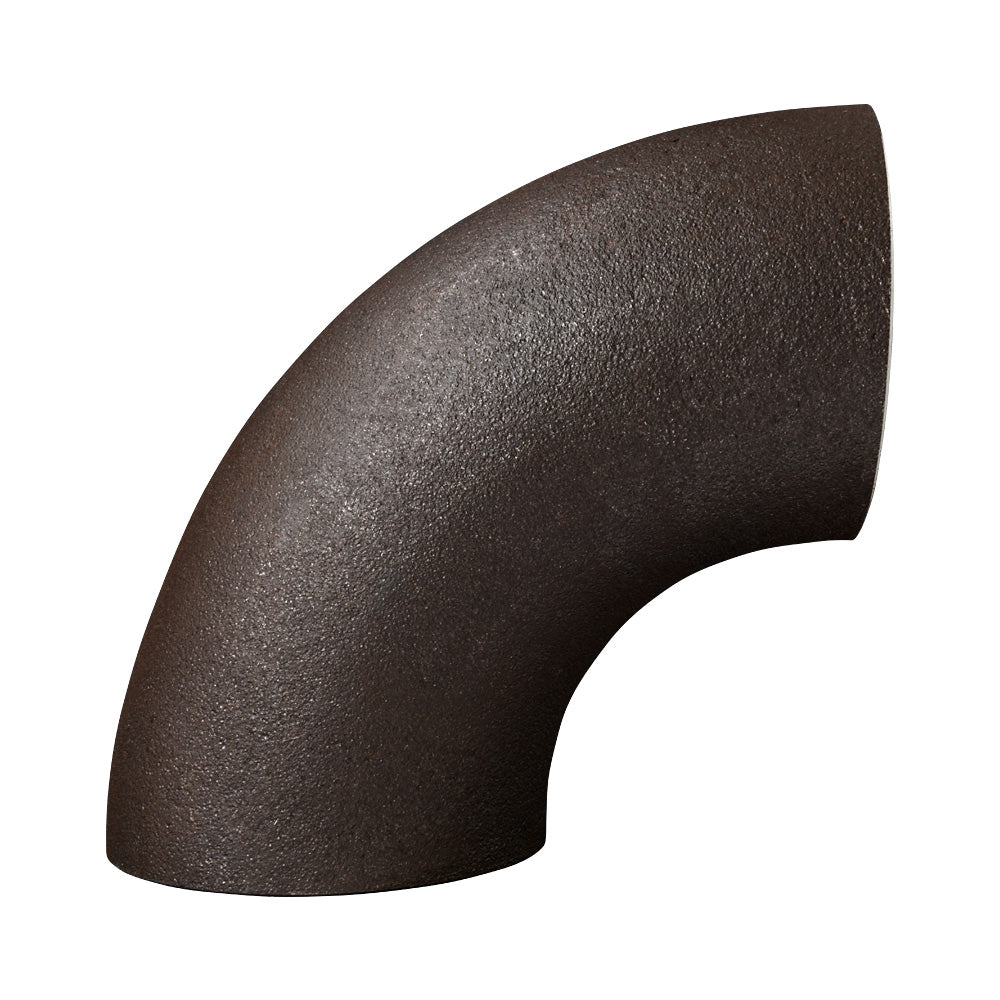

90° Weld Bend To Suit 76.1mm Outside Diameter Tube

90° Weld bend to suit 76.1 mm tube

Outside Diameter: 76.1mm
Nominal Bore: 65mm
Wall Thickness: 2.9mm
Radius: 95mm

Self colour and prepared for welding.

Typical uses are for handrailing, street furniture, protection barriers and all types of tubular constructions.

Smooth steamlined finish allows installation in any environment whether the structure is painted, galvanised, polyester or powder coated or even chrome plated.

The use of these elbows enables tight bends and curves to be obtained and resolves the problem of either sharp mitred corners or distortion which occurs on tubes when radiused. They provide a neat safe joint which is permanent and strong with the added benefit of chamfered edges for ease of welding.
