Description

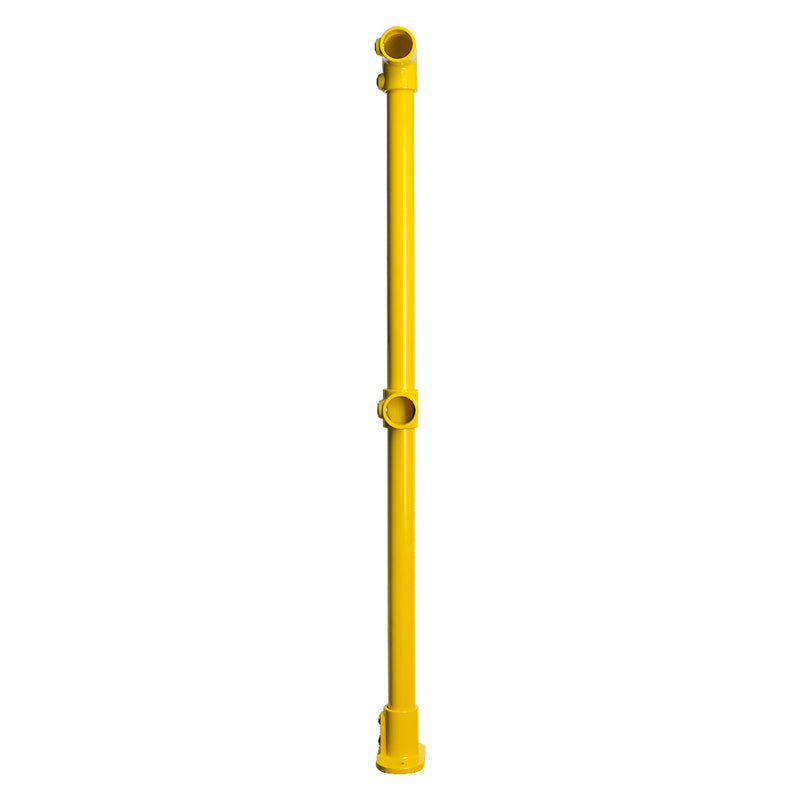

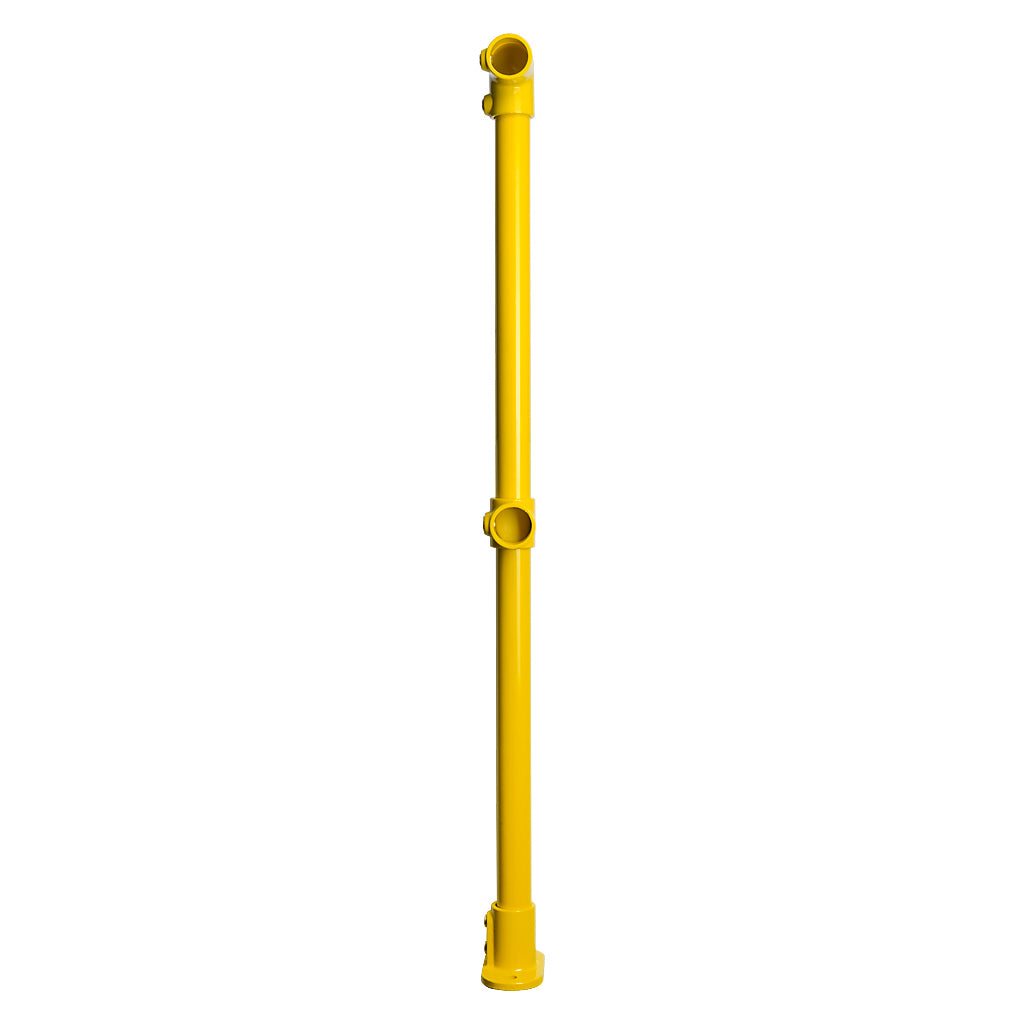

Key Clamp End Post Kit to suit 42.4mm tube.
- Yellow Powder Coated RAL1023.
- Overall height 1100mm with a mid rail height of 550mm.
- Supplied loose and will need to be assembled.
- Comprises of Y132C Oval Base, Y101C Short Tee, Y125C 90 Degree Elbow and 1060mm length of tube.
** Although powder coated tubes and fittings can be used in external situations, we recommend they are mainly used for internal applications **
The brass-coated grub screws are primarily used to create a unique finished appearance, and they will rust if installed outdoors.
If the fittings are used in an external environment, the internal threaded areas and the grub screws must be coated with our matching yellow spray paint to provide additional protection against weather exposure.
To maintain use our Deluxe Spray Paint in Traffic Yellow Gloss (RAL1023) for touch-ups and custom applications.
Specifications
weight: 4.6 kg
length: 1100.0mm
width: 42.4mm
depth: 42.4mm
material: Mild Steel
material finish: Powder Coated
suit tube: 42.4mm
