Description

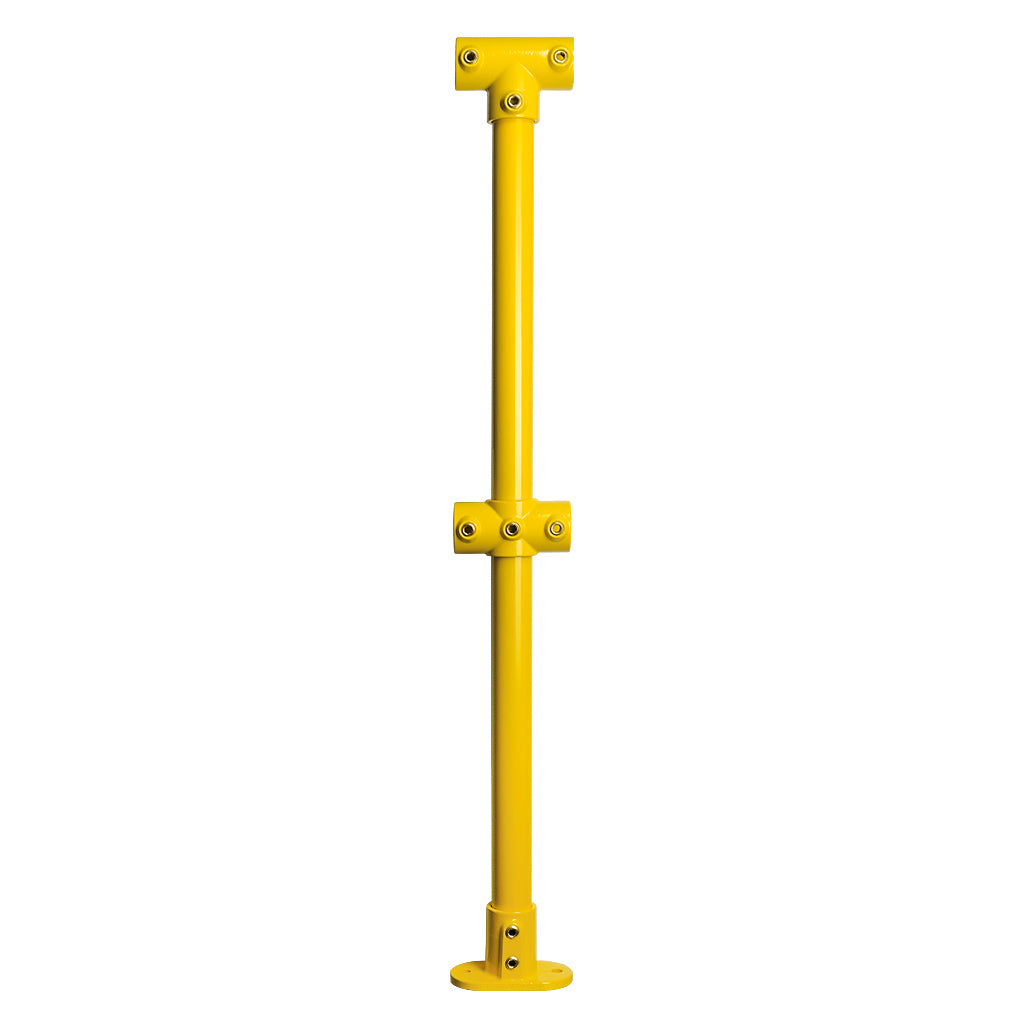

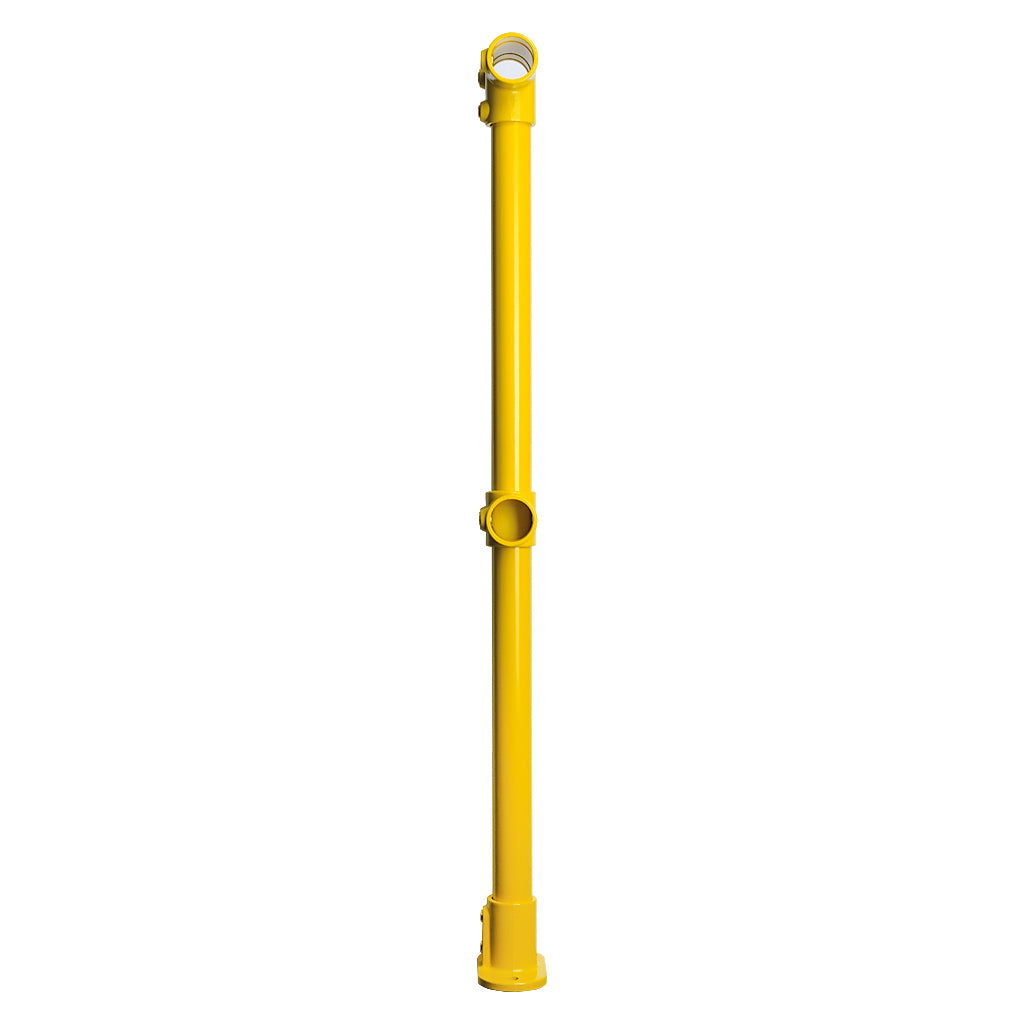

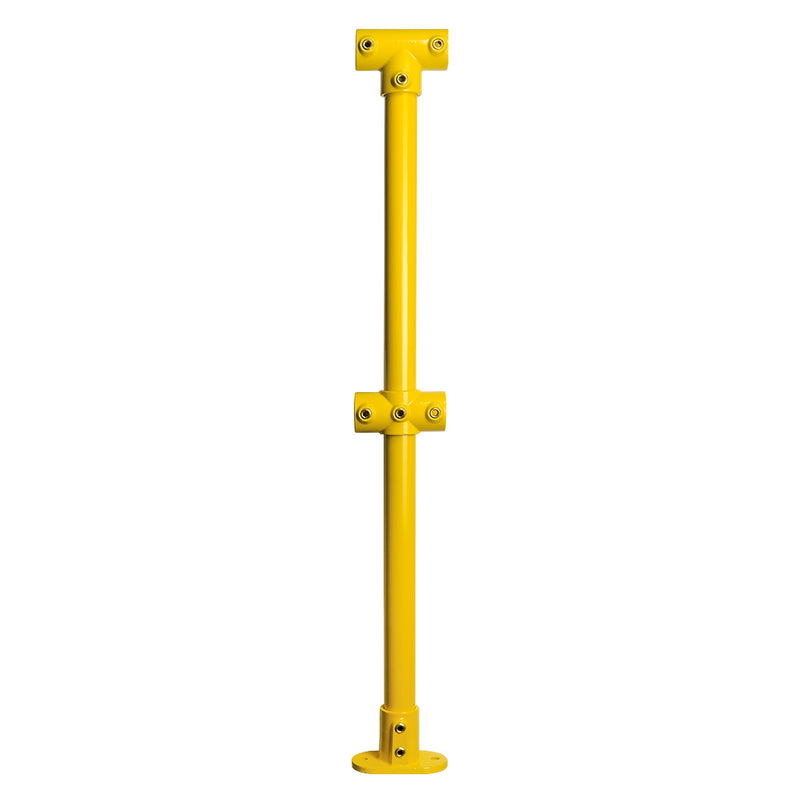

Key Clamp Mid Post Kit to suit 48.3mm tube.
- Yellow Powder Coated RAL1023.
- Overall height 1100mm with a mid rail height of 550mm.
- Supplied loose and will need to be assembled.

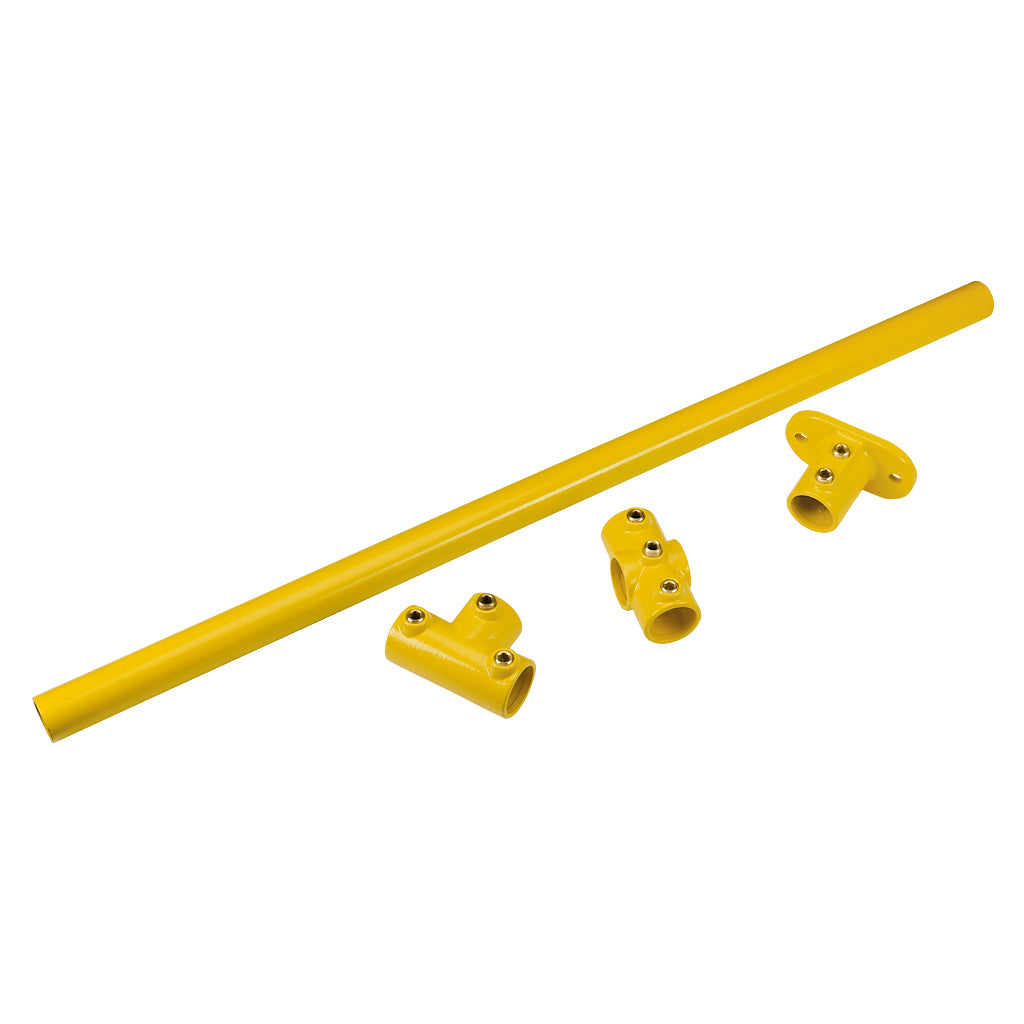

- Comprises of Y132D Oval Base, Y119D 4 Way Cross, Y104D T Piece and 1060mm length of tube.
** Although powder coated tubes and fittings can be used in external situations, we recommend they are mainly used for internal applications **
The brass-coated grub screws are primarily used to create a unique finished appearance, and they will rust if installed outdoors.
If the fittings are used in an external environment, the internal threaded areas and the grub screws must be coated with our matching yellow spray paint to provide additional protection against weather exposure.
To maintain use our Deluxe Spray Paint in Traffic Yellow Gloss (RAL1023) for touch-ups and custom applications.
Specifications
weight: 6.2 kg
length: 1100.0mm
width: 48.3mm
depth: 48.3mm
material: Mild Steel
material finish: Powder Coated
suit tube: 48.3mm
Product Documentation
Powder Coating Disclaimer
