Description

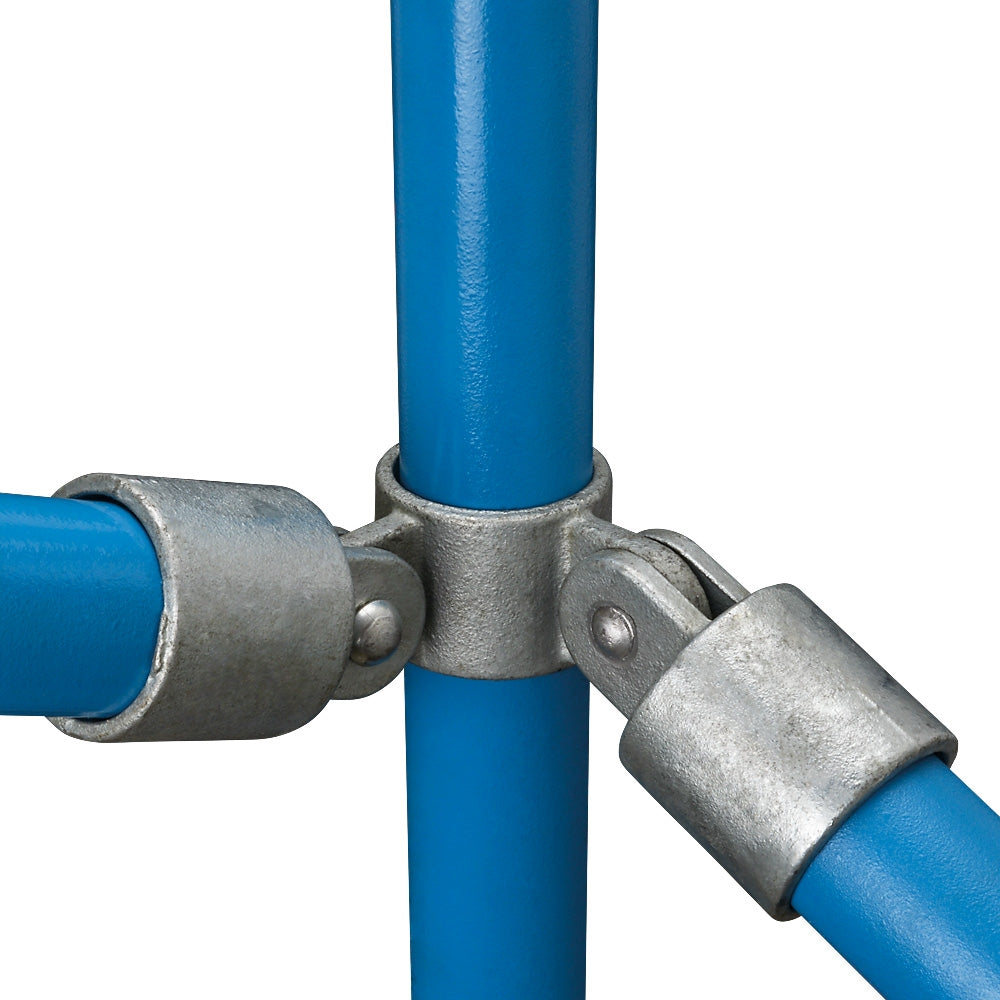

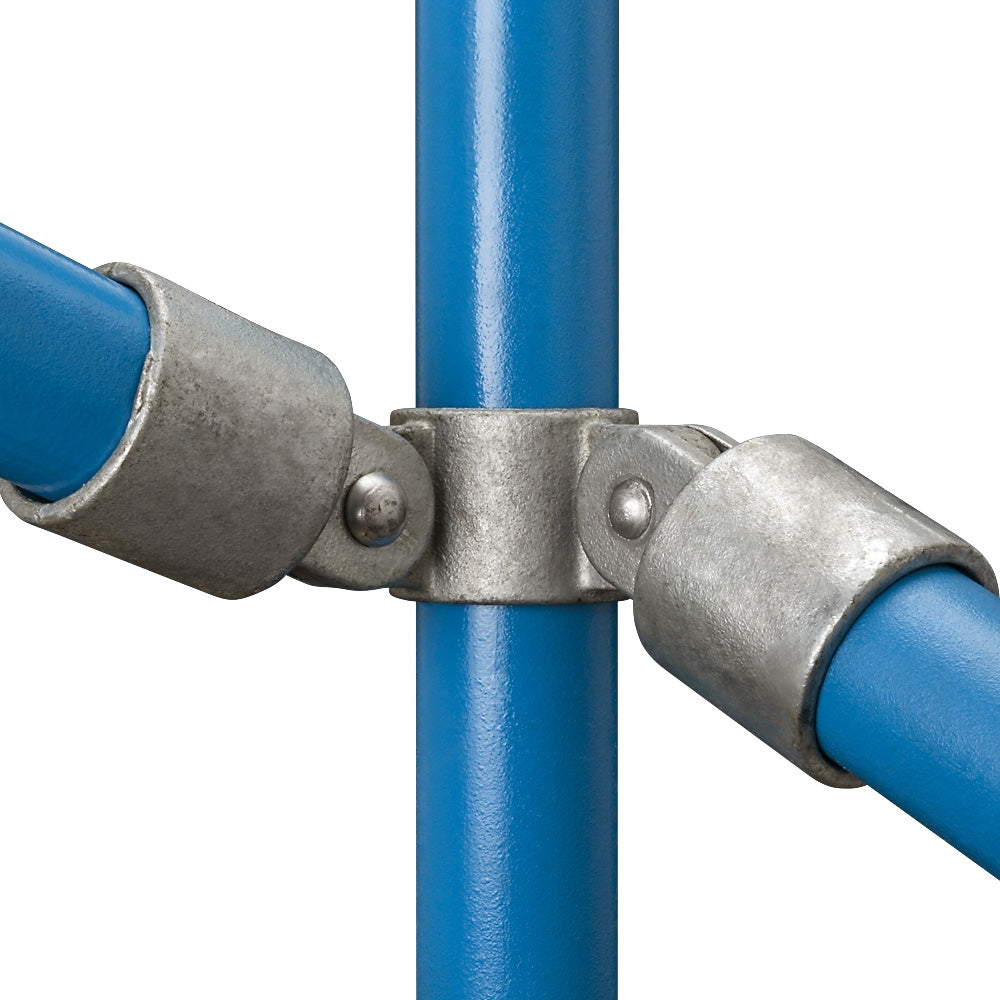

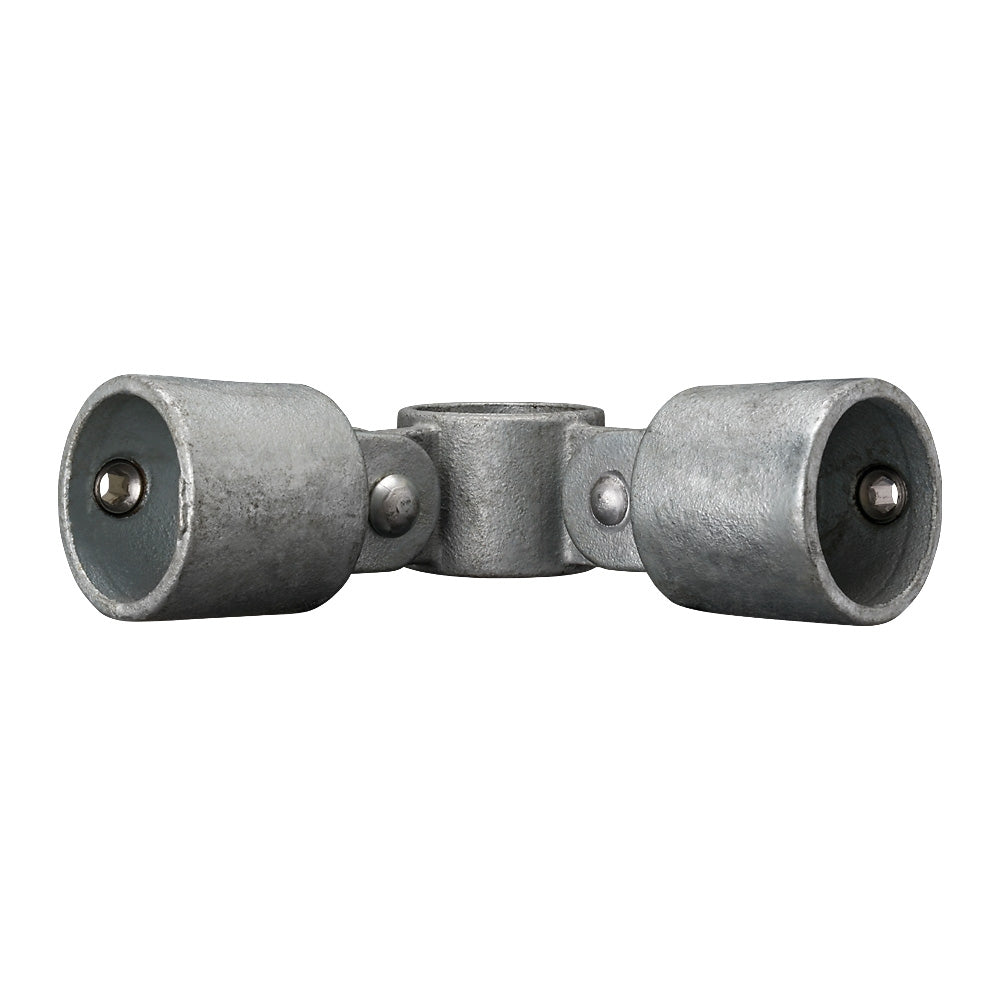

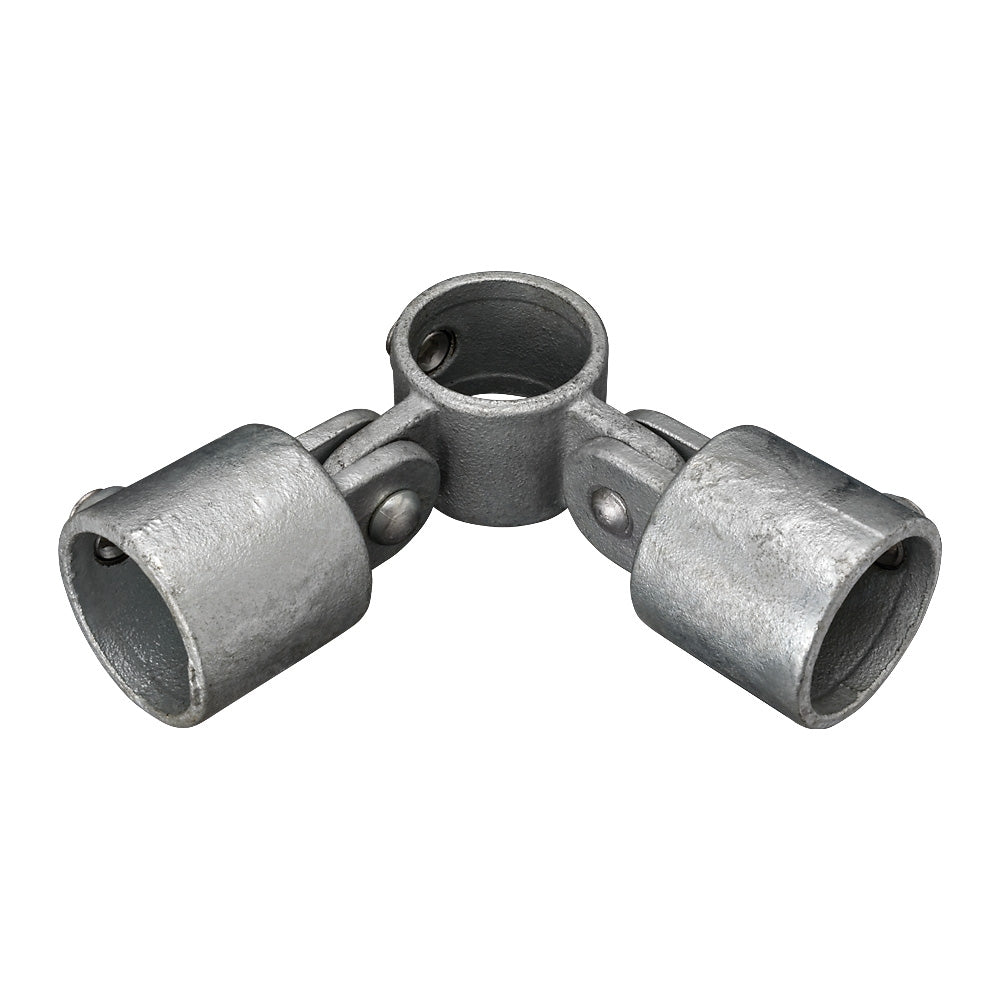

Corner double swivel connector 90°.
To suit 42.4mm tube.
Normally used for difficult applications where angles cannot be accommodated by adjustable angle fittings.
Each swivel has a travel of approximately 85° from the horizontal in both vertical directions. Riveted assembly which can be supplied separately KC168MC and KC173FC.
Specifications
weight: 1.4 kg
length: 68.0mm
width: 49.0mm
material: Malleable Iron
material finish: Galvanised
Product Documentation
KC168 Data Sheet
